Sedan

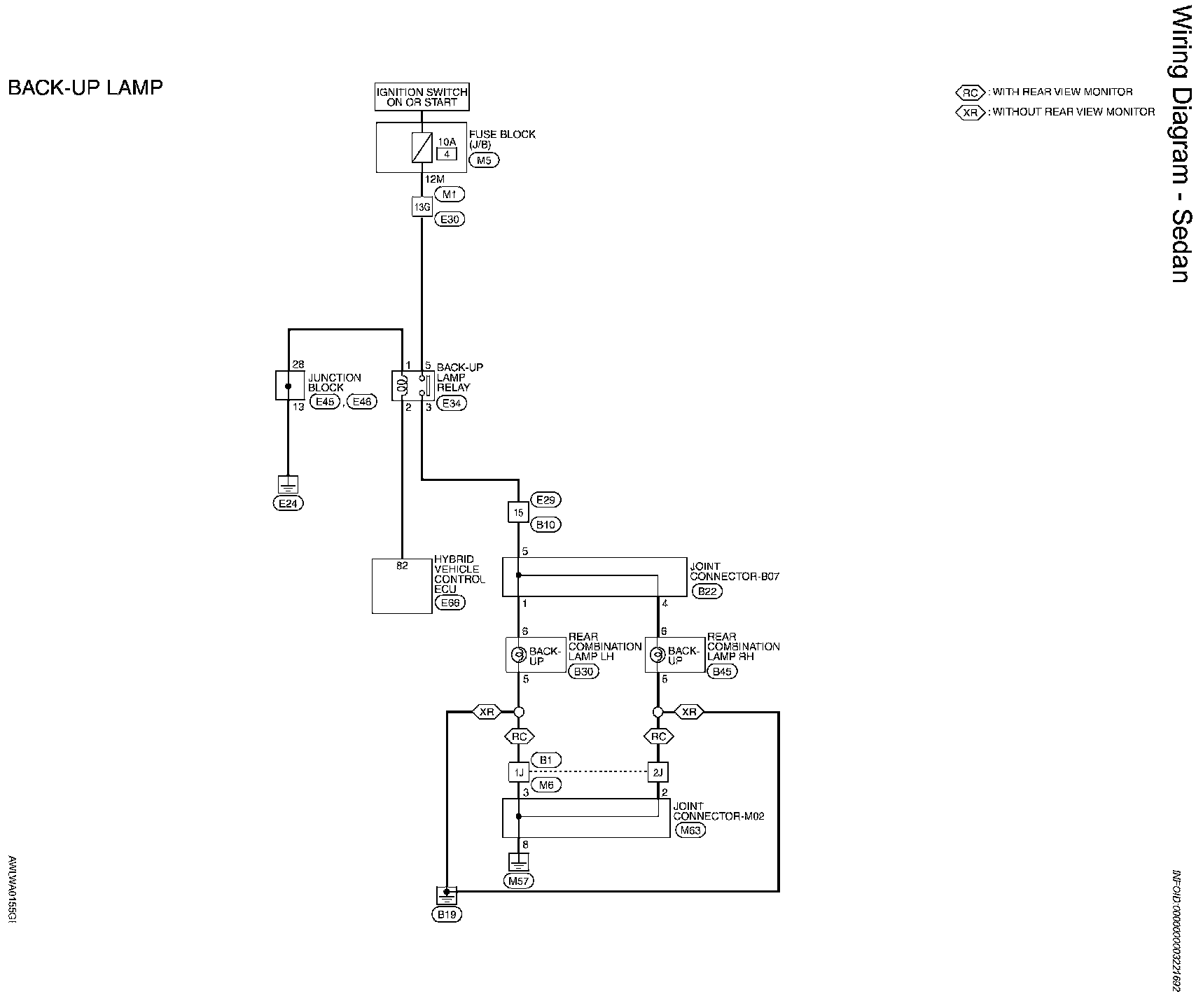

Wiring Diagram - Back-Up Lamp - Part 1:

Wiring Diagram - Back-Up Lamp - Part 2:

Wiring Diagram - Back-Up Lamp - Part 3:

Wiring Diagram - Back-Up Lamp - Part 4:

Wiring Diagram - Back-Up Lamp - Part 5:

Wiring Diagram - Back-Up Lamp - Part 6:
