Audible Warning Device

WARNING CHIME SYSTEM

Wiring Diagram-Coupe

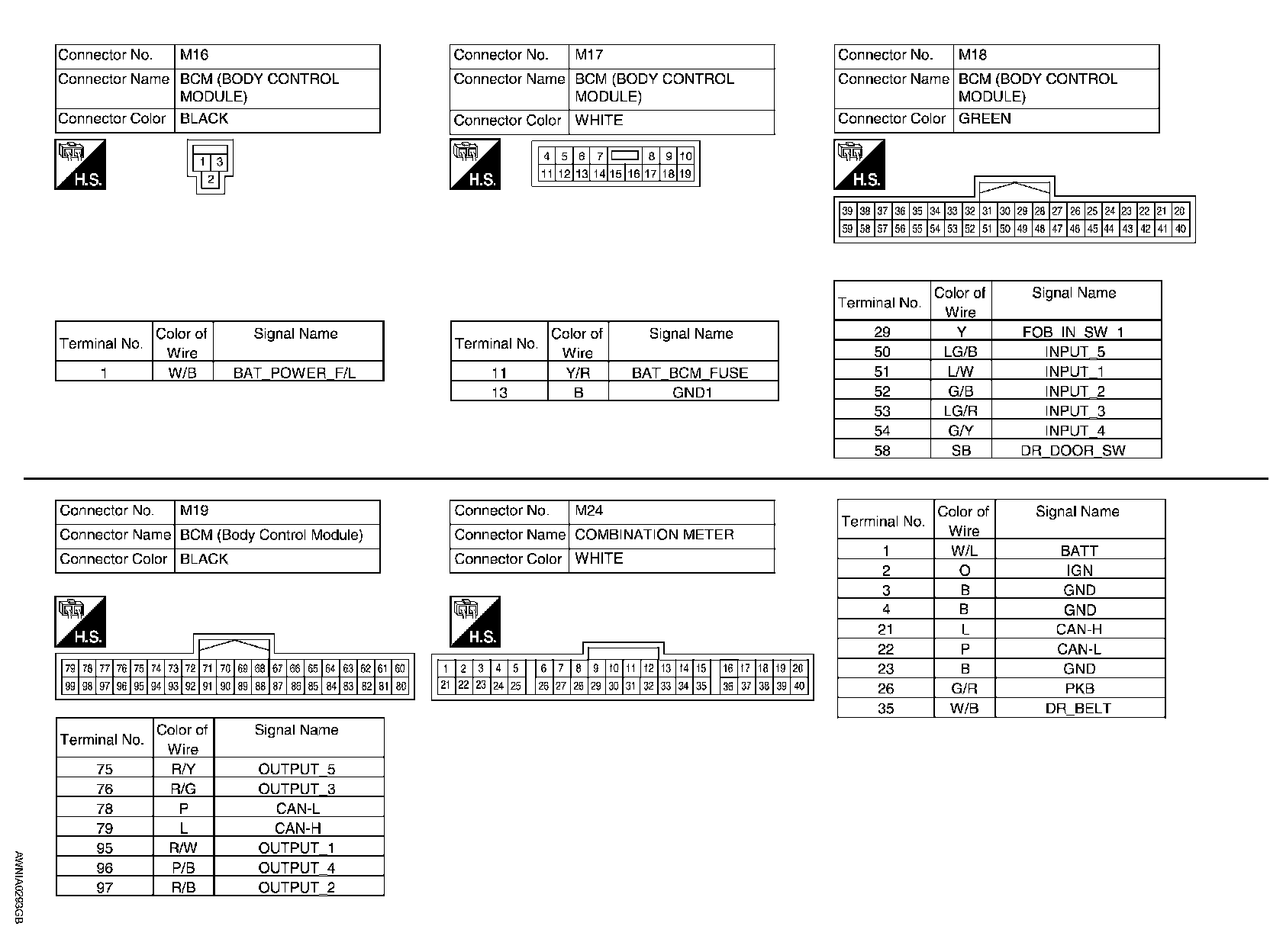

Wiring Diagram - Warning Chime - Part 1:

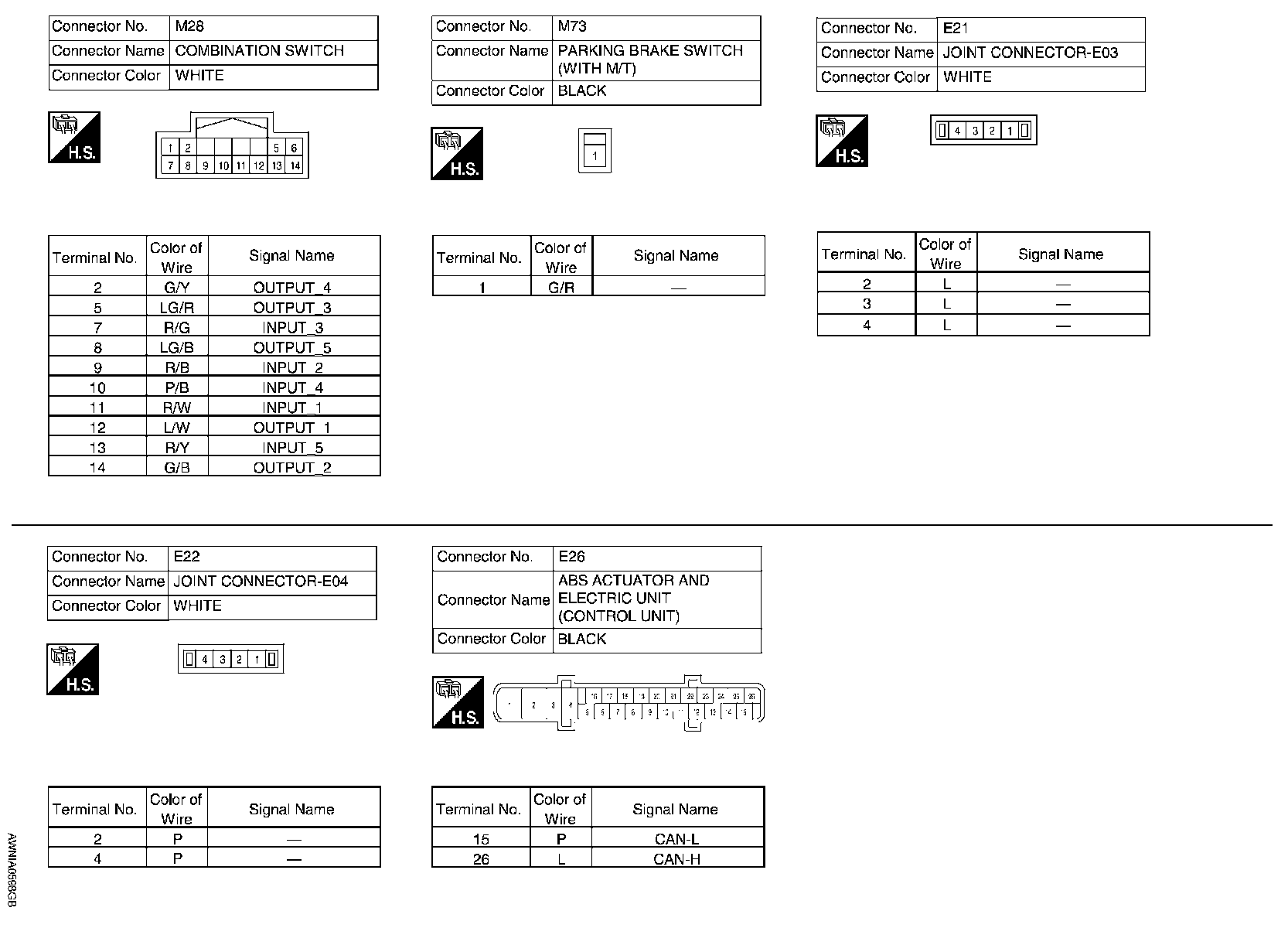

Wiring Diagram - Warning Chime - Part 2:

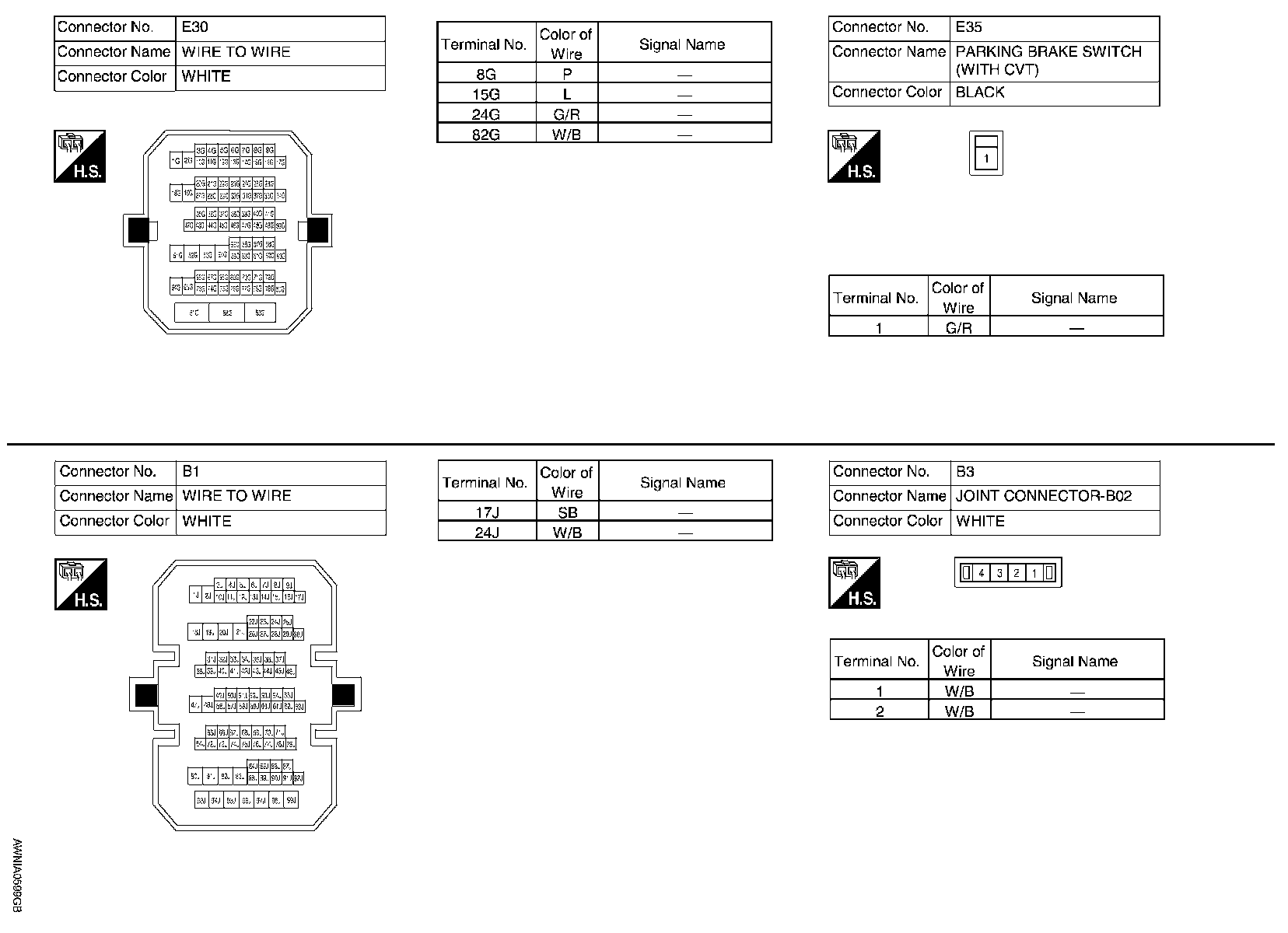

Wiring Diagram - Warning Chime - Part 3:

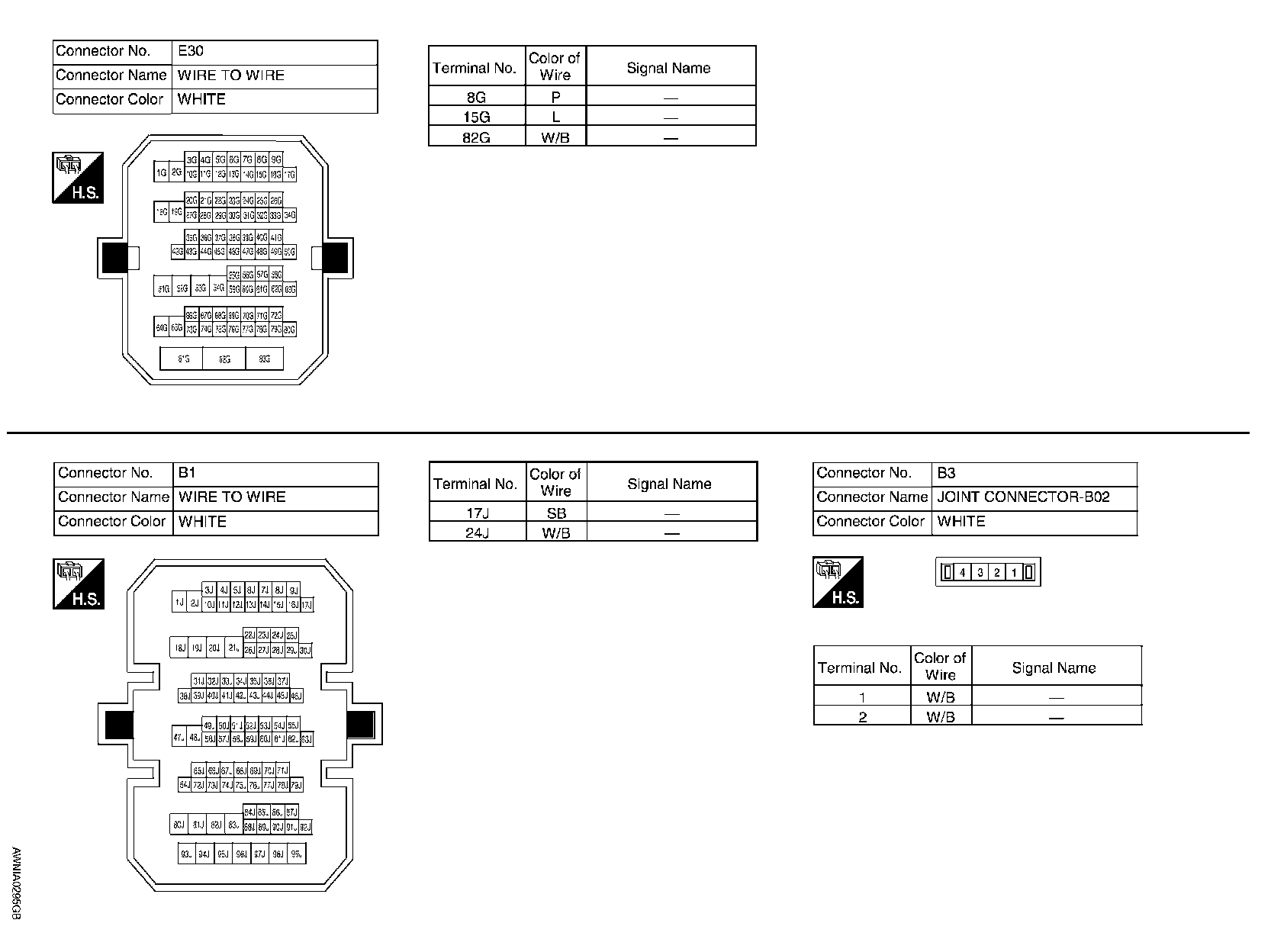

Wiring Diagram - Warning Chime - Part 4:

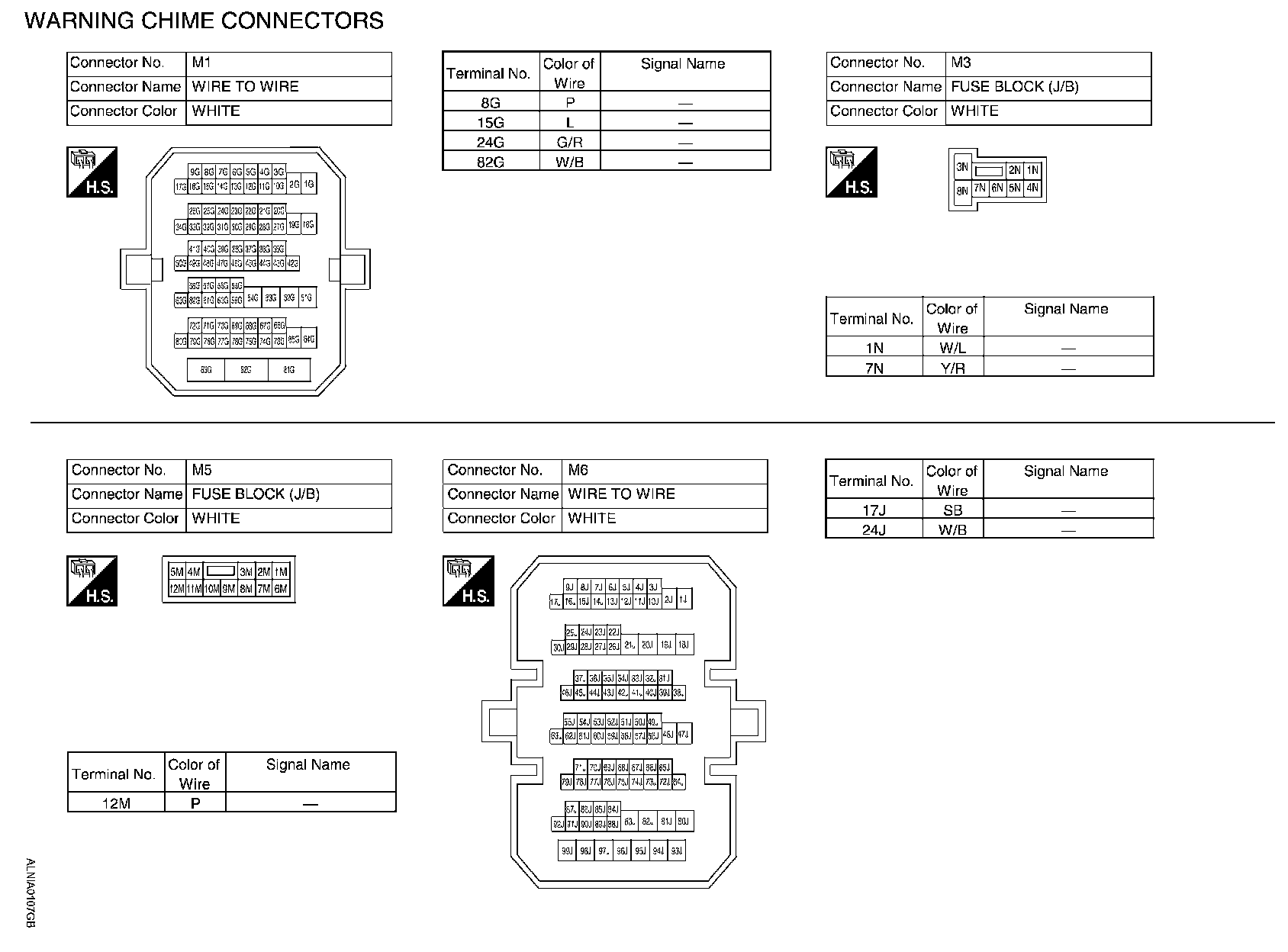

Wiring Diagram - Warning Chime - Part 5:

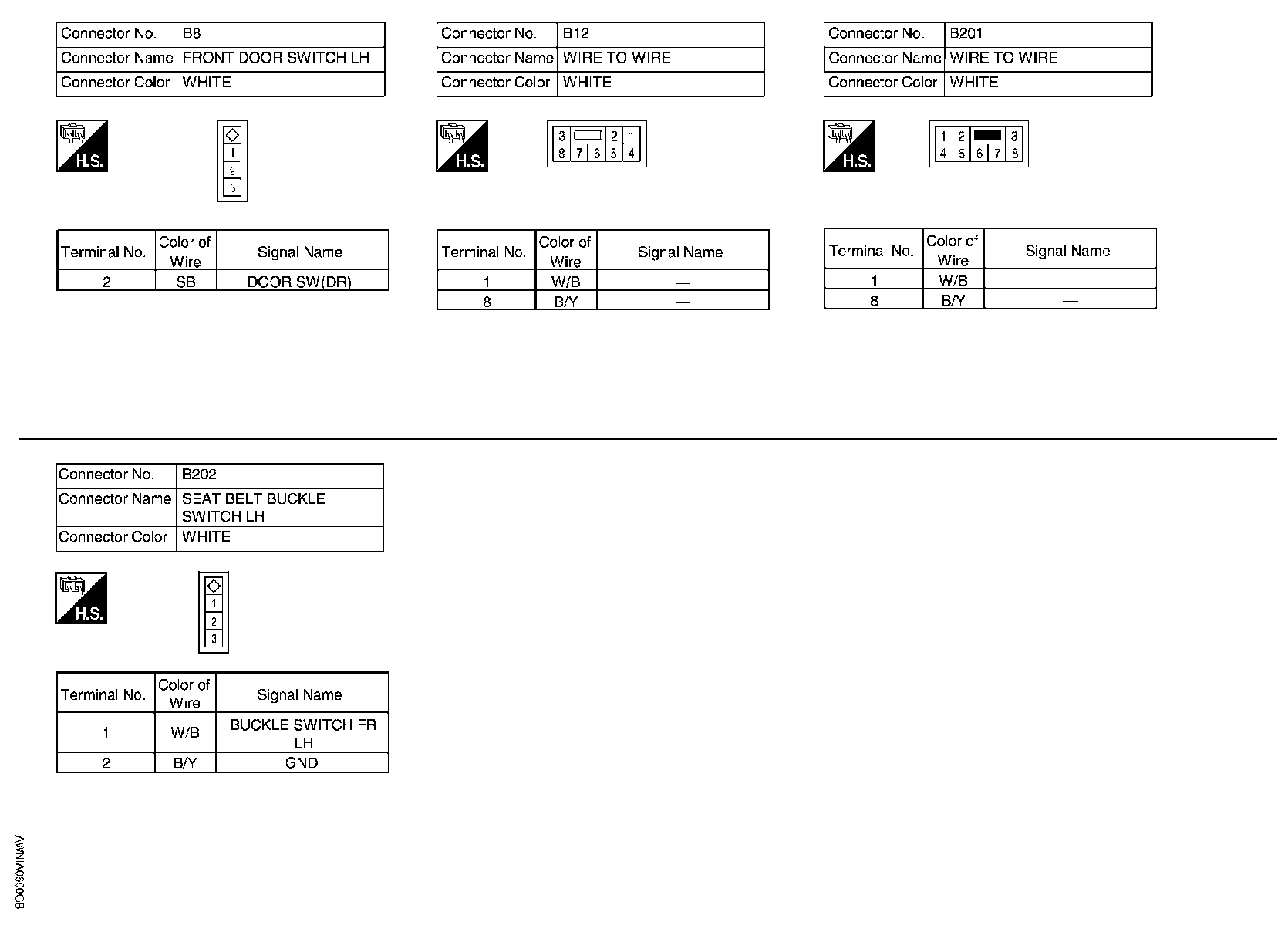

Wiring Diagram - Warning Chime - Part 6:

Wiring Diagram-Sedan

Wiring Diagram - Warning Chime - Part 1:

Wiring Diagram - Warning Chime - Part 2:

Wiring Diagram - Warning Chime - Part 3:

Wiring Diagram - Warning Chime - Part 4:

Wiring Diagram - Warning Chime - Part 5:

Wiring Diagram - Warning Chime - Part 6:
