Steering

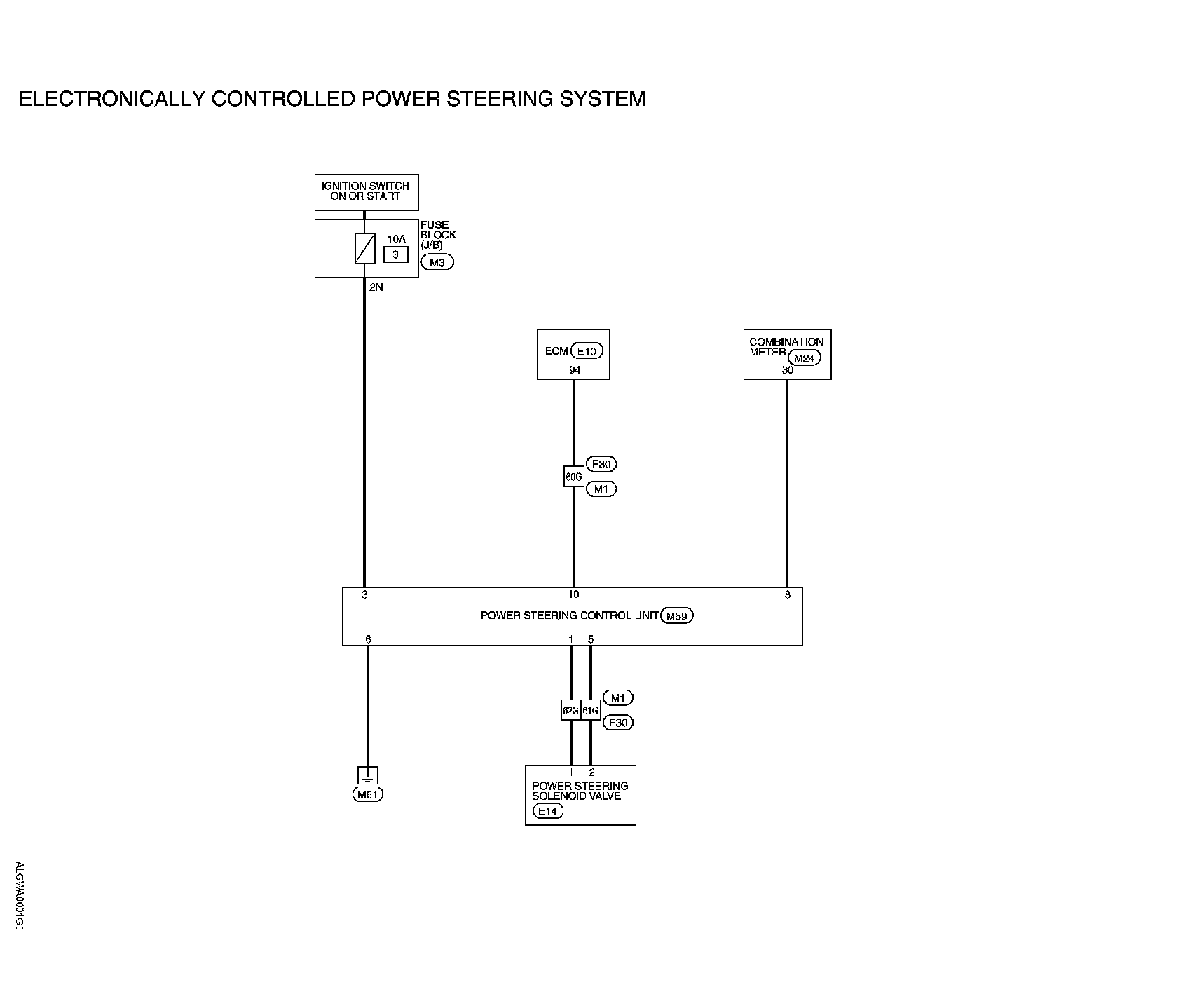

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM -

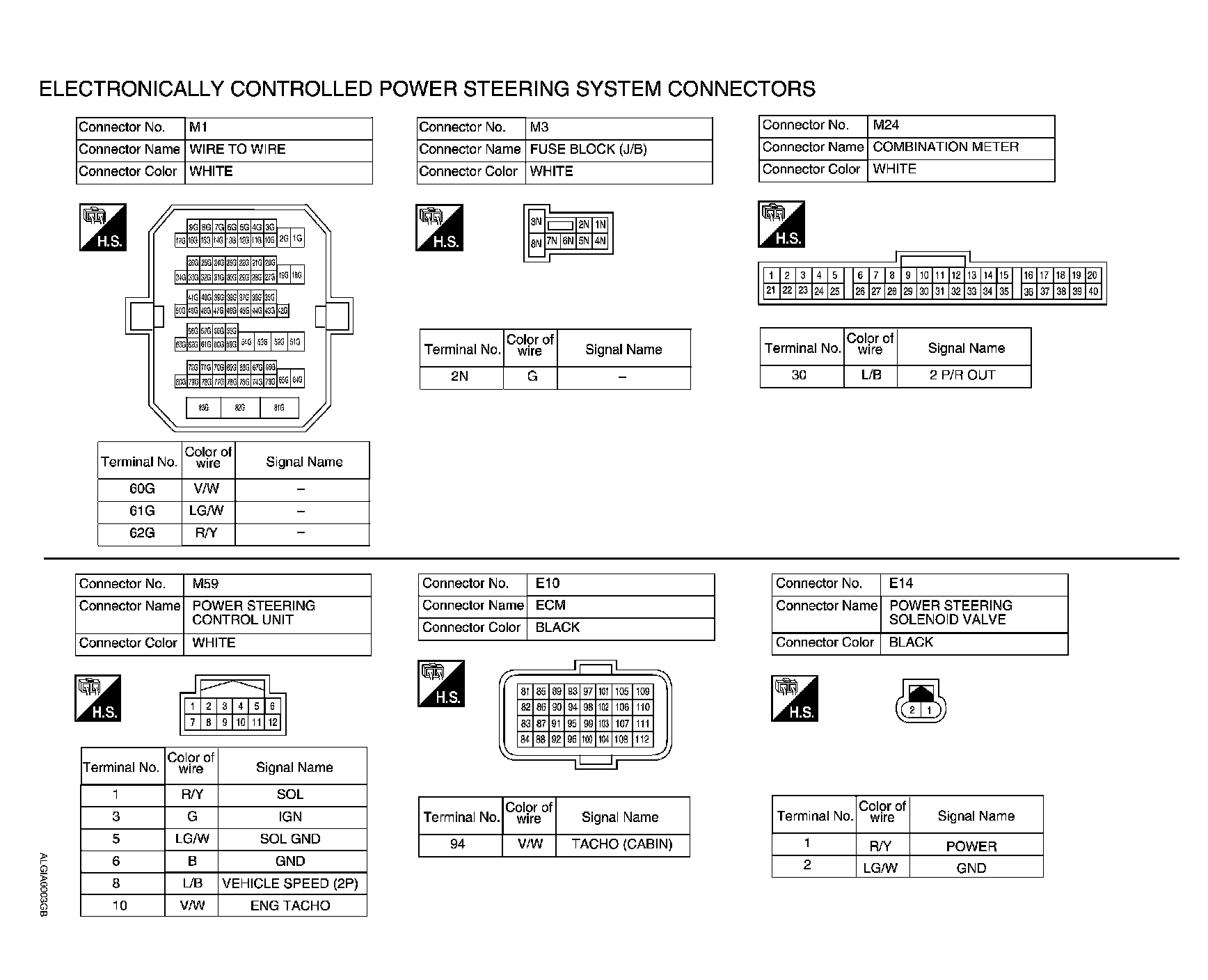

Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM - Part 1:




Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM - Part 2:




Wiring Diagram - ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM - Part 3:
