Tire Monitoring System
>>
Wiring Diagram - Sedan
Wiring Diagram - Sedan
Wiring Diagram - Sedan

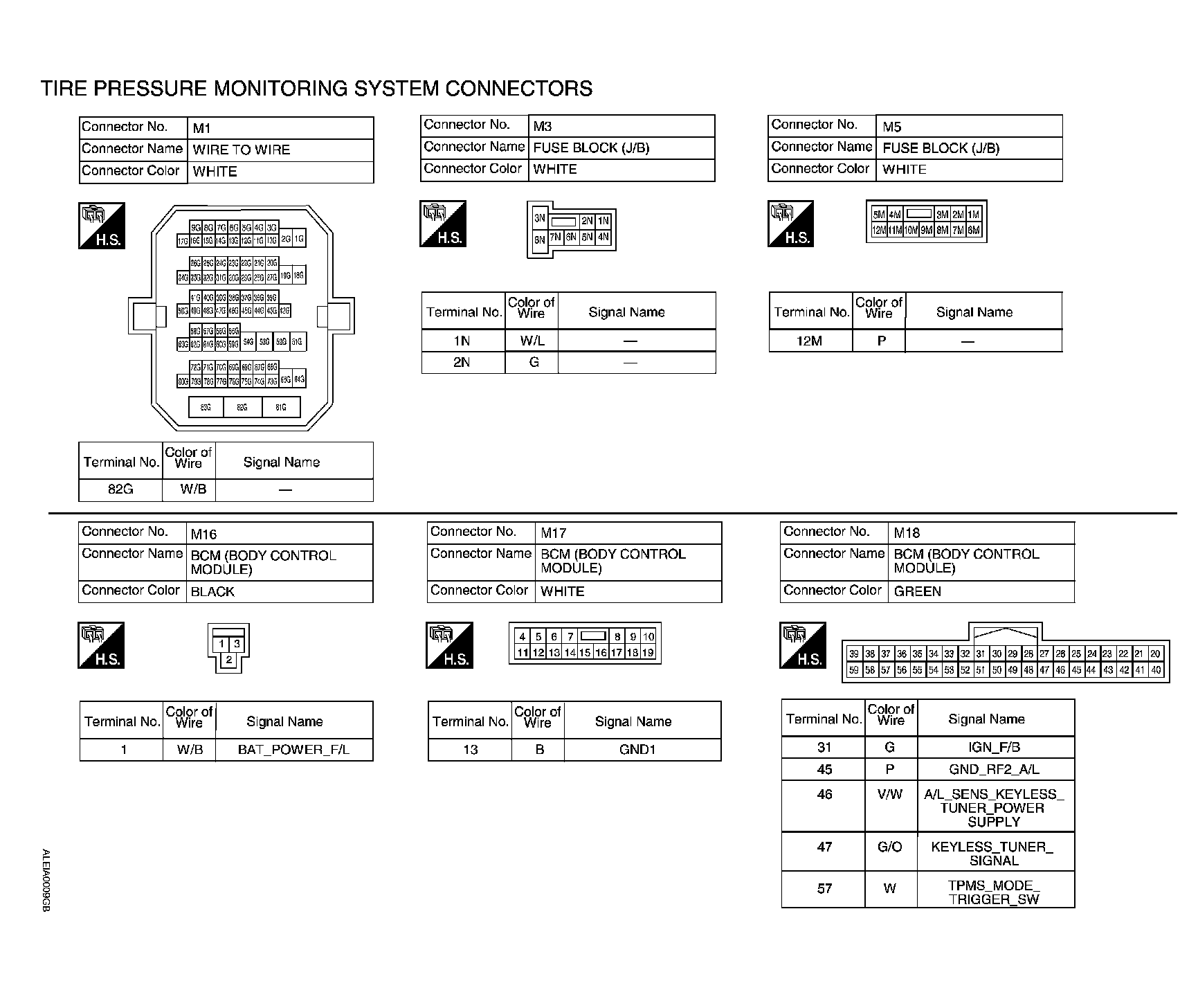

Wiring Diagram - Sedan - Part 1:
Wiring Diagram - Sedan - Part 2:
Wiring Diagram - Sedan - Part 3:
