Sedan

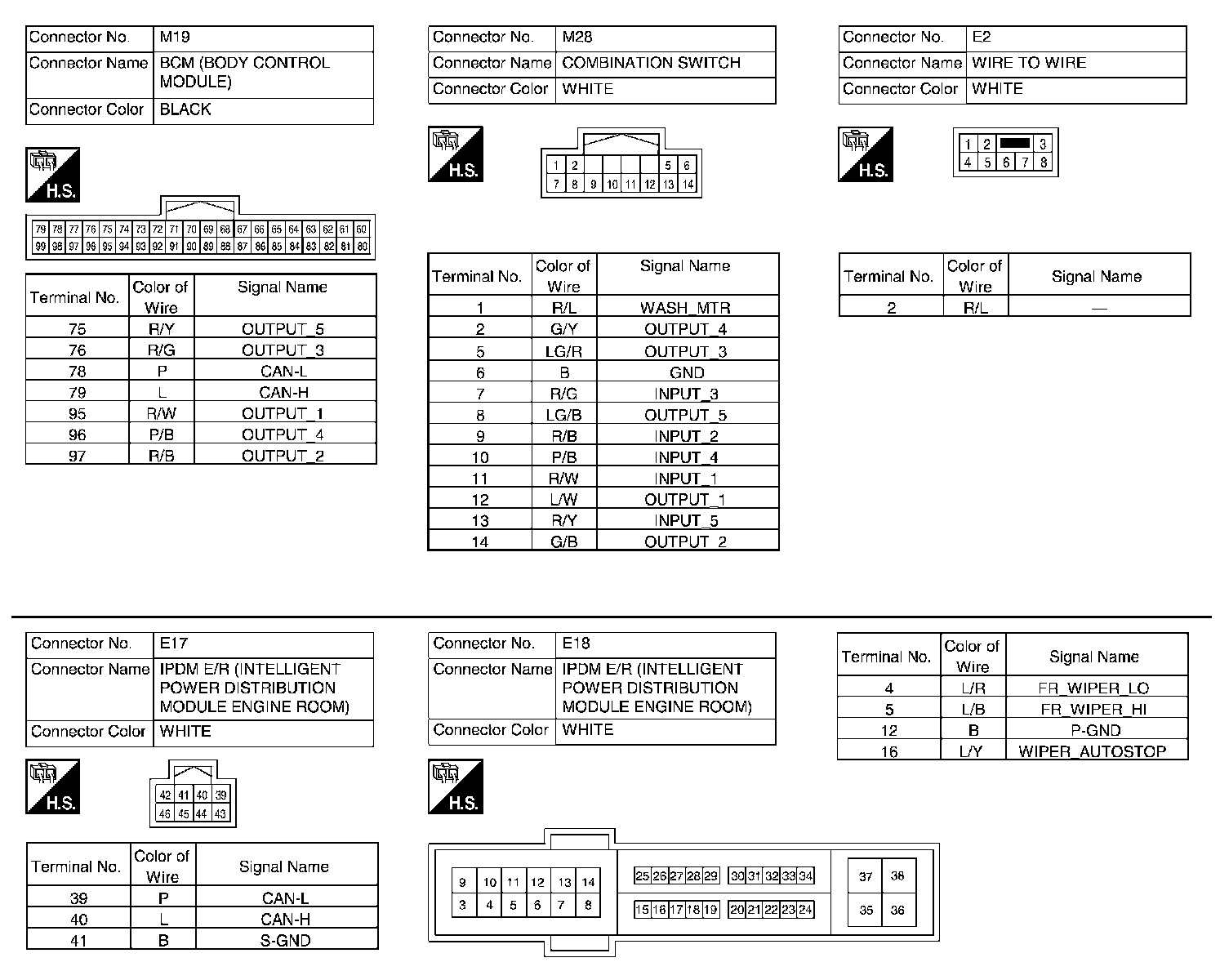

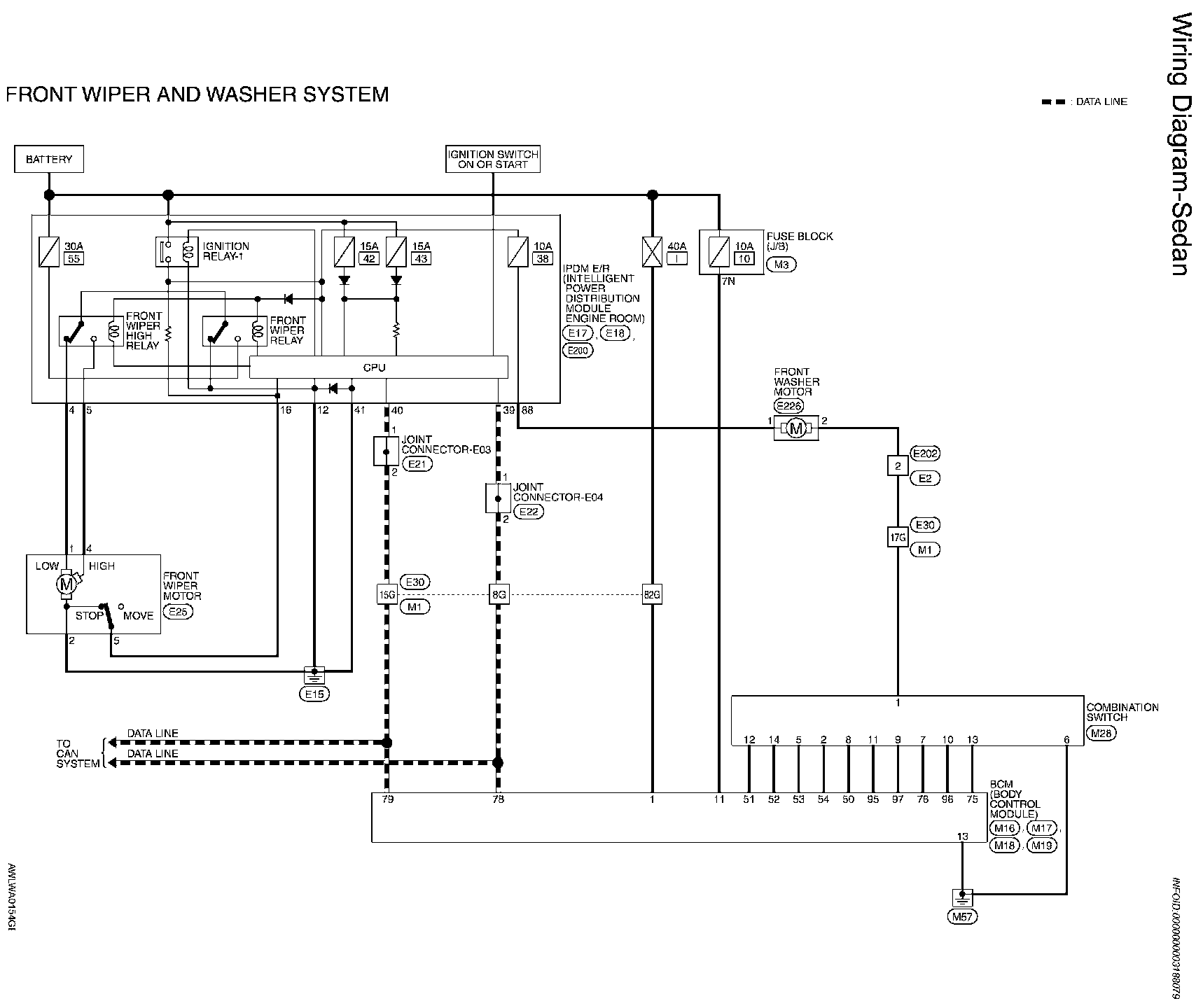

Wiring Diagram - Front Wiper And Washer System - Part 1:

Wiring Diagram - Front Wiper And Washer System - Part 2:

Wiring Diagram - Front Wiper And Washer System - Part 3:

Wiring Diagram - Front Wiper And Washer System - Part 4:

Wiring Diagram - Front Wiper And Washer System - Part 5:
