Cabin Air Filter / Purifier: Description and Operation

FUNCTION DIAGNOSIS

IN-CABIN MICROFILTER

Description

FUNCTION

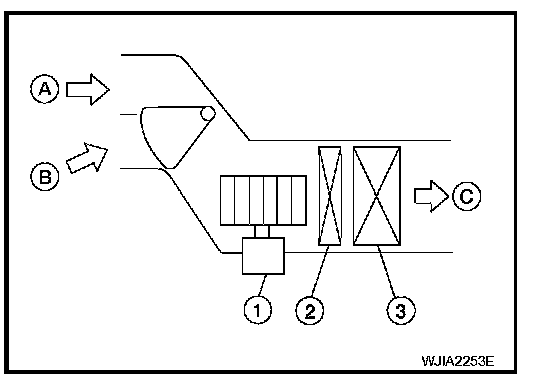

The fresh air (A) and the recirculated air (B) drawn inside the passenger compartment by the blower fan (1) is kept clean (C) on either mode by the air conditioner filter (2), located before the evaporator (3), in the A/C unit assembly.
