Instrument Cluster / Carrier: Service and Repair

ON-VEHICLE REPAIR

COMBINATION METER

Removal and Installation

REMOVAL




1. Open the fuse block cover, remove the instrument lower cover screw (A), then remove the instrument lower cover (1).
- Disconnect the given harness connectors:
- I-key
- In-vehicle sensor
- VDC switch
- Trunk lid release switch

- Disconnect the aspirator tube.




2. Remove the steering column screws (A), then remove both the steering wheel column upper (1) and lower (2) covers.

NOTE:
- Turn steering wheel to access steering column cover screws.
- Steering wheel removed for clarity.

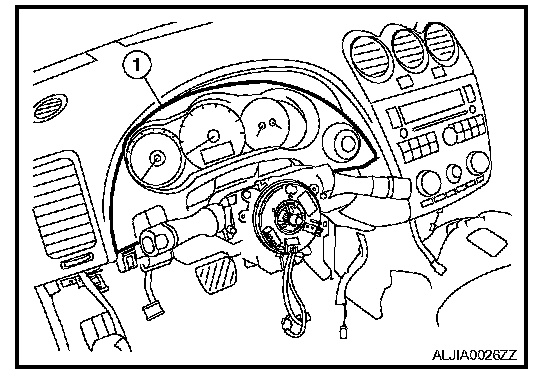

3. Remove the cluster lid A (1).

NOTE: Steering wheel removed for clarity.




4. Remove the combination meter screws (A) using power tools, and pull out the combination meter (1).
5. Disconnect the combination meter connector, and remove the combination meter (1).

INSTALLATION
Installation is the reverse order of removal.

DISASSEMBLY AND ASSEMBLY

COMBINATION METER

Disassembly and Assembly

DISASSEMBLY
1. Remove the combination meter.




2. Remove the combination meter lens (1).
- Combination meter (2)

ASSEMBLY
Assembly is in the reverse order of removal.
