Temperature Gauge: Description and Operation

ENGINE COOLANT TEMPERATURE GAUGE

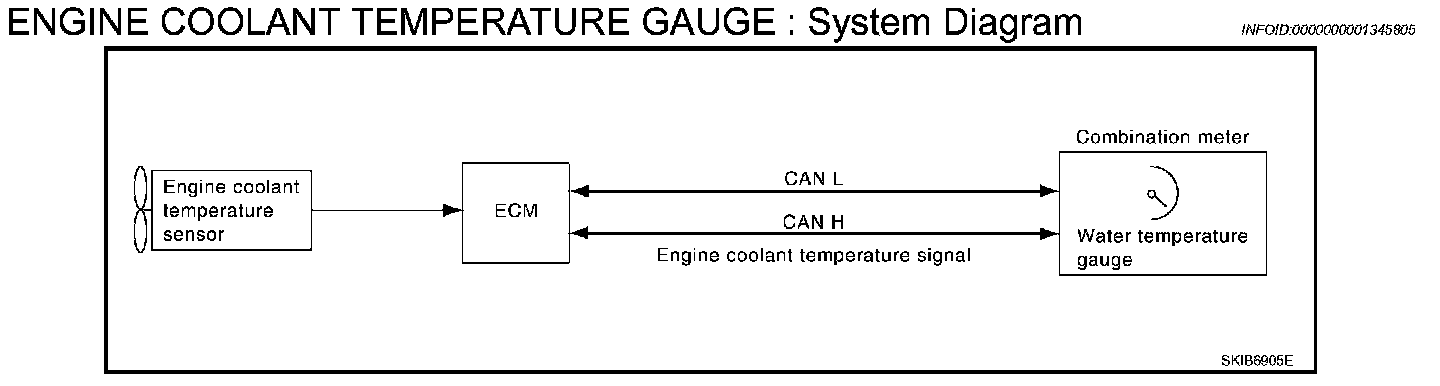

ENGINE COOLANT TEMPERATURE GAUGE: System Diagram

ENGINE COOLANT TEMPERATURE GAUGE: System Description
The engine coolant temperature gauge indicates the engine coolant temperature.
The ECM provides an engine coolant temperature signal to the combination meter via CAN communication lines.




ENGINE COOLANT TEMPERATURE GAUGE: Component Description
