Dome Lamp: Service and Repair

ROOM LAMP (if equipped)

Removal
1. Disconnect the negative battery cable.

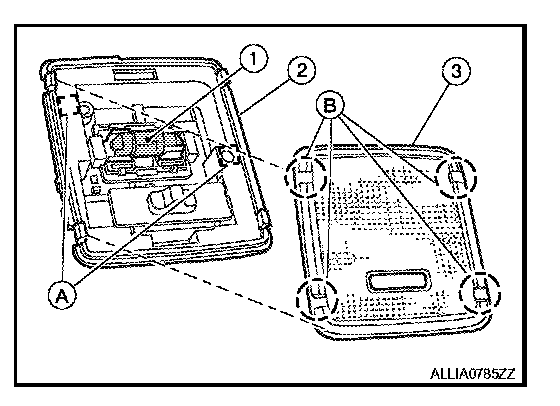

2. Insert a suitable tool between headlining and room lamp (2) to release the clips (A).
3. Disconnect the room lamp connector, then remove the room lamp (2).

Installation
Installation is in the reverse order of removal.

Bulb Replacement
1. Disconnect the negative battery cable.
2. Using a suitable tool, release the pawls (B) and remove room lamp lens (3) from room lamp (2).
3. Pull bulb (1) straight out to remove.

Room lamp bulb: 12 V - 8 W
