Vacuum and Vapor Hose Diagrams
Vacuum and Vapor Hose Diagrams

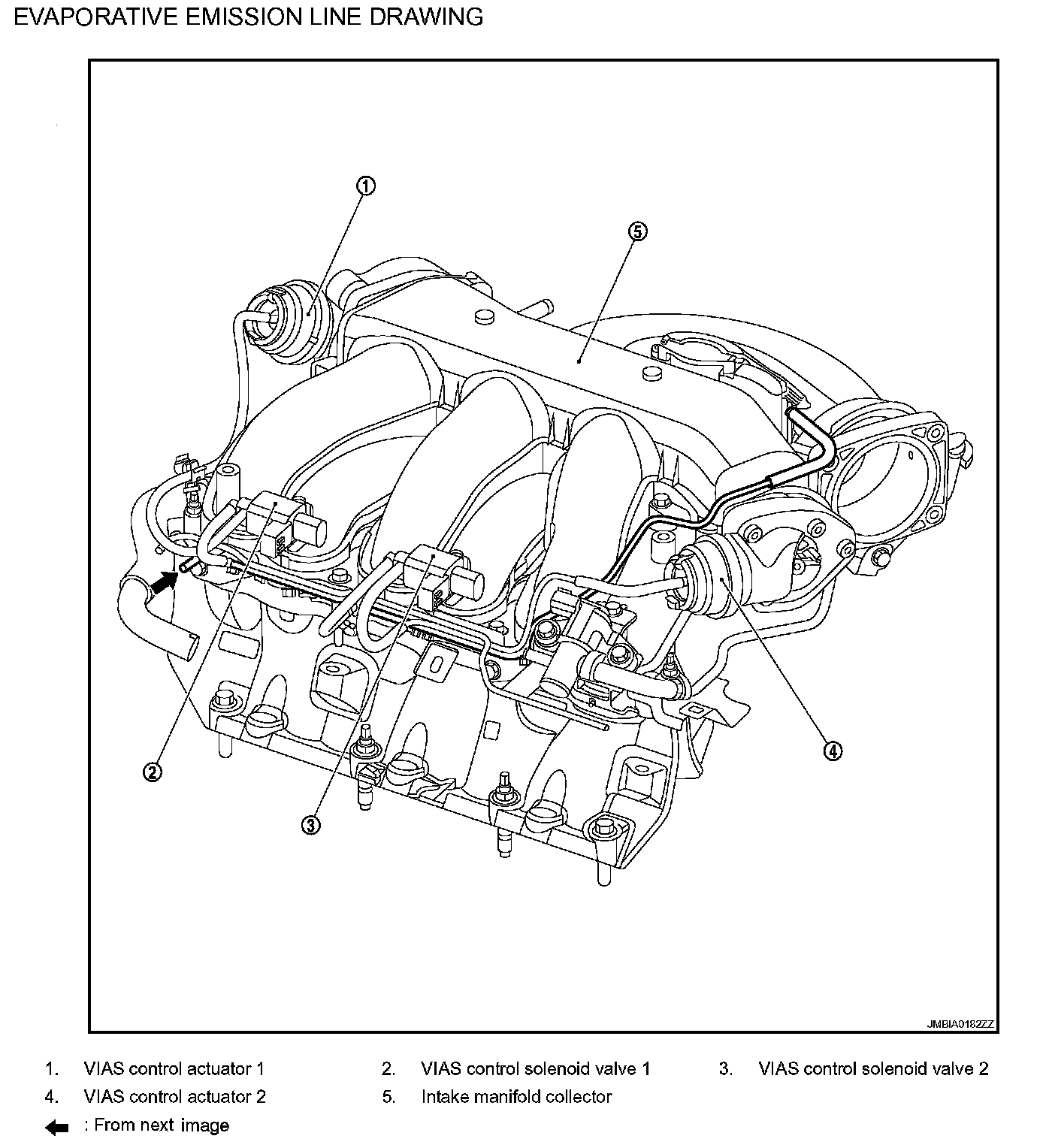

Evaporative Emission Line Drawing (Part 1):
