Continuously Variable Transmission/Transaxle, CVT
>>
Fluid Pan, CVT
Fluid Pan, CVT

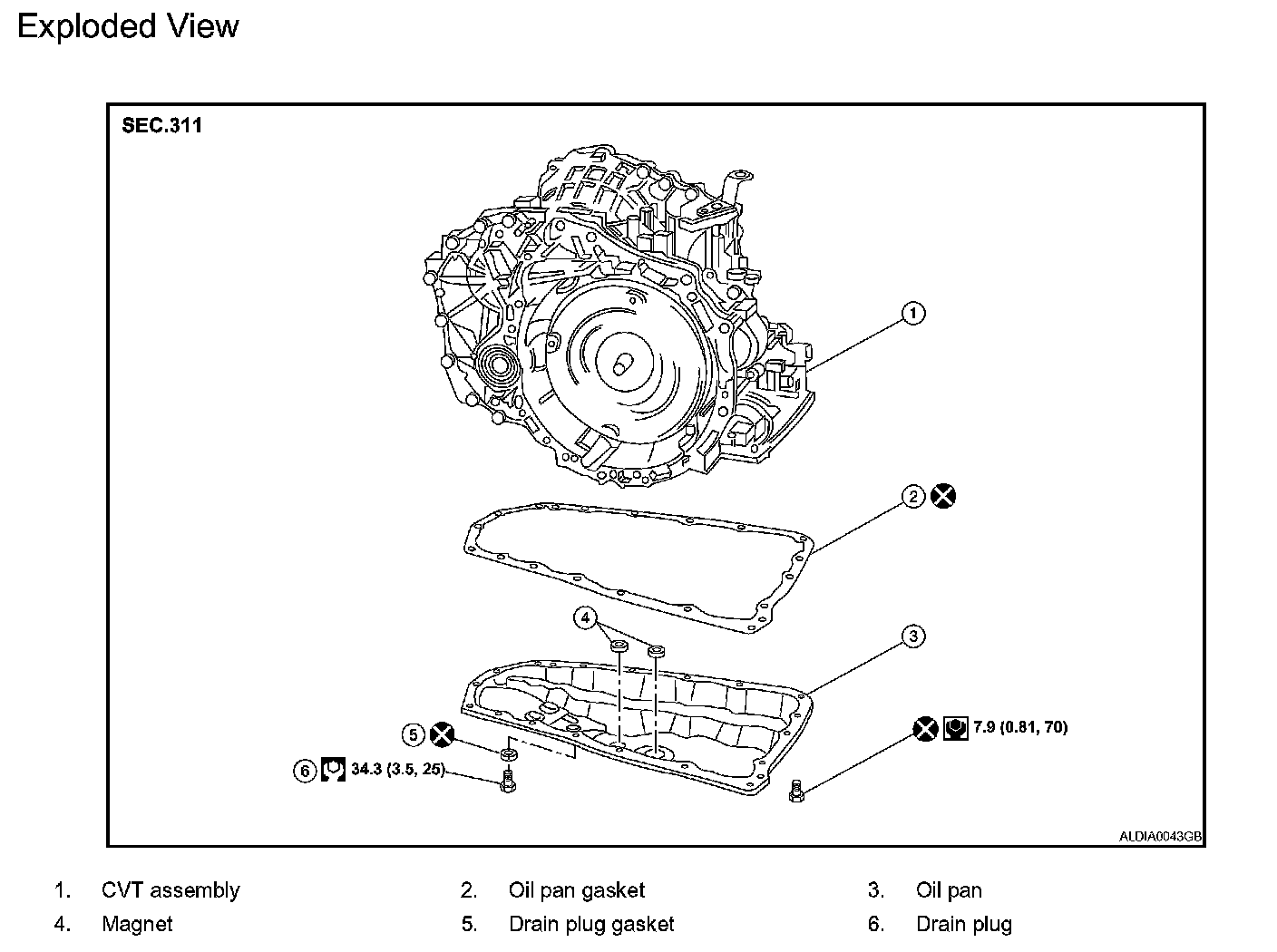

TM-431 Exploded View:
