Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2008
>>
Altima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Suspension
>>
Radius Arm
Radius Arm

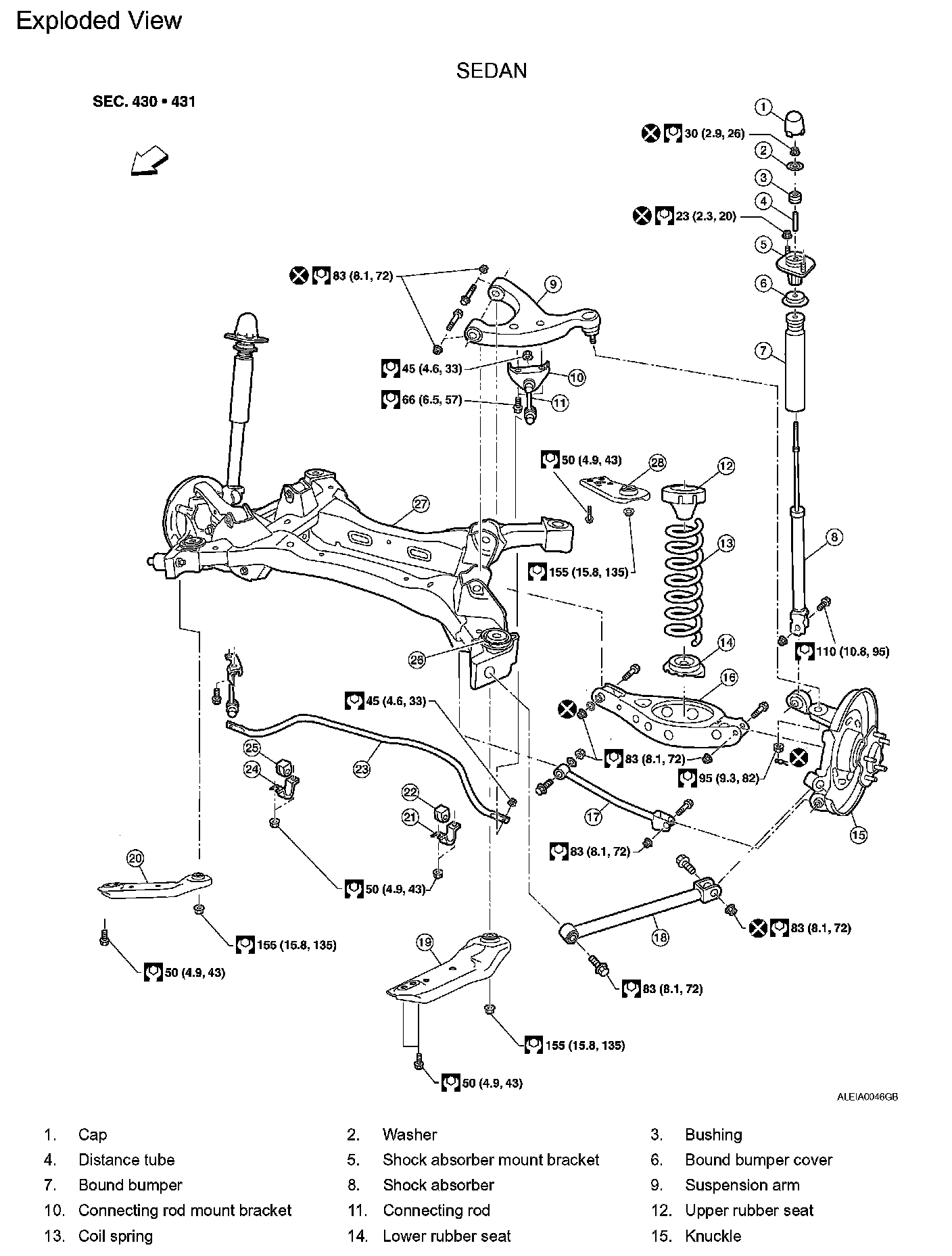

RSU-9 Exploded View (Part 1):
RSU-9 Exploded View (Part 2):

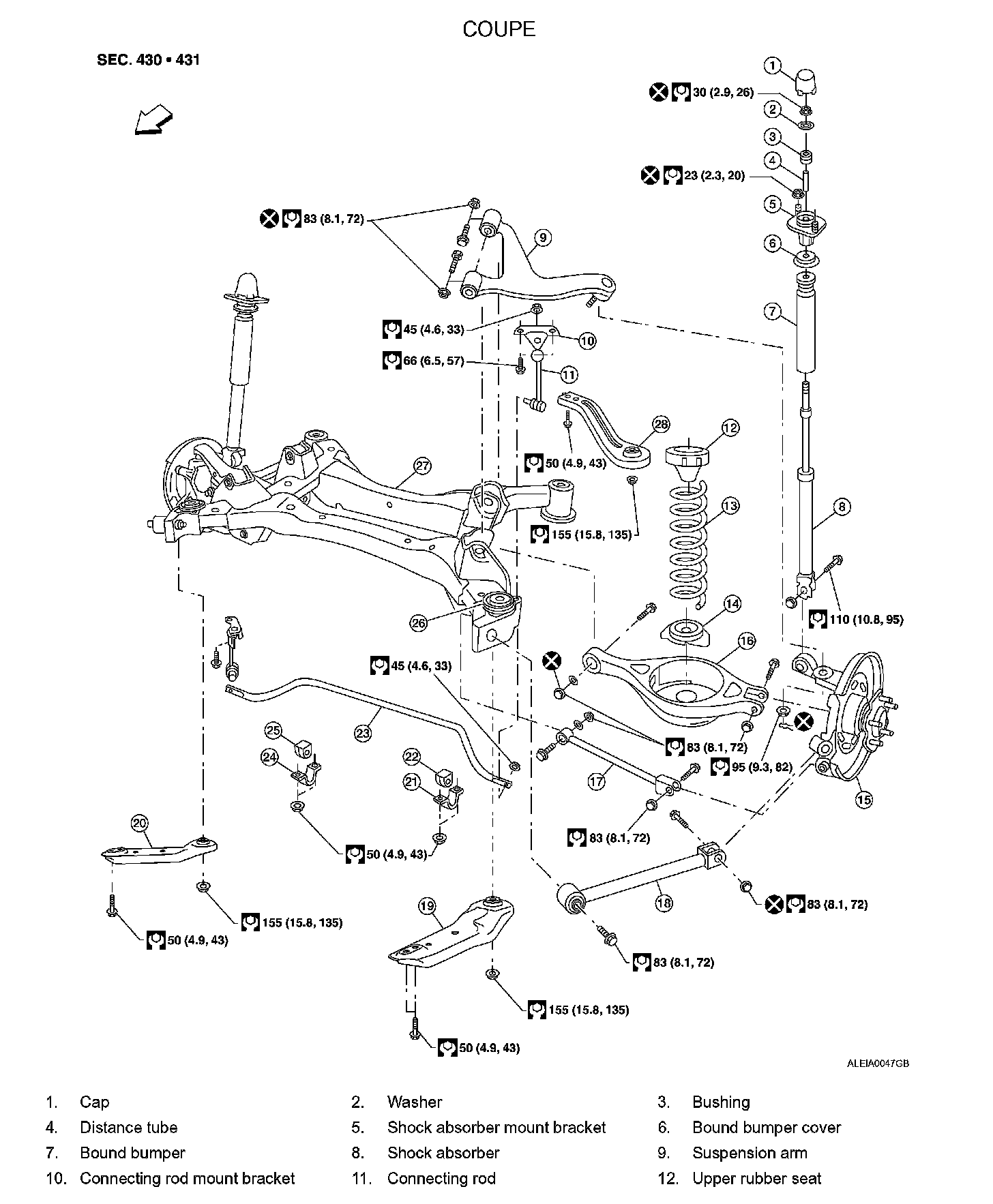

RSU-10 Exploded View (Part 1):
RSU-10 Exploded View (Part 2):
