Windshield Washer Spray Nozzle: Service and Repair

FRONT WASHER NOZZLE

FRONT WASHER NOZZLE : Removal and Installation

REMOVAL
1. Remove the cowl top cover.

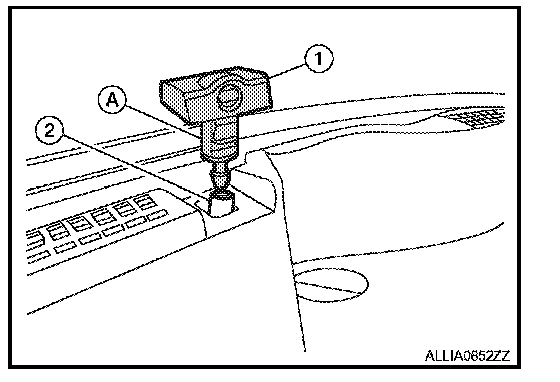

2. Push washer nozzle tab (A), to release the washer nozzle (1) from the cowl top cover, then disconnect the washer nozzle hose (2).

INSTALLATION
1. Installation is in the reverse order of removal.
2. Adjust nozzle spray location. Refer to "FRONT WASHER NOZZLE : Adjustment".
