Sunroof / Moonroof: Adjustments
SUNROOFFITTING ADJUSTMENT
Gap Adjustment
If any excessive gap difference between glass lid assembly and roof panel is found, perform the following:
1. Open sunshade assembly.
2. Tilt glass lid assembly up, then remove side finisher.
3. Loosen glass lid assembly screws (2 each on left and right sides), then tilt it down.

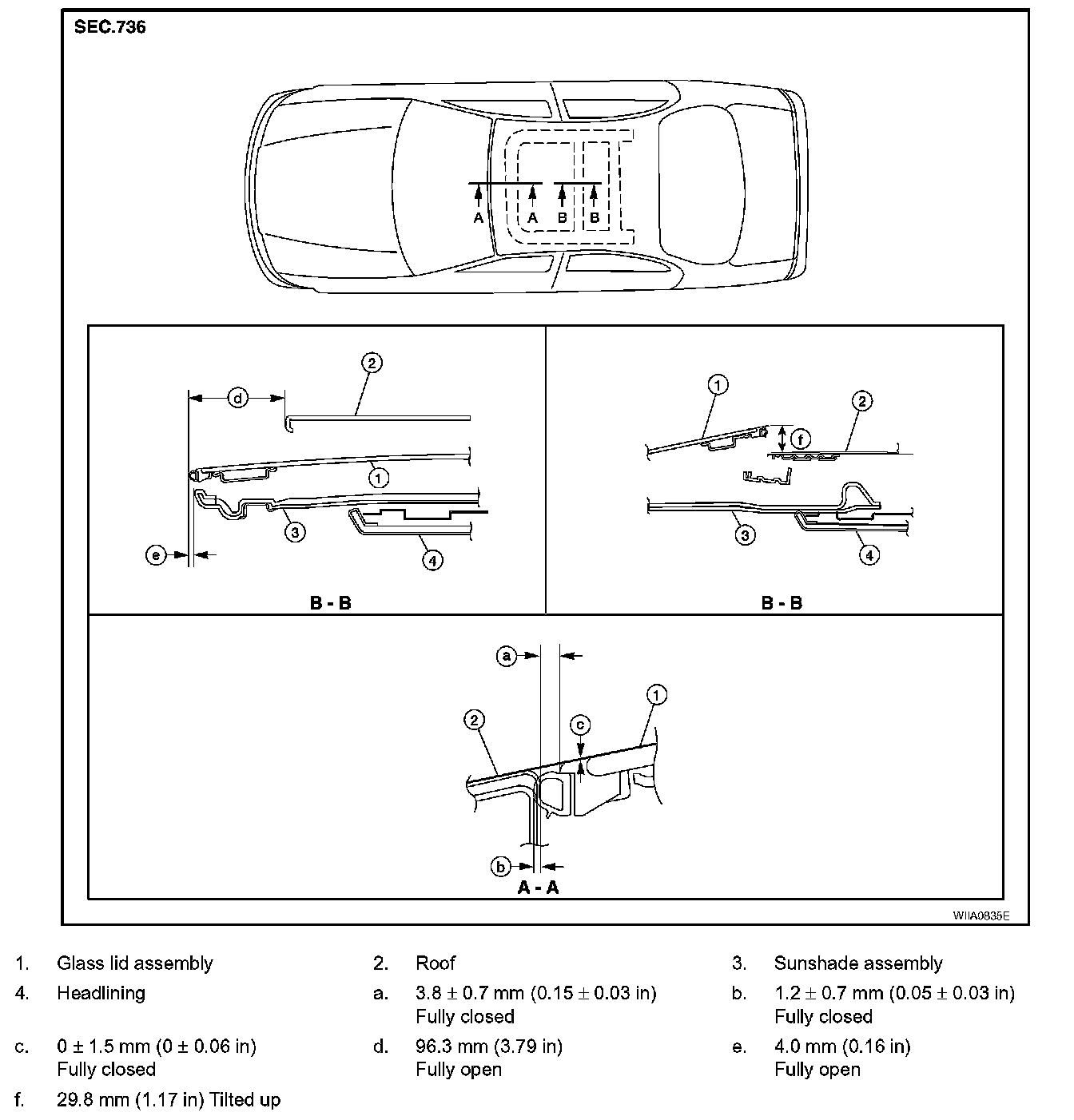

4. Manually adjust glass lid assembly from outside of vehicle until it is flush with the roof surface and resembles "A-A" as shown.
5. After adjustment, tilt glass lid assembly up and tighten screws.
6. Tilt glass lid assembly up and down several times to check that it moves smoothly.
NOTE: First tighten left front screw, then right rear on glass lid assembly to prevent movement while tightening other screws.
Height Difference Adjustment
1. Tilt glass lid assembly up and down.
2. Check height difference between roof panel and glass lid assembly; compare to "A-A" and "B-B" (when sunroof is closed) as shown in the figure.
3. If necessary, adjust height difference by using one of the following procedures:
- Adjust by adding or removing adjustment shim(s) between the glass lid assembly and sunroof frame assembly.
- If glass lid assembly protrudes above roof panel, add shim(s) or plain washers at sunroof bracket locations to meet height specifications as shown in figure.
- Tighten glass lid assembly screws and sunroof bracket bolts as required.
NOTE: First tighten left front screw, then right rear on glass lid assembly to prevent movement while tightening other screws.
