LT-H/LAMP

Wiring Diagram - H/LAMP -

HALOGEN TYPE

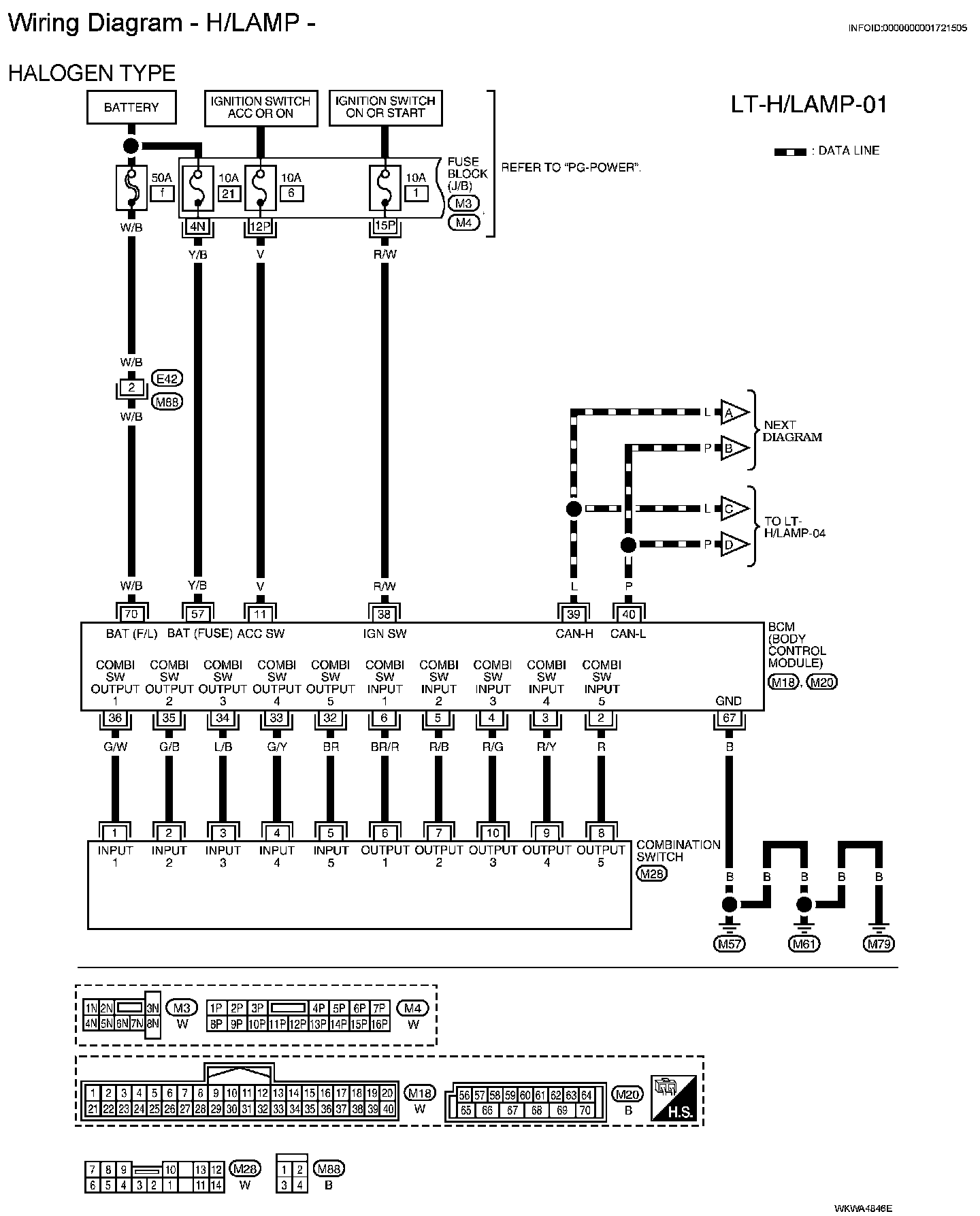

LT-H/LAMP-01:

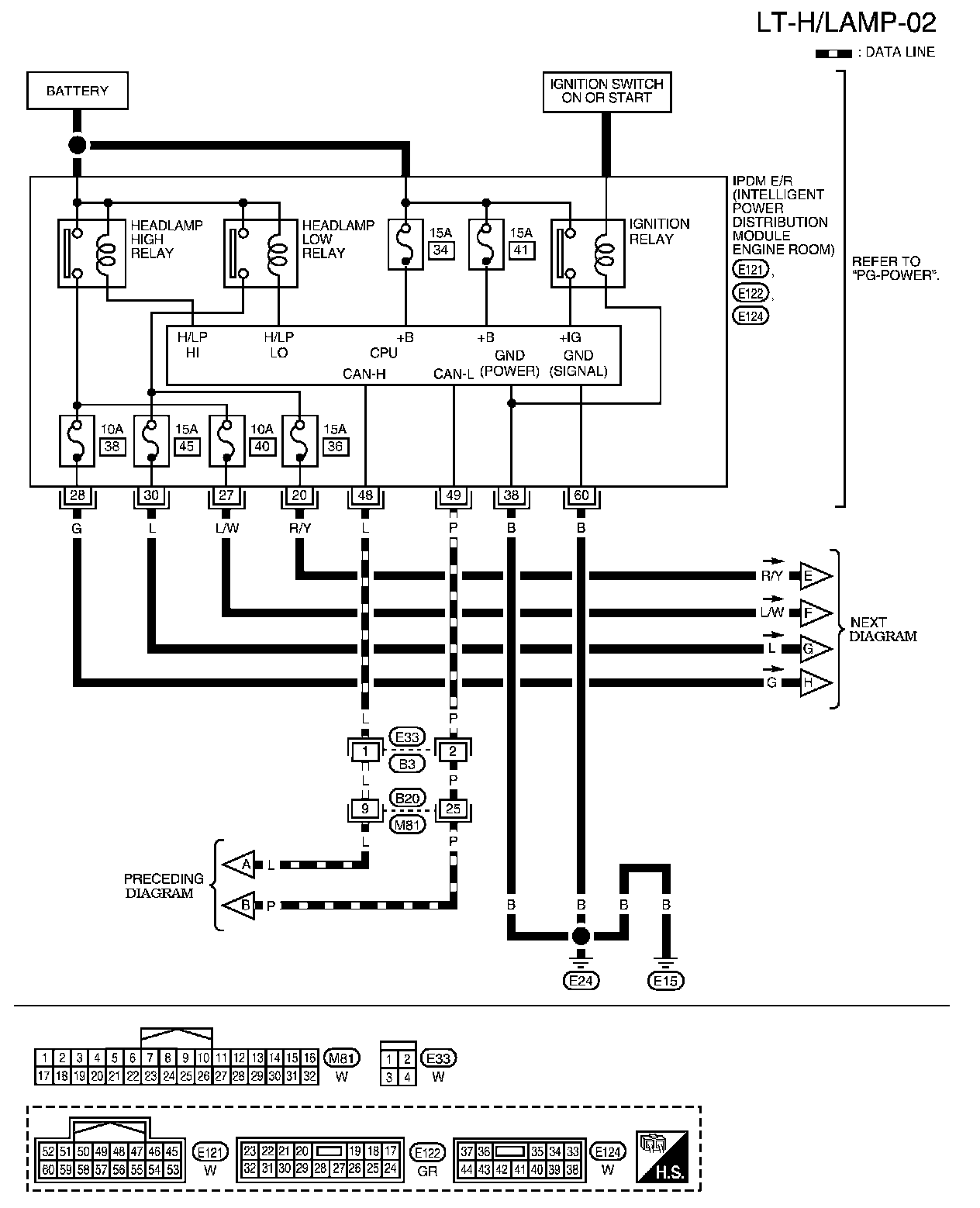

LT-H/LAMP-02:

LT-H/LAMP-03:

LT-H/LAMP-04:

XENON TYPE

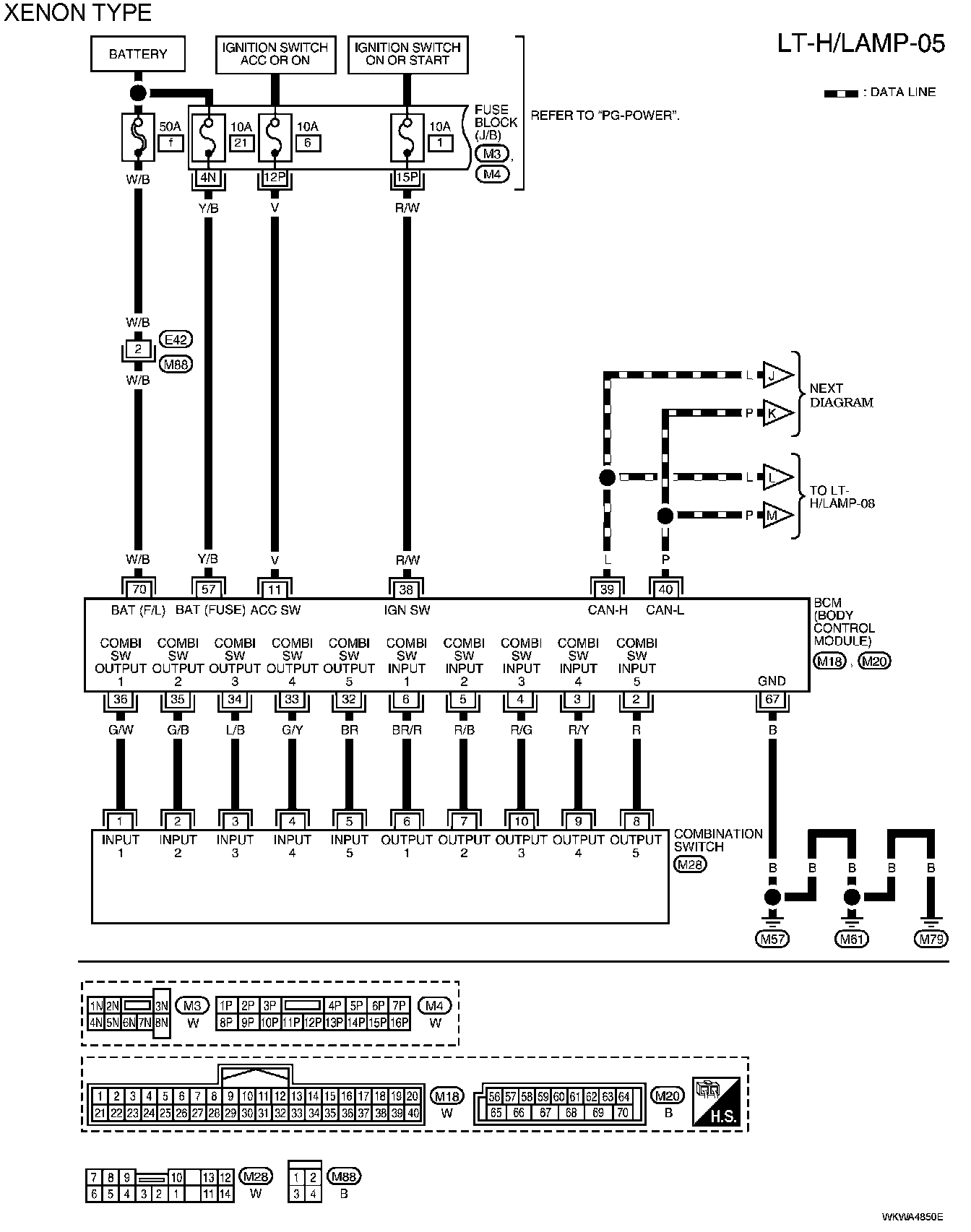

LT-H/LAMP-05:

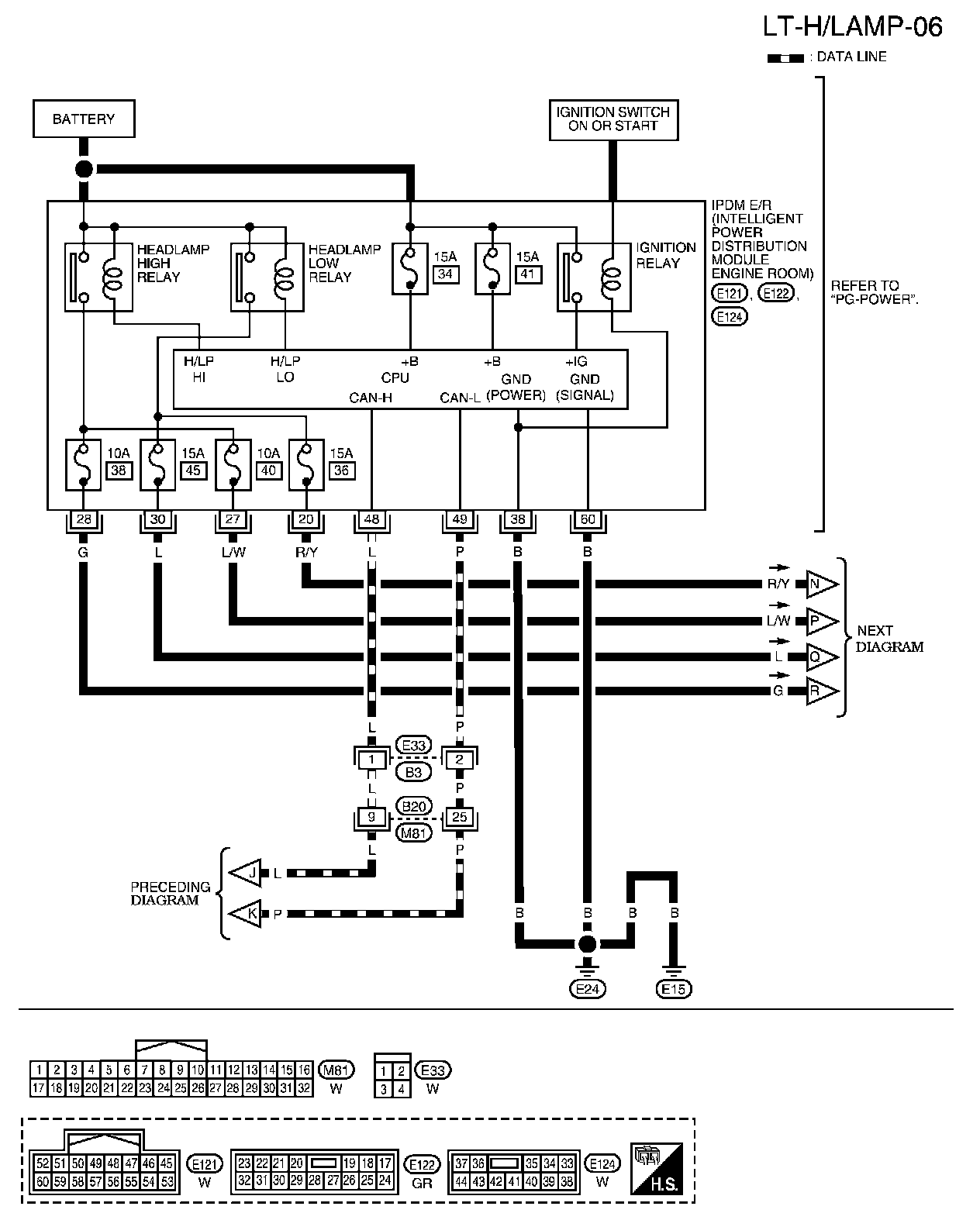

LT-H/LAMP-06:

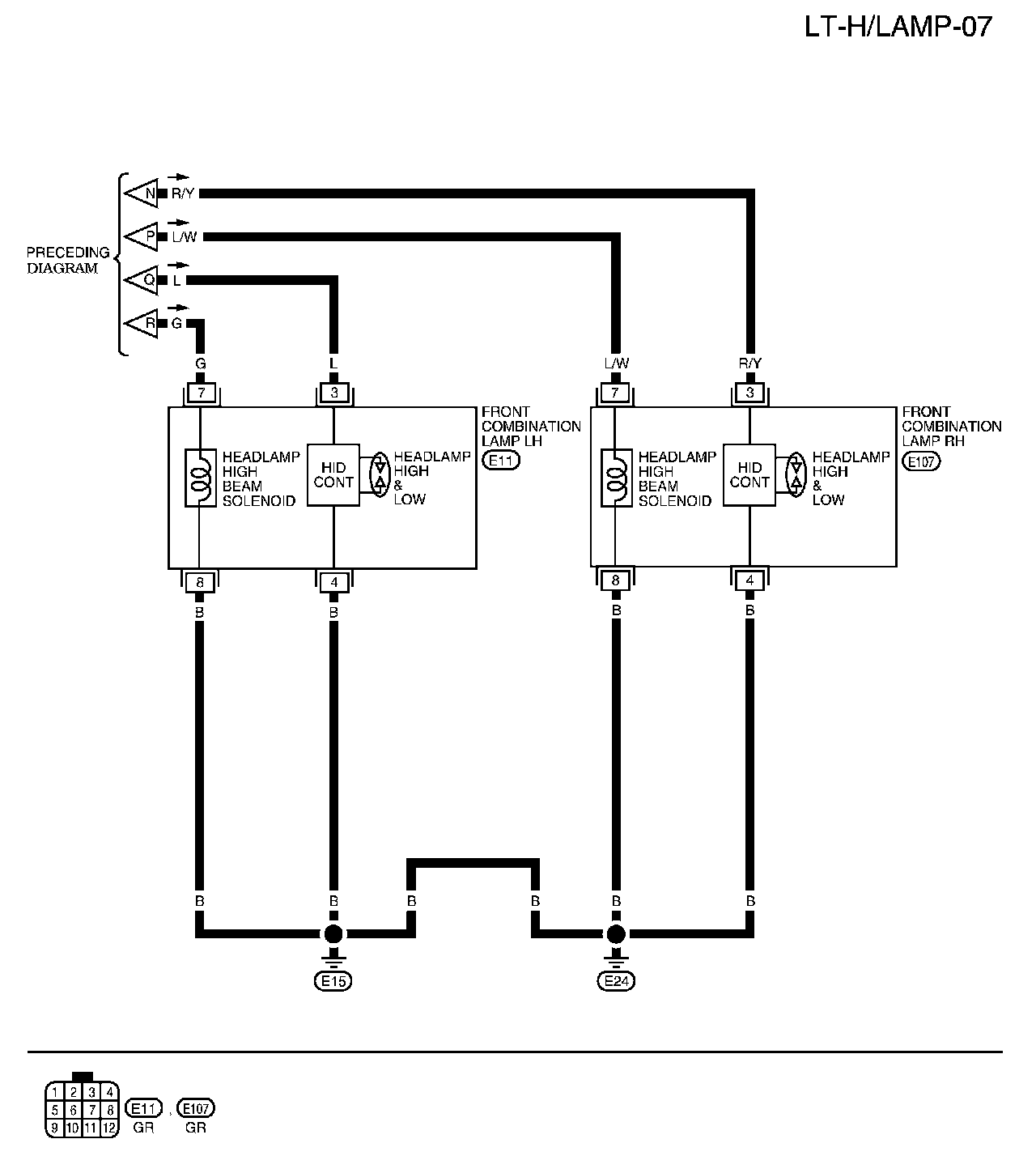

LT-H/LAMP-07:

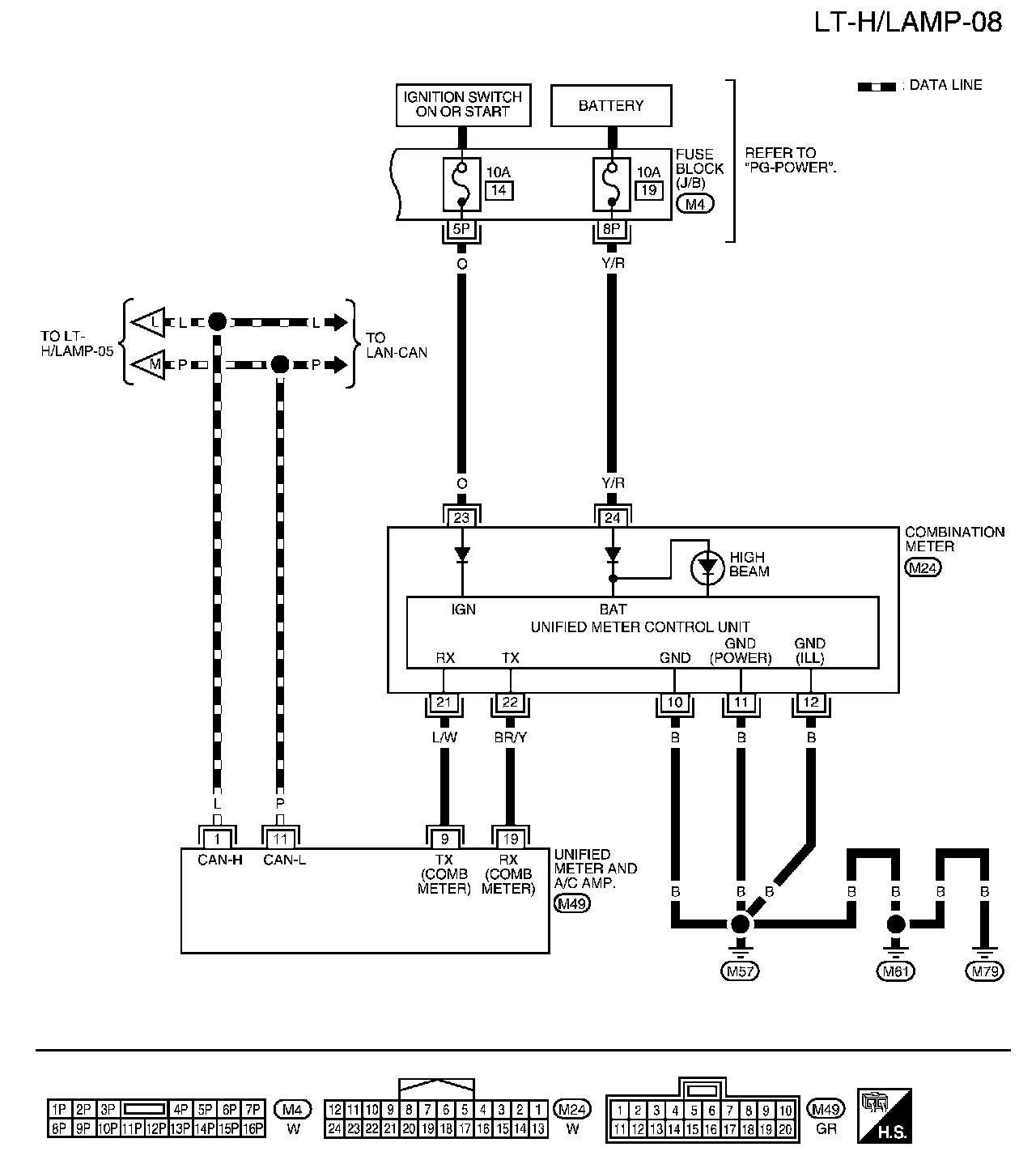

LT-H/LAMP-08:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams By Diagram Name. Diagrams By Diagram Name
