System Diagram

Wiring Diagram - Seat - Part 1:

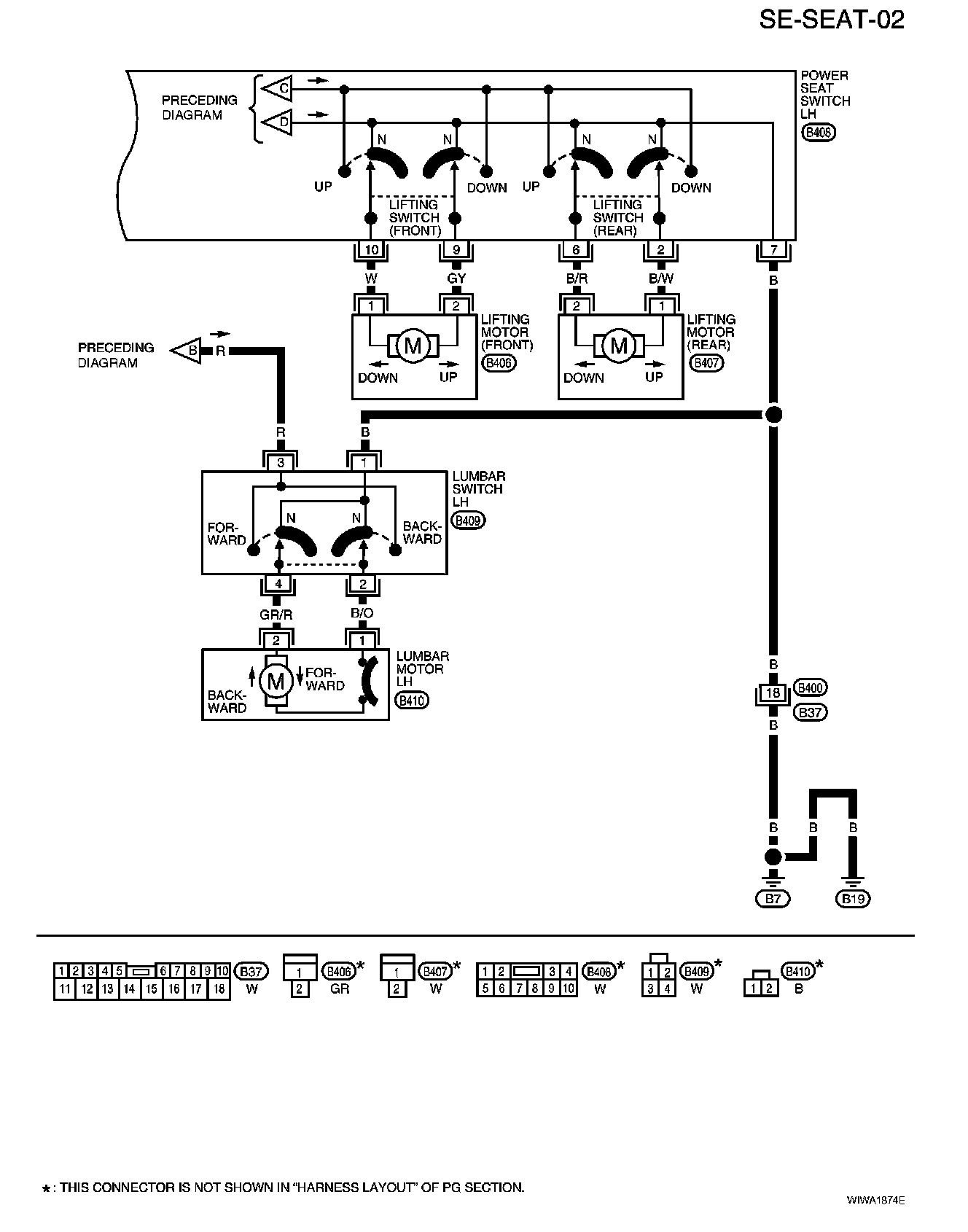

Wiring Diagram - Seat - Part 2:

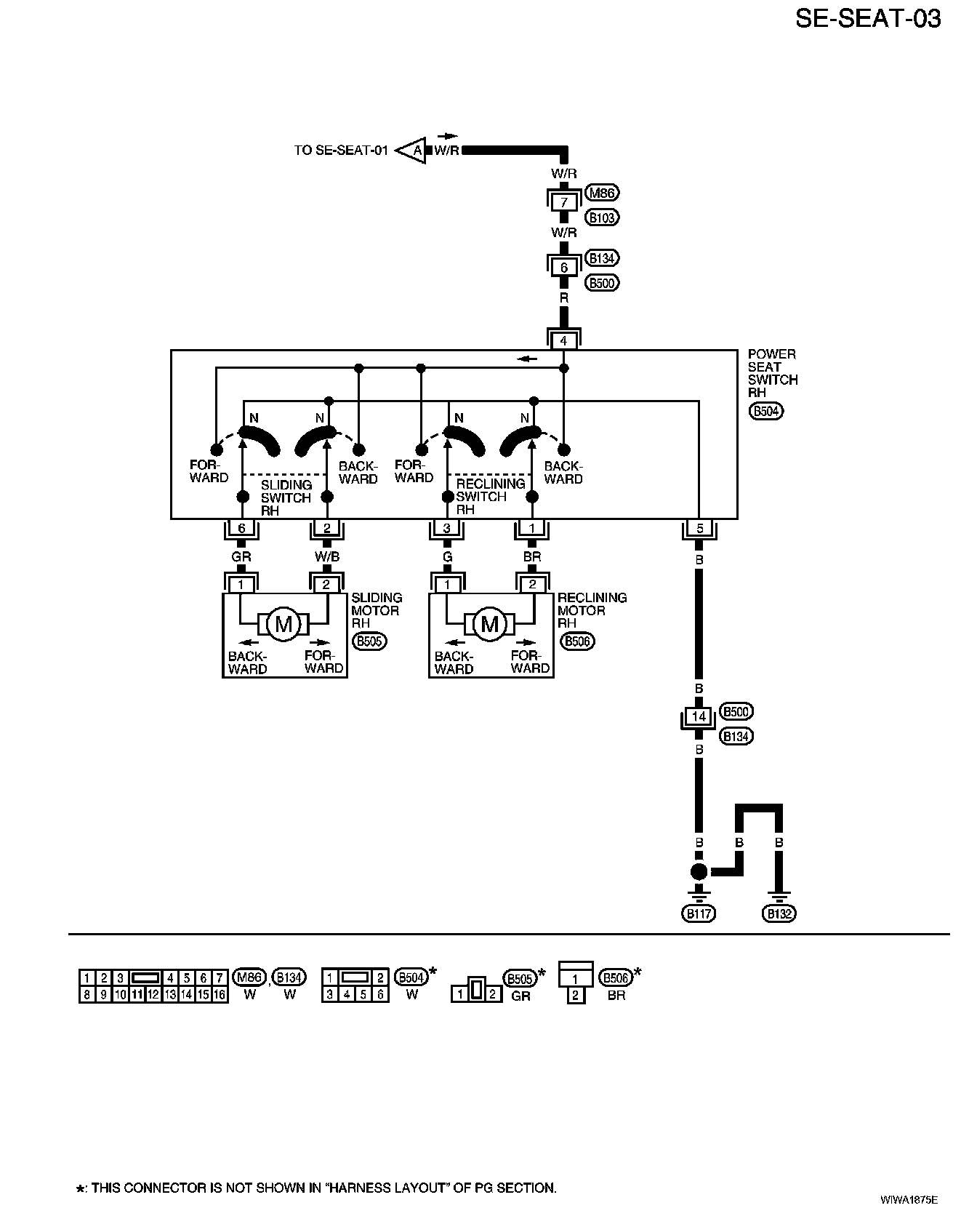

Wiring Diagram - Seat - Part 3:
