GW-Window

POWER WINDOW SYSTEM

Wiring Diagram - WINDOW - (With Front Left and Right Only Power Window Anti-pinch System)

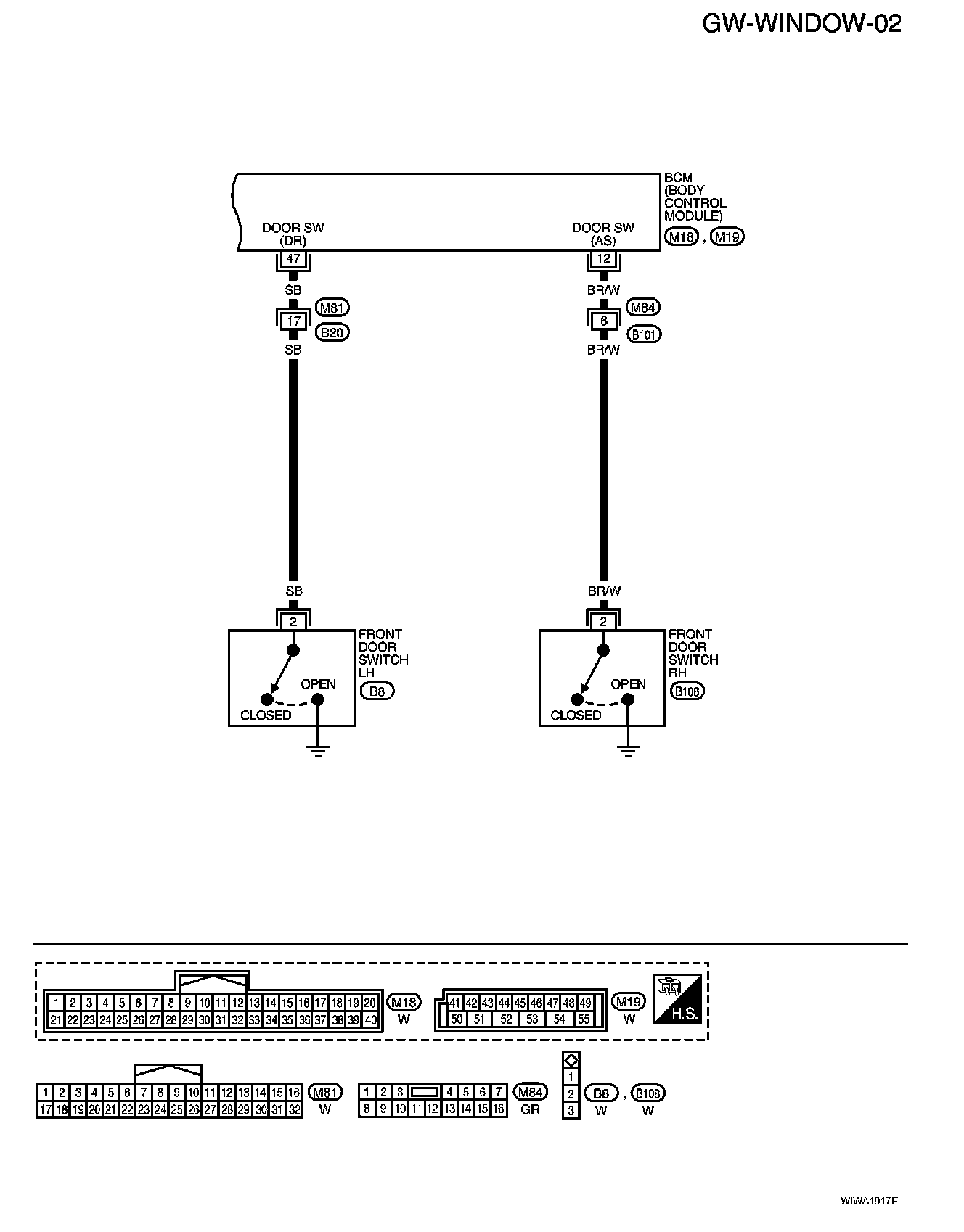

Wiring Diagram - Window - (With Front Left And Right Only Power Window Anti-Pinch System) - Part 1:

Wiring Diagram - Window - (With Front Left And Right Only Power Window Anti-Pinch System) - Part 2:

Wiring Diagram - Window - (With Front Left And Right Only Power Window Anti-Pinch System) - Part 3:

Wiring Diagram - Window - (With Front Left And Right Only Power Window Anti-Pinch System) - Part 4:

Wiring Diagram - Window - (With Front Left And Right Only Power Window Anti-Pinch System) - Part 5:

Wiring Diagram - WINDOW - (With Front and Rear Power Window Anti-pinch System)

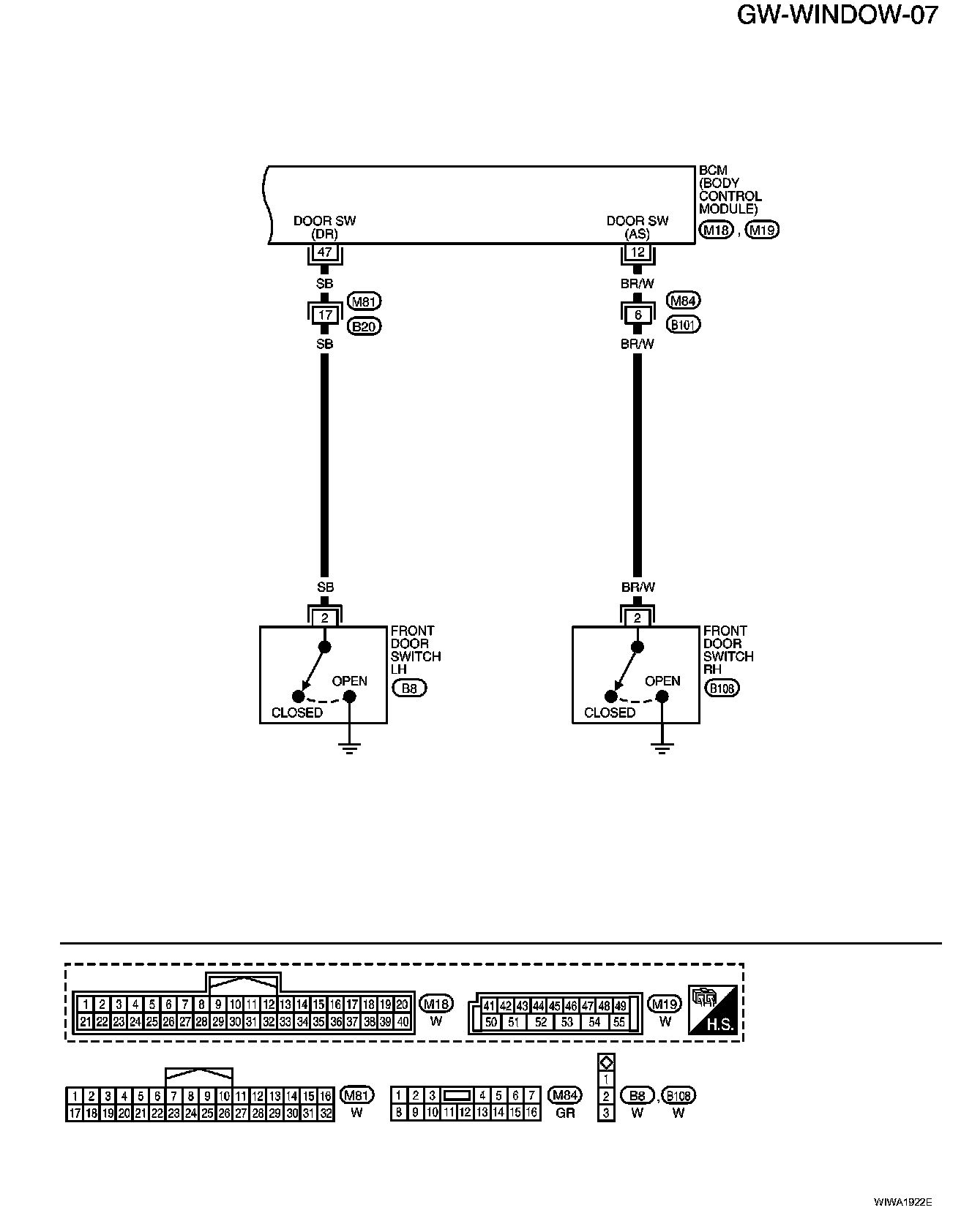

Wiring Diagram - Window - (With Front And Rear Power Window Anti-pinch System) - Part 1:

Wiring Diagram - Window - (With Front And Rear Power Window Anti-pinch System) - Part 2:

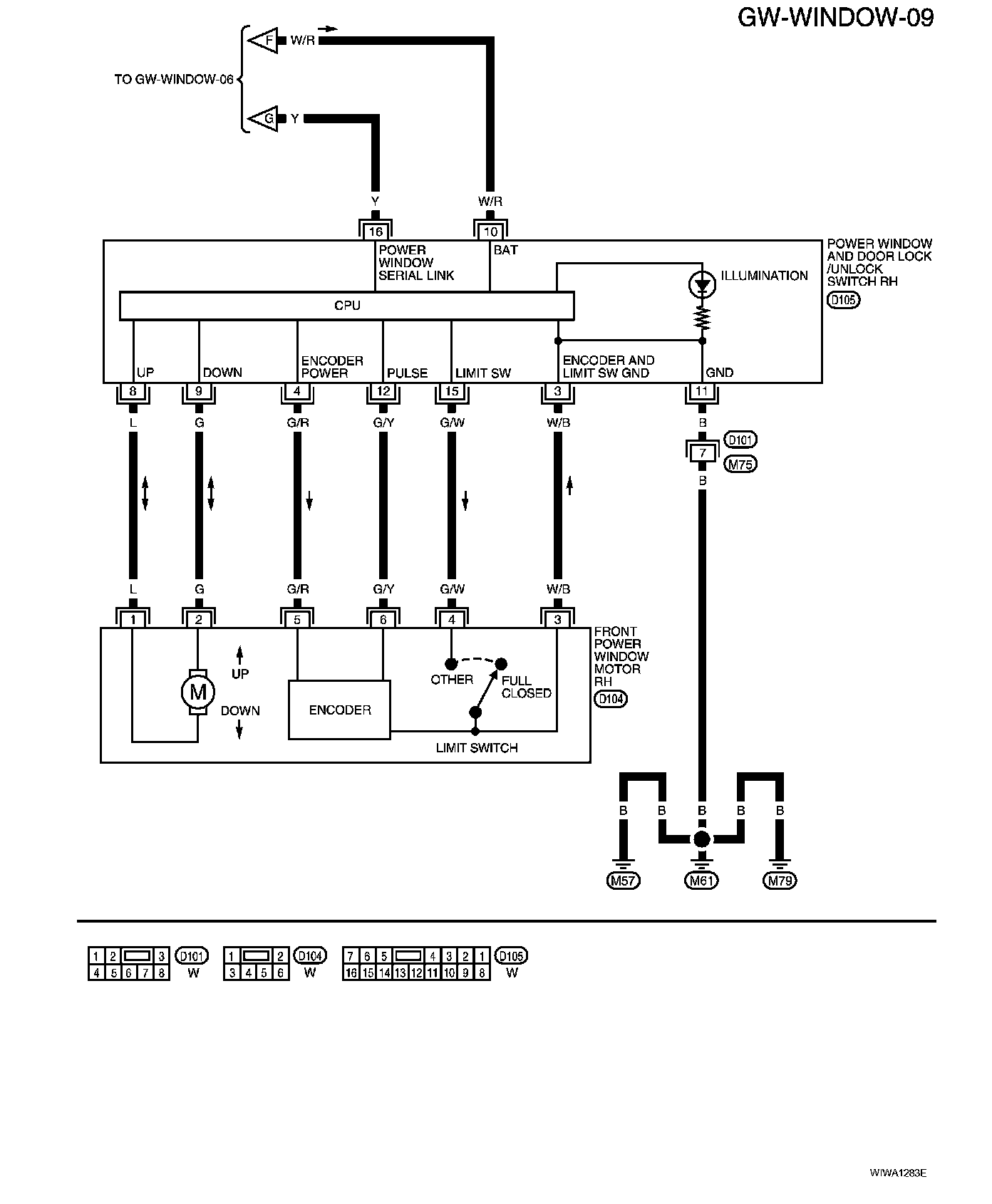

Wiring Diagram - Window - (With Front And Rear Power Window Anti-pinch System) - Part 3:

Wiring Diagram - Window - (With Front And Rear Power Window Anti-pinch System) Part 4:

Wiring Diagram - Window - (With Front And Rear Power Window Anti-pinch System) Part 5:

Wiring Diagram - Window - (With Front And Rear Power Window Anti-pinch System) Part 6:
