Ambient Temperature Sensor / Switch HVAC: Service and Repair

AMBIENT SENSOR

Removal and Installation




REMOVAL
1. Disconnect the ambient sensor connector.

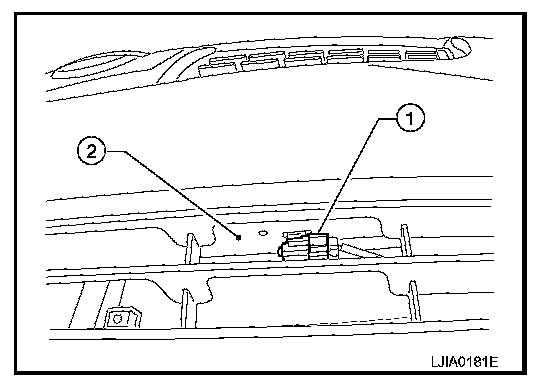

2. Release the ambient sensor (1) from the front bumper reinforcement (2).
3. Remove the ambient sensor.

INSTALLATION
Installation is in the reverse order of removal.
