HFC-134a (R-134a) Service Procedure

REFRIGERANT LINES

HFC-134a (R-134a) Service Procedure

SETTING OF SERVICE TOOLS AND EQUIPMENT

Exploded View ATC-109:

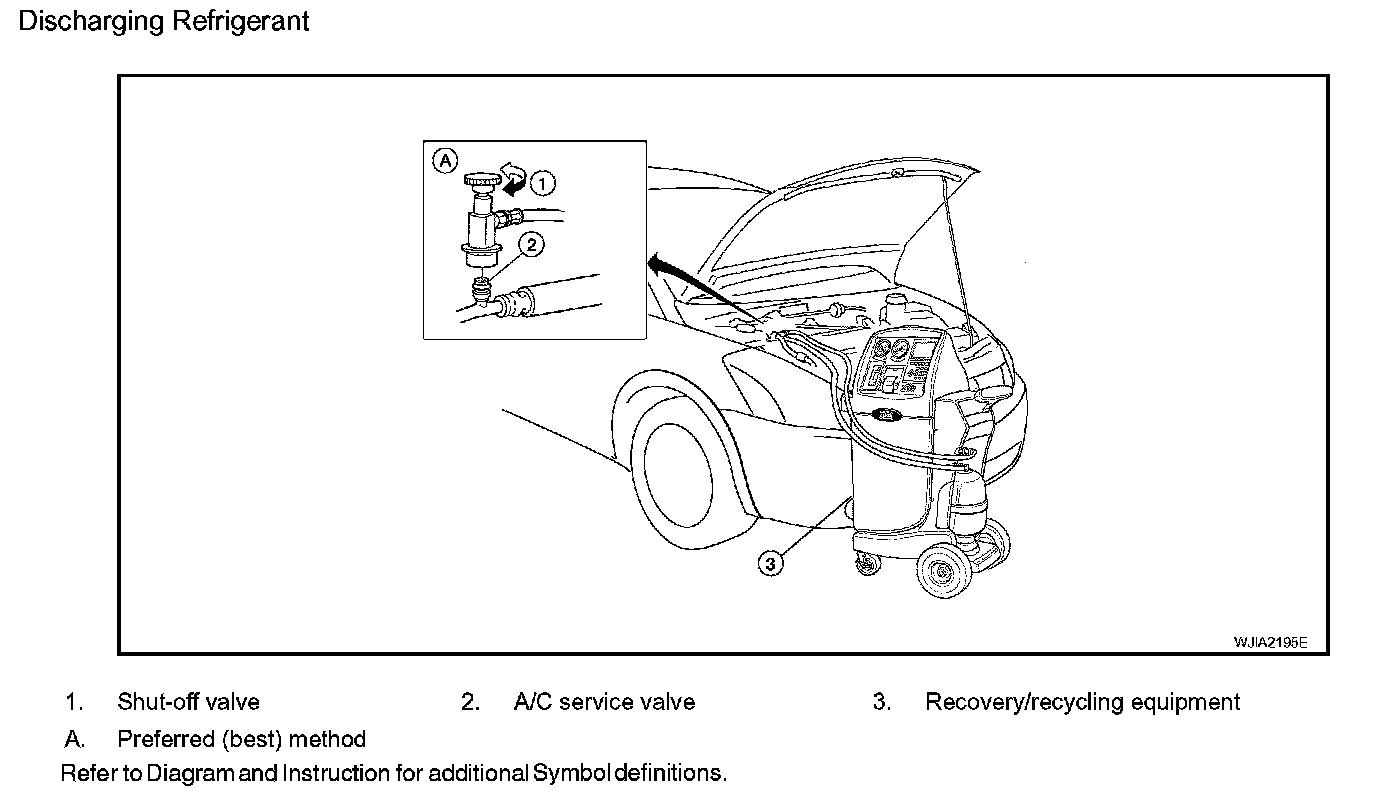

Discharging Refrigerant

WARNING: Avoid breathing A/C refrigerant and oil vapor or mist. Exposure may irritate eyes, nose and throat. Remove HFC-134a (R-134a) from A/C system using certified service equipment meeting requirements of SAE J2210 (R-134a recycling equipment) or SAE J2201 (R-134a recovery equipment). If accidental system discharge occurs, ventilate work area before resuming service. Additional health and safety information may be obtained from refrigerant and oil manufacturers.

Exploded View ATC-109:

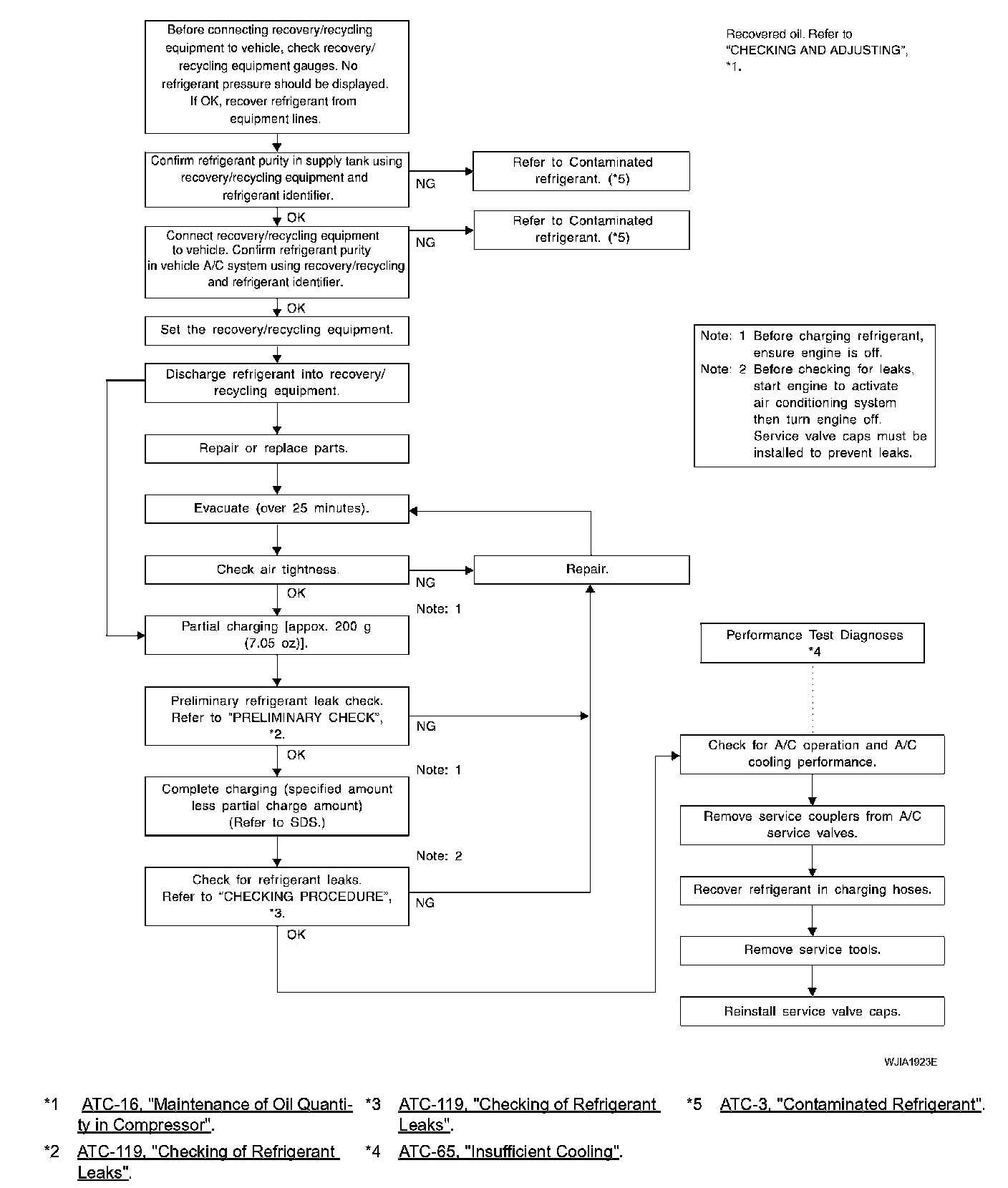

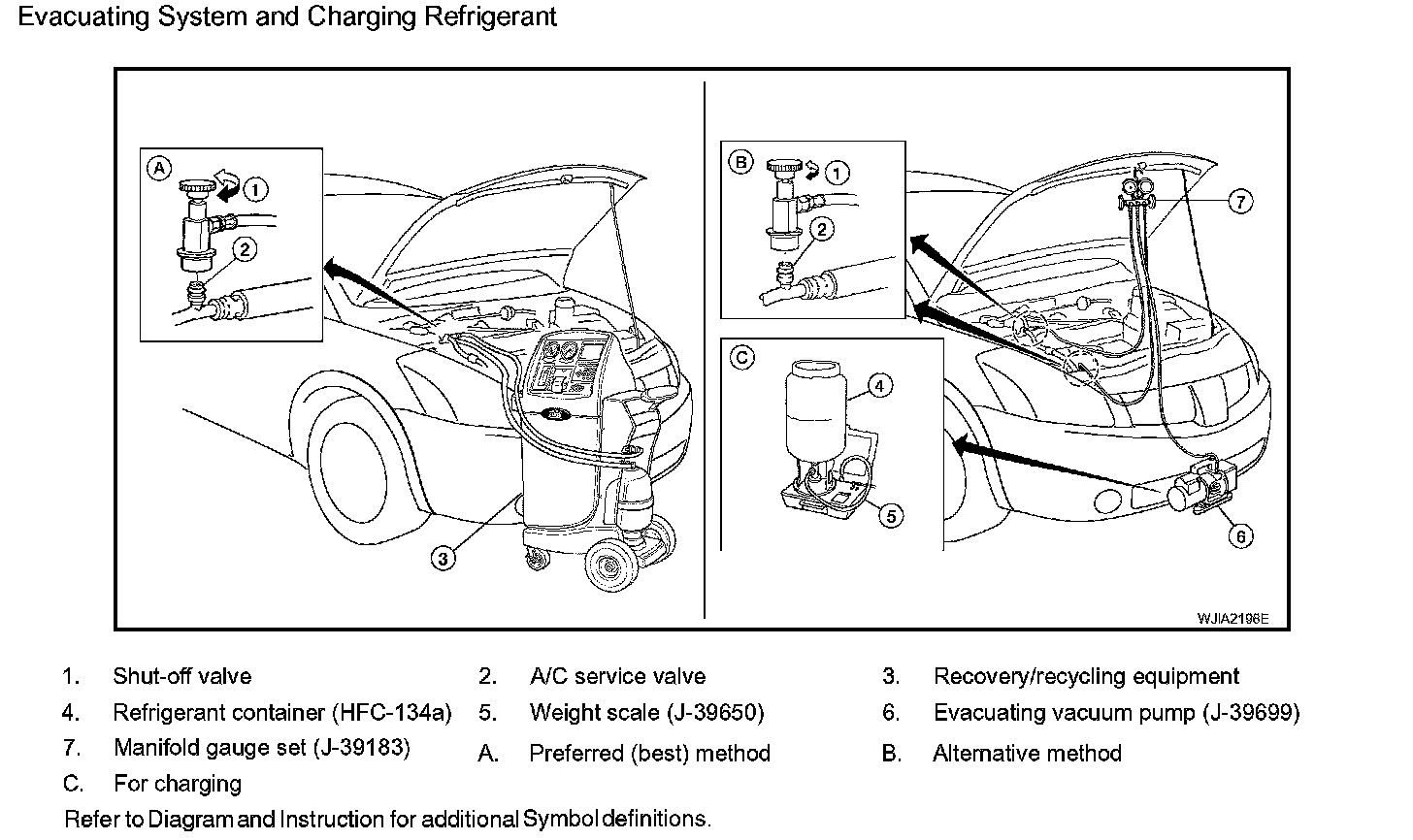

Evacuating System and Charging Refrigerant
