Compass: Adjustments

Zone Variation Change Procedure
The difference between magnetic North and geographical North can sometimes be great enough to cause false compass readings. This difference is known as variance. In order for the compass to operate properly (accurately) in a particular zone, the zone variation must be calibrated using the following procedure.






1. Determine your location on the zone map.
2. Turn the ignition switch to the ON position.

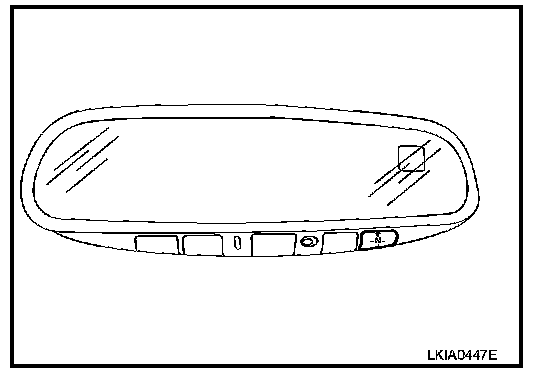

3. Press and hold the mode (N) switch for about 5 seconds. The current zone number will appear in the display.
4. Press the mode (N) switch repeatedly until the desired number appears in the display.

Once the desired zone number is displayed, stop pressing the mode (N) switch and the display will show a compass direction after a few seconds.

NOTE: Use zone number 5 for Hawaii.

CALIBRATION FUNCTION OF COMPASS




The direction display is equipped with a calibration feature. If vehicle direction is not shown correctly, carry out initial correction.

1. Press and hold the mode (N) switch for about 9 seconds. The display will read "C".
2. Drive the vehicle slowly in a circle, in an open, safe place. The initial calibration is completed in about three turns.

NOTE: In places where the terrestrial magnetism is extremely disturbed, the initial correction may start automatically.
