Overhaul

DISASSEMBLY AND ASSEMBLY

Instrument Panel

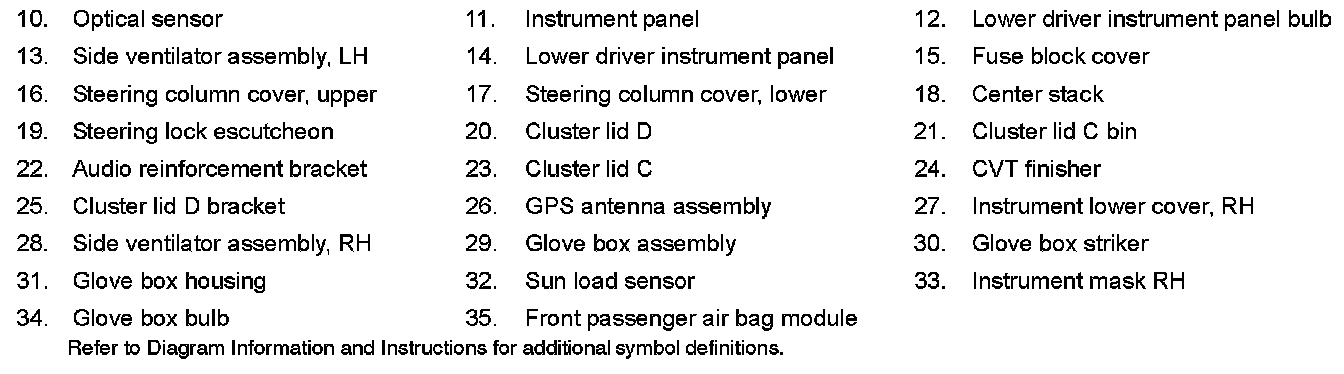

Exploded View IP-10:

Exploded View IP-11:

Disassembly

CAUTION: Keep track of appropriate screws used for each component, the screws for audio unit are different from those used for unified meter and A/C amp.

1. Remove the display unit(s) screws using power tool and remove the display unit(s) from the brackets.

CAUTION: Cover the display unit(s) with a cloth and avoid contact with brackets that may cause scratches or damage to the display unit(s).

2. Remove unified meter and A/C amp. screws using power tool and remove unified meter and A/C amp.
3. Remove automatic drive positioner control unit screws using power tool and remove automatic drive positioner control unit from brackets.
4. Remove display control unit screws using power tool and remove the display control unit from brackets.

NOTE: Display control unit only on vehicles with navigation system.

5. Remove audio unit screws using power tool and remove audio unit from brackets.

Assembly

CAUTION: Use appropriate screws for each component, the screws for audio unit are different from those used for unified meter and A/C amp.

Assembly is in the reverse order of disassembly.
