UNIFIED METER AND A/C AMP

System Description
- For the unified meter and A/C amp., the signal line (CAN-H, CAN-L and fuel level sensor) required for controlling the combination meter are integrated in the A/C auto amp.
- In addition to providing input to the A/C auto amp., signals required for combination meter operation are received from various components either directly, or via CAN communication. These signals are sent to the combination meter using the TX and RX communication lines between the combination meter and unified meter and A/C amp. For information regarding A/C control, refer to Automatic Air Conditioner System.
- The signals required for the distance to empty (DTE) display are centralized in the unified meter and A/C amp., converted into data, and sent to the display control unit using CAN communication.
- Other input signals are also sent to the ECM, TCM, display control unit and BCM using CAN communication.
- CONSULT-III functions (self-diagnostic results and data monitor) are used to identify errors in the communication lines connected to the unified meter and A/C amp., and to monitor the status of signals received by the combination meter from the unified meter and A/C amp.

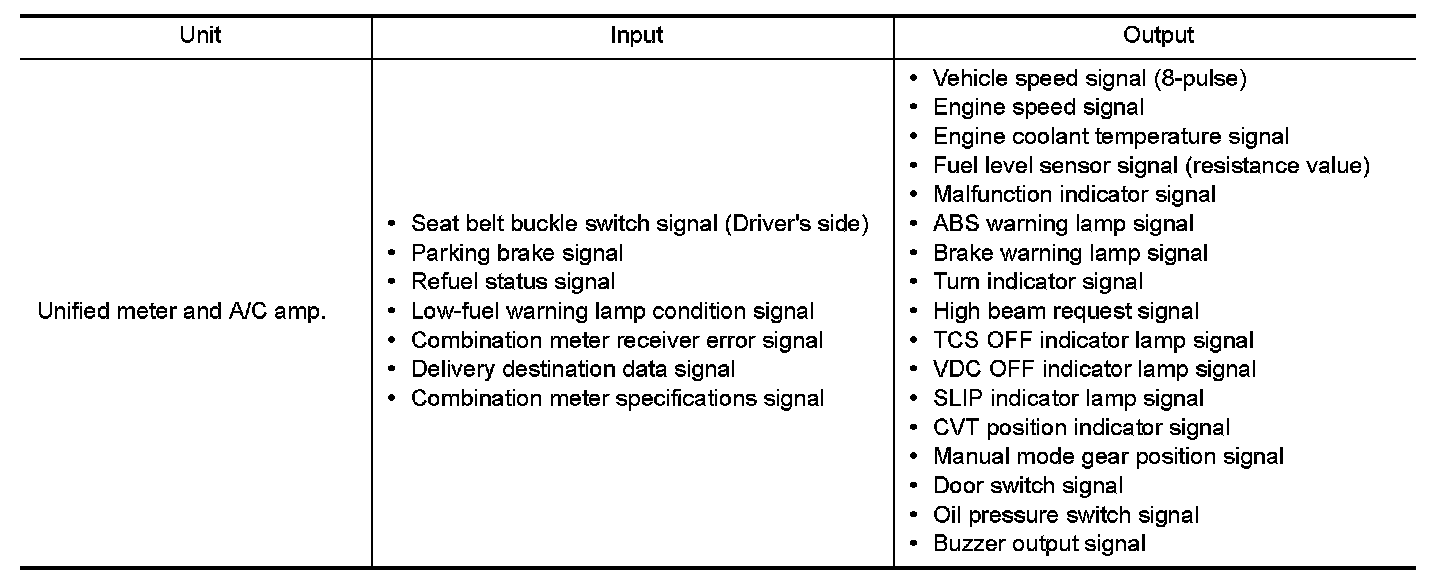

INPUT/OUTPUT SIGNALS
Between Unified Meter and A/C Amp. and Combination Meter

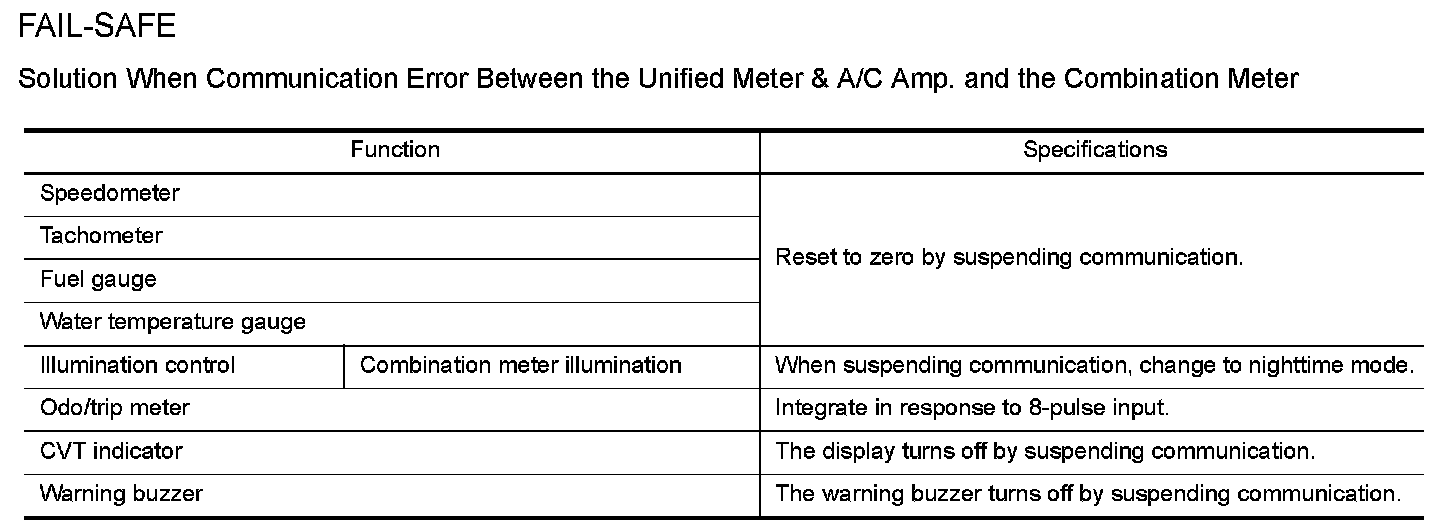

FAIL-SAFE

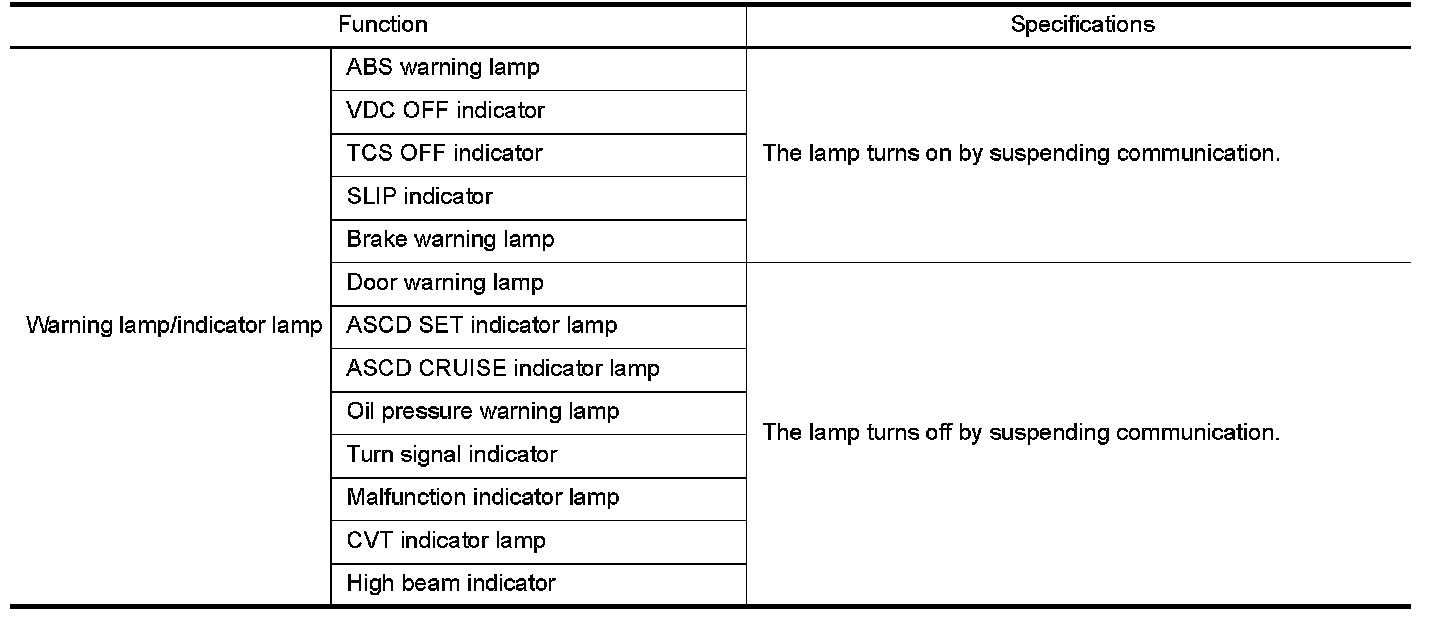

Solution When Communication Error Between the Unified Meter & A/C Amp. and the Combination Meter
