Operation Procedure

OPERATION PROCEDURE
1. Turn ignition switch ON, and switch the odo/trip meter to "trip A" or "trip B".

NOTE: If the diagnosis function is activated with trip meter A displayed, the mileage on trip meter A will indicate 0000.0 miles, but the actual trip mileage will be retained. (Trip B operates the same way.)

2. Turn ignition switch OFF.




3. While pushing the odo/trip meter switch (1), turn ignition switch ON again.
4. Make sure the trip meter displays "0000.0".
5. Push the odo/trip meter switch (1) at least 3 times within 5 seconds.

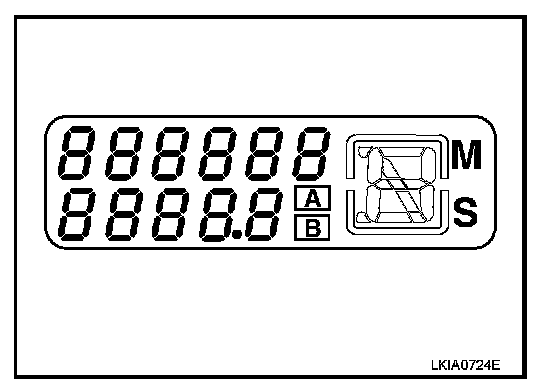

6. All the segments on the odo/trip meter and CVT indicator illuminate, and simultaneously the low-fuel warning lamp indicator illuminates. At this time, the unified meter control unit is turned to diagnosis mode.

NOTE: If any of the segments are not displayed, replace the combination meter.

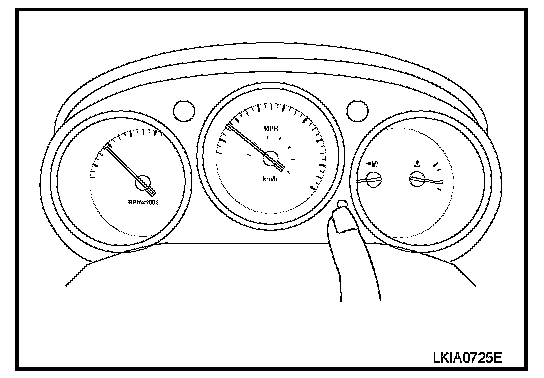

7. Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure while pushing odo/trip meter switch. (At this time, the low-fuel warning lamp goes off.)
