Fog/Driving Lamp: Adjustments

Aiming Adjustment






For details, refer to the regulations in your area.

NOTE: If the vehicle front body has been repaired and/or the front fog lamp assembly has been replaced, check front fog lamp aiming.

Front Fog Lamp Aiming

NOTE:
- Before performing front fog lamp aiming adjustment, check the following:
- Ensure all tires are inflated to correct pressure.
- Place vehicle and screen on level surface.
- Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).
Coolant and engine oil filled to correct level and fuel tank full.

- Confirm spare tire, jack and tools are properly stowed.
- Aim each front fog lamp individually and ensure other front fog lamp beam pattern is blocked from screen.
- Adjust front fog lamp aiming in the vertical direction by turning the adjusting screw.

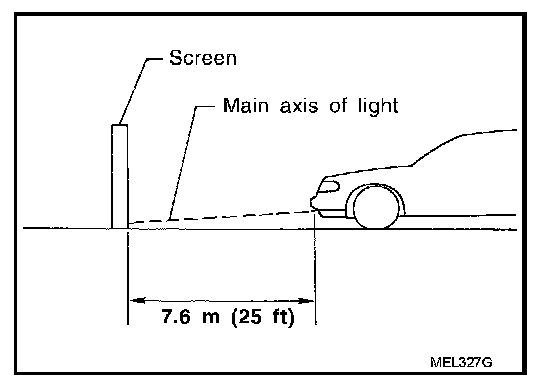

1. Set the distance between the screen and the center of the fog lamp lens as shown.
2. Turn front fog lamps ON.

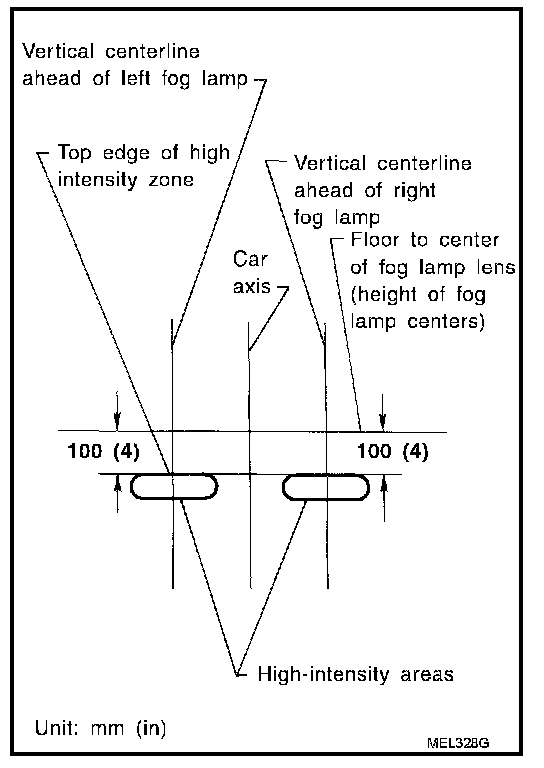

3. Adjust front fog lamps using adjusting screw so that the top edge of the high intensity zone is 100 mm (4 in) below the height of the fog lamp centers as shown.
