Disassembly And Assembly

Disassembly and Assembly

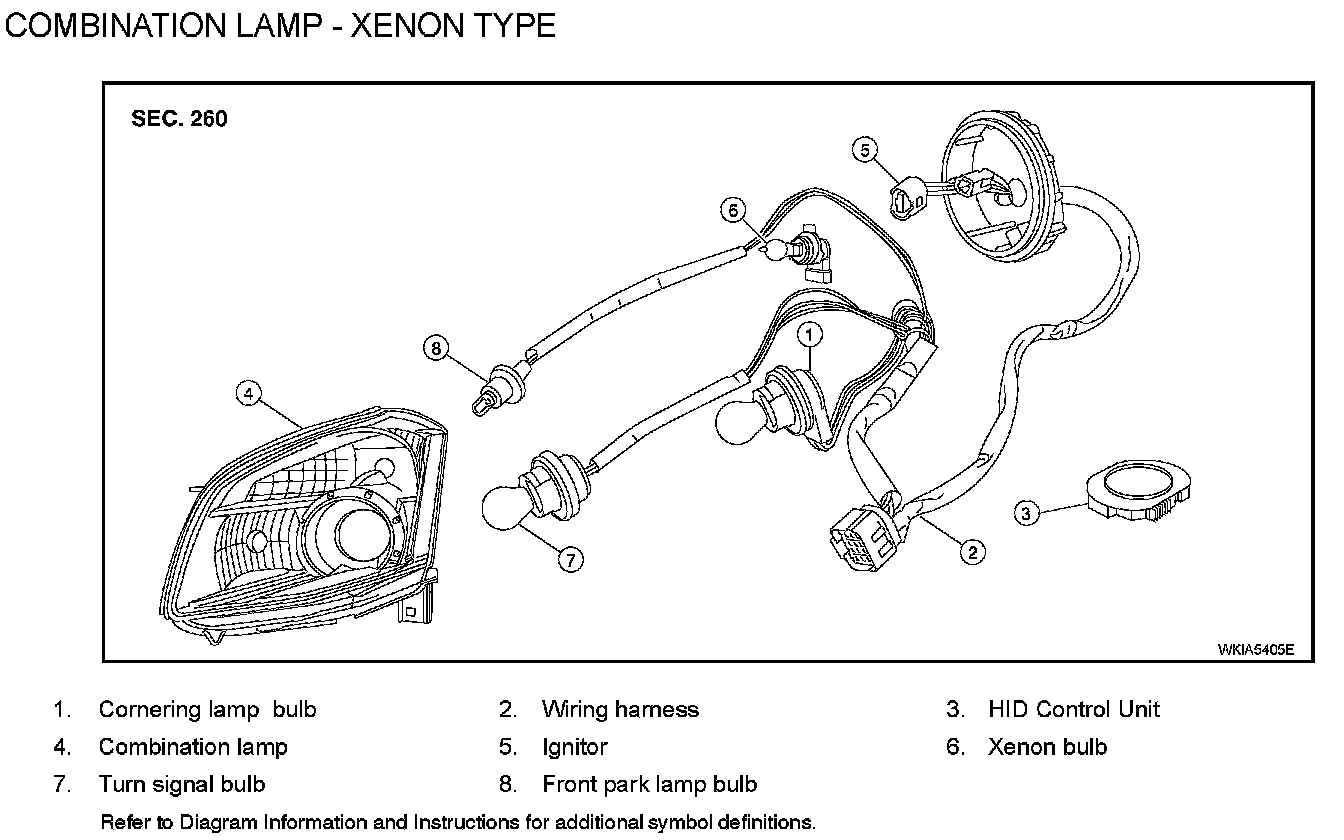

COMBINATION LAMP - XENON TYPE

Exploded View LT-32:

Disassembly
1. Turn the headlamp bulb plastic cap counterclockwise and remove plastic cap.
2. Turn the xenon bulb socket counterclockwise and remove socket.
3. Turn the cornering lamp socket counterclockwise and remove bulb.
4. Turn the front park/turn signal lamp bulb socket counterclockwise and remove bulb.

Assembly
Assembly is in the reverse order of disassembly.

CAUTION: After installing the xenon bulb, be sure to install the bulb socket and plastic cap securely to ensure watertightness.

COMBINATION LAMP - HALOGEN TYPE

Exploded View LT-33:

CAUTION: After installing the xenon bulb, be sure to install the bulb socket and plastic cap securely to ensure watertightness.

Disassembly
1. Turn the headlamp bulb plastic cap counterclockwise and remove plastic cap.
2. Disconnect the electrical connectors from the bulb terminals.
3. Turn the halogen lamp bulb socket counterclockwise and remove bulb.
4. Turn the high beam lamp socket counterclockwise and remove bulb.
5. Turn the front turn signal lamp bulb socket counterclockwise and remove bulb.

Assembly
Assembly is in the reverse order of disassembly.
