Removal And Installation

Removal and Installation

COMBINATION LAMP

Removal
1. Ensure lighting switch is OFF.
2. Disconnect negative battery cable.
3. Remove the front fascia.

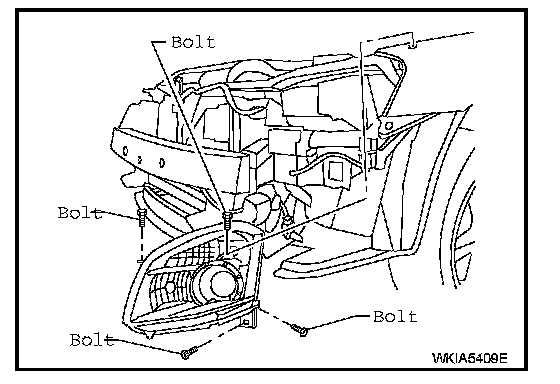

4. Remove the combination lamp bolts.
5. Pull combination lamp toward the front of the vehicle, disconnect connector and remove from vehicle.

Installation
Installation is in the reverse order of removal.
- Check headlamp aiming adjustment.
