General Precaution
General PrecautionWARNING: When replacing fuel line parts, be sure to observe the following
- Put a "CAUTION: INFLAMMABLE" sign in the work area.
- Be sure to work in a well ventilated area and have a CO2 fire extinguisher
- Do not smoke while working on the fuel system. Keep open flames and sparks away from the work area.
CAUTION:
- Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in safe area.
- Release fuel pressure from the fuel lines. Refer to EC-77, "Fuel Pressure Check". Testing and Inspection
- Disconnect the battery ground cable.
- Always replace O-rings and clamps with new ones.
- Do not kink or twist tubes when they are being installed.
- Do not tighten hose clamps excessively to avoid damaging hoses.

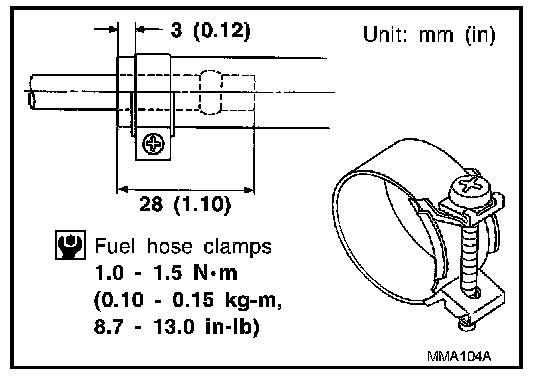

Tighten high-pressure rubber hose clamp so that clamp end is 3 mm (0.12 in) from hose end.
Tightening torque specifications are the same for all rubber hose clamps.
Ensure that screw does not contact adjacent parts.
- After connecting the fuel tube quick connectors, make sure the quick connectors are secure.
Ensure that the connector and resin tube do not contact any adjacent parts.
a. Apply fuel pressure to the fuel lines by turning the ignition switch to ON (without starting the engine). Then check for fuel leaks at the fuel tube connections.
b. Start the engine and rev the engine, then check for fuel leaks at the fuel tube connections.
- After installing tubes, run engine and check for fuel leaks at connections.
- Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
- For servicing "Evaporative Emission System" parts, refer to "Evaporative Emission System".
- For servicing "On Board Refueling Vapor Recovery (ORVR)" parts, refer to EC-36. Symptom Related Diagnostic Procedures
VENTILATION
Do not operate the engine for an extended period of time without proper exhaust ventilation.
Keep the work area well ventilated and free of any inflammable materials. Special care should be taken when handling any inflammable or poisonous materials such as gasoline refrigerant gas etc. When working in a pit or other enclosed area be sure to properly ventilate the area before working with hazardous materials.
SMOKING
Do not smoke while working on the vehicle.
VEHICLE LIFTING AND SUPPORTING
Before jacking up the vehicle apply wheel chocks or other tire blocks to the wheels to prevent the vehicle from moving. After jacking up the vehicle support the vehicle weight with safety stands at the points designated for proper lifting before working on the vehicle.
These operations should be done on a level surface.
When removing a heavy component such as the engine or transaxle/transmission be careful not to lose your balance and drop it. Also do not allow it to strike adjacent parts especially the brake tubes and master cylinder.
BEFORE REPAIRS THAT DON'T REQUIRE BATTERY POWER
Turn off ignition switch.
Disconnect the negative battery terminal.
PREVENTING BURNS
Avoid contact with hot metal parts.
Do not remove the radiator cap when the engine is hot.
Dispose of drained oil or the solvent used for cleaning parts in an appropriate manner.
Do not attempt to top off the fuel tank after the fuel pump nozzle shuts off automatically.
Continued refueling may cause fuel overflow, resulting in fuel spray and possibly a fire.
SERVICING THE VEHICLE
Protect fenders upholstery and carpeting with appropriate covers.
Take caution that keys buckles or buttons do not scratch paint.
Clean all disassembled parts in the designated liquid or solvent prior to inspection or assembly.
Replace oil seals gaskets packings O-rings locking washers cotter pins self-locking nuts etc. with new ones.
Replace inner and outer races of tapered roller bearings and needle bearings as a set.
Arrange the disassembled parts in accordance with their assembled locations and sequence.
Do not touch the terminals of electrical components which use microcomputers (such as ECMs).
Static electricity may damage internal electronic components.
After disconnecting vacuum or air hoses attach a tag to indicate the proper connection.
Use only the fluids and lubricants as specified.
Use approved bonding agents sealants or their equivalents when required.
Use tools and recommended special tools where specified for safe and efficient service repairs.
When repairing fuel oil water vacuum or exhaust systems check all affected lines for leaks.
Dispose of drained oil or the solvent used for cleaning parts in an appropriate manner.
WARNING: To prevent ECM from storing the diagnostic trouble codes, do not carelessly disconnect the harness connectors which are related to the engine control system and TCM (Transmission Control Module) system. The connectors should be disconnected only when working according to the DIAGNOSTIC STRATEGIES / WORK FLOW in Computers and Control Systems, and Transmission Control Systems / Testing and Inspection
