Maxima V6-3.5L (VQ35DE)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Transaxle Assembly
Transaxle Assembly

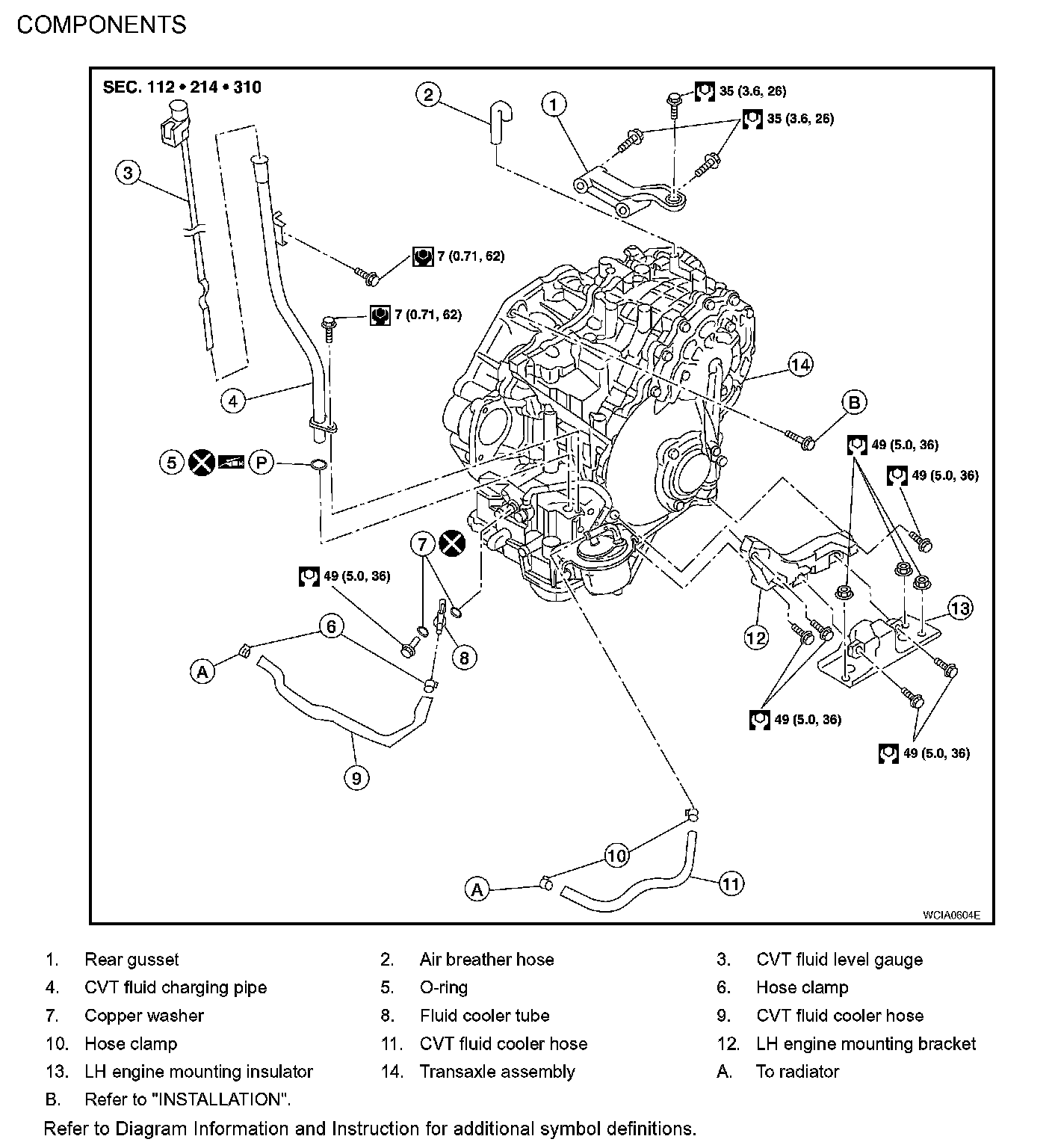

CVT-176 Components:
