System Specifications

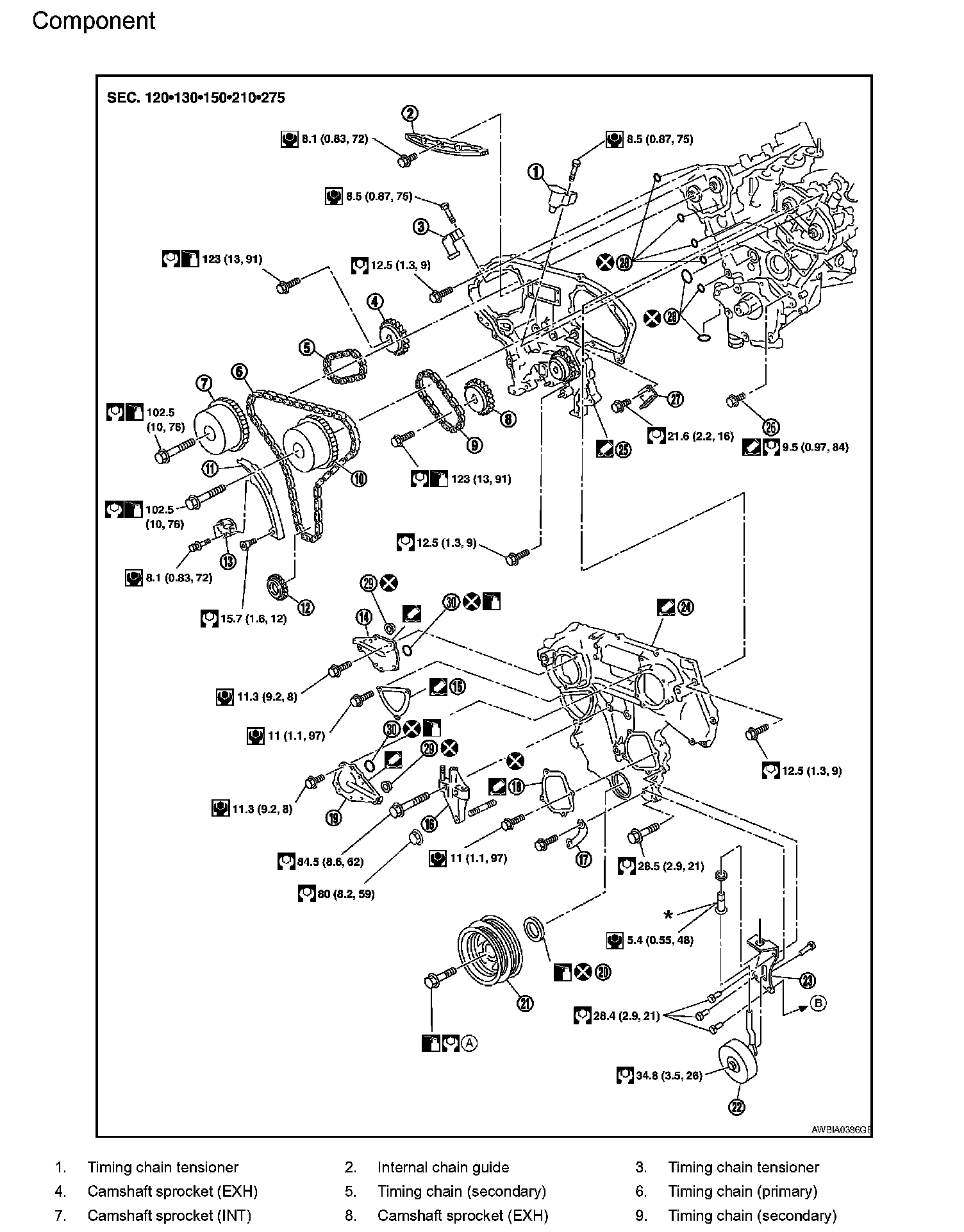

Timing Chain TensionerEM-55 Component (Part 1):

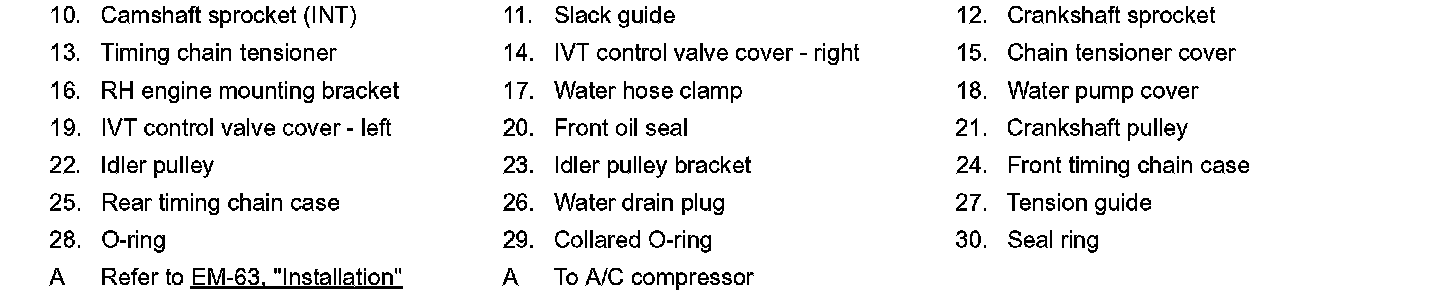

EM-55 Component (Part 2):
Crankshaft Pulley
Install crankshaft pulley and tighten the bolt in two steps.
Lubricate thread and seat surface of the bolt with new engine oil.
For the second step of angle tightening. Use Tool.
Step 1 44 Nm (4.5 kg-m, 32 ft-lb)
Step 2 90 degrees clockwise
Tool number KV10112100 (BT-8653-A)
Timing Cover
Loosely install the front timing chain case bolts.
Bolt position Bolt diameter
1, 2 8 mm (0.31 in)
3-22 6 mm (0.24 in)

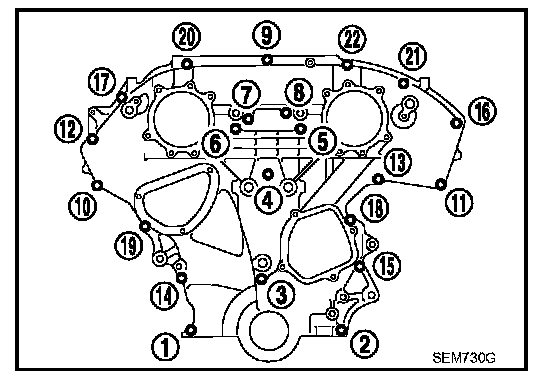

Tighten the front timing chain case bolts in the order as shown.
Retighten the front timing chain case bolts in the order as shown.
Bolt position Tightening specification
1, 2 28.5 Nm (2.9 kg-m, 21 ft-lb)
3-22 12.8 Nm (1.3 kg-m, 9 ft-lb)
