Tightening Torque and Sequence


Exhaust Manifold

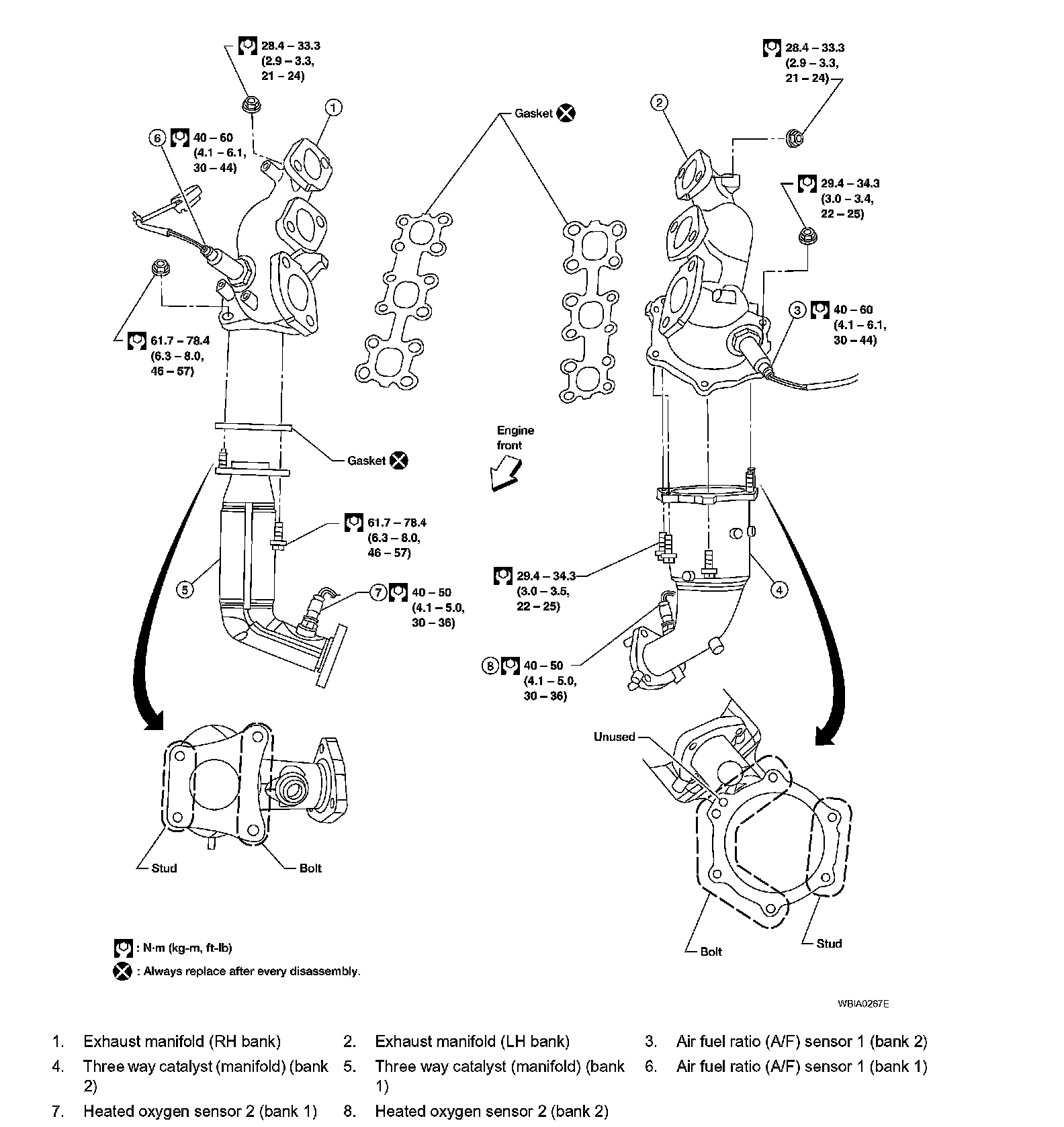

EM-26 Component:

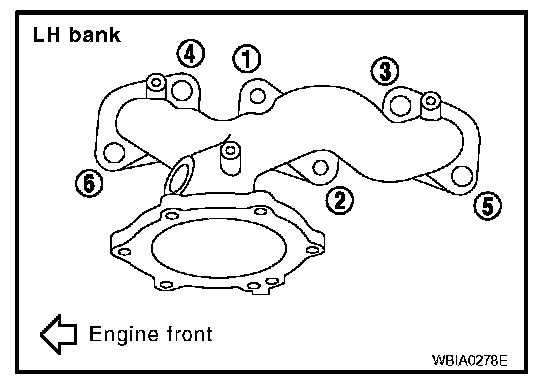

Install the exhaust manifold nuts in the order as shown.
