Removal and Replacement

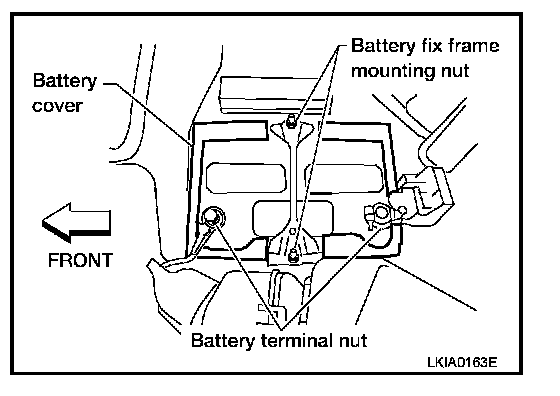

Removal and InstallationREMOVAL
1. Disconnect negative battery terminal and positive battery terminal.
CAUTION: When removing, remove negative battery terminal first.
2. Remove battery frame mounting nuts and battery frame.
3. Remove battery cover.
4. Remove battery.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION: When installing, install positive battery terminal first.
Battery frame mounting nut : 4.45 N.m (0.45 kg.m, 39 in.lb)
Battery terminal nut : 3.45 N.m (0.35 kg.m, 31 in.lb)

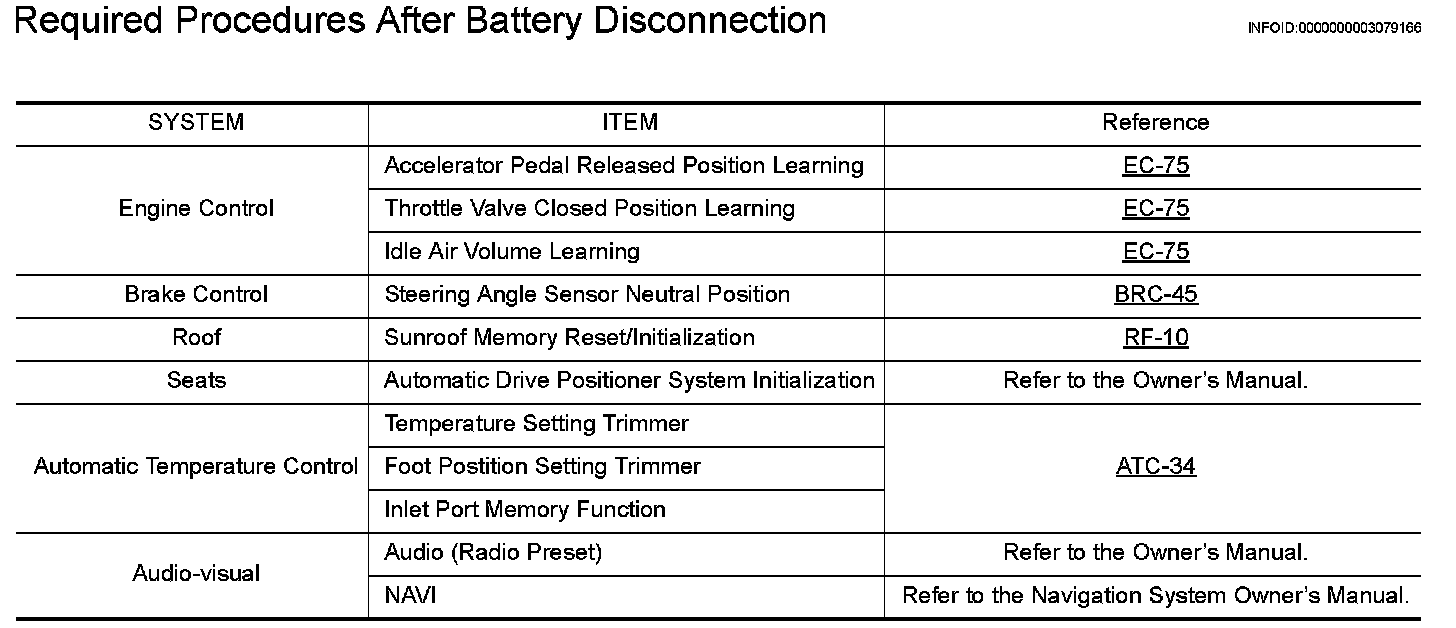

Required Procedures After Battery Disconnection
