Front Wiper Operates For 10 Sec-Stop For 20 Sec-Repeating Operation 5 Times-Become Inop

FRONT WIPER AND WASHER SYSTEM


Front Wipers Operate for 10 Seconds, Stop for 20 Seconds, and After Repeating This Operation Five Times, They Become Inoperative


CAUTION:
- When auto stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front wipers, IPDM E/R considers front wipers locked and stops wiper output, which causes this symptom.
- This status can be checked by using IPDM E/R "DATA MONITOR". Under this condition, "WIP PROT" reads "BLOCK".
1.CHECK IPDM E/R TO FRONT WIPER MOTOR
With CONSULT-III
Select "IPDM E/R" with CONSULT-III. With "DATA MONITOR", confirm that "WIP AUTO STOP" changes from "ACT P" to "STOP P" according to wiper operation.
Without CONSULT-III
GO TO 2.
OK or NG
OK - Replace IPDM E/R. Service and Repair.
NG - GO TO 2.
2.IPDM E/R TO FRONT WIPER MOTOR AUTO STOP CIRCUIT INSPECTION
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connector.





3. Check continuity between IPDM E/R harness connector terminal and front wiper motor harness connector terminal.

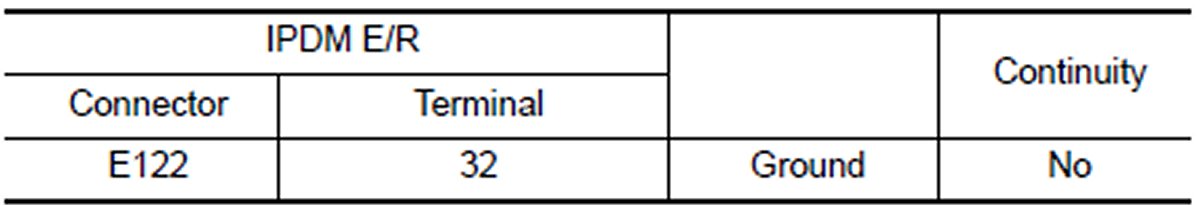

4. Check continuity between IPDM E/R harness connector terminal and ground.





OK or NG
OK - Connect connectors. GO TO 3.
NG - Repair harness or connector.
3.IPDM E/R TO FRONT WIPER MOTOR AUTO STOP CIRCUIT VOLTAGE
1. Turn ignition switch ON.
2. Select "LO" on "ACTIVE TEST" screen.

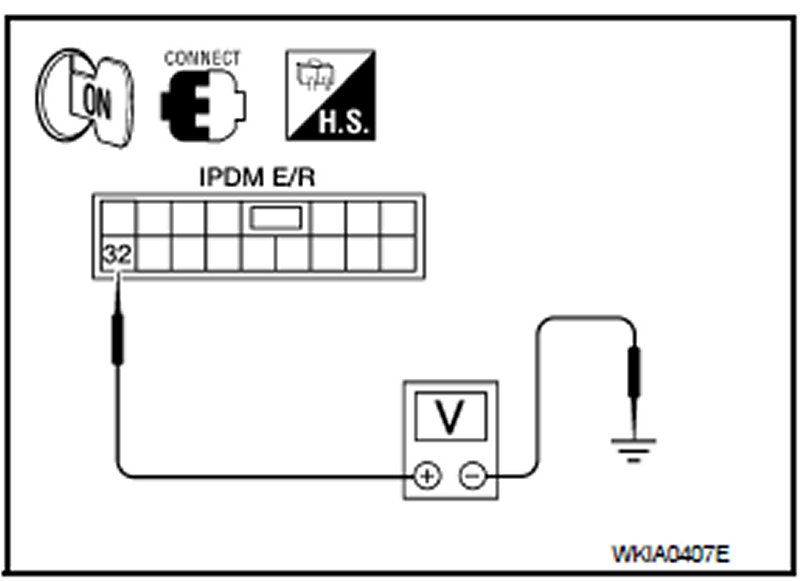

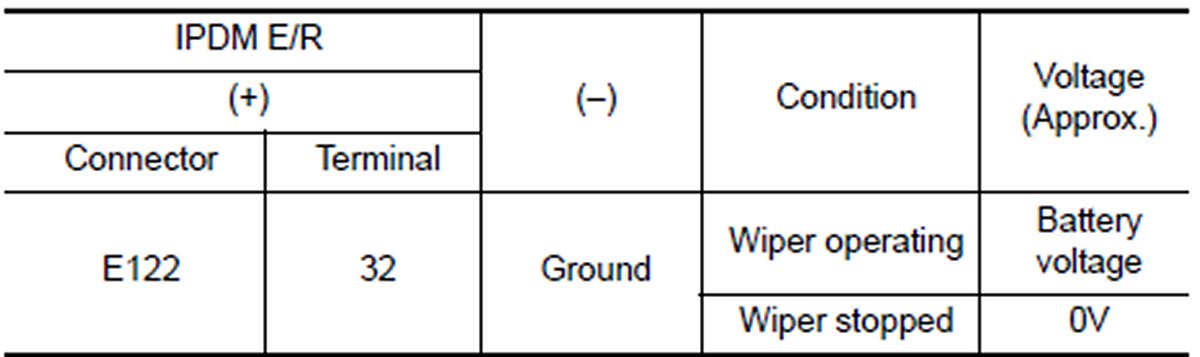

3. While front wiper motor is stopped and while operating, measure voltage between IPDM E/R terminal 32 and ground.





OK or NG
OK - Replace IPDM E/R. Service and Repair.
NG - Replace front wiper motor. Service and Repair.
