Grille: Service and Repair

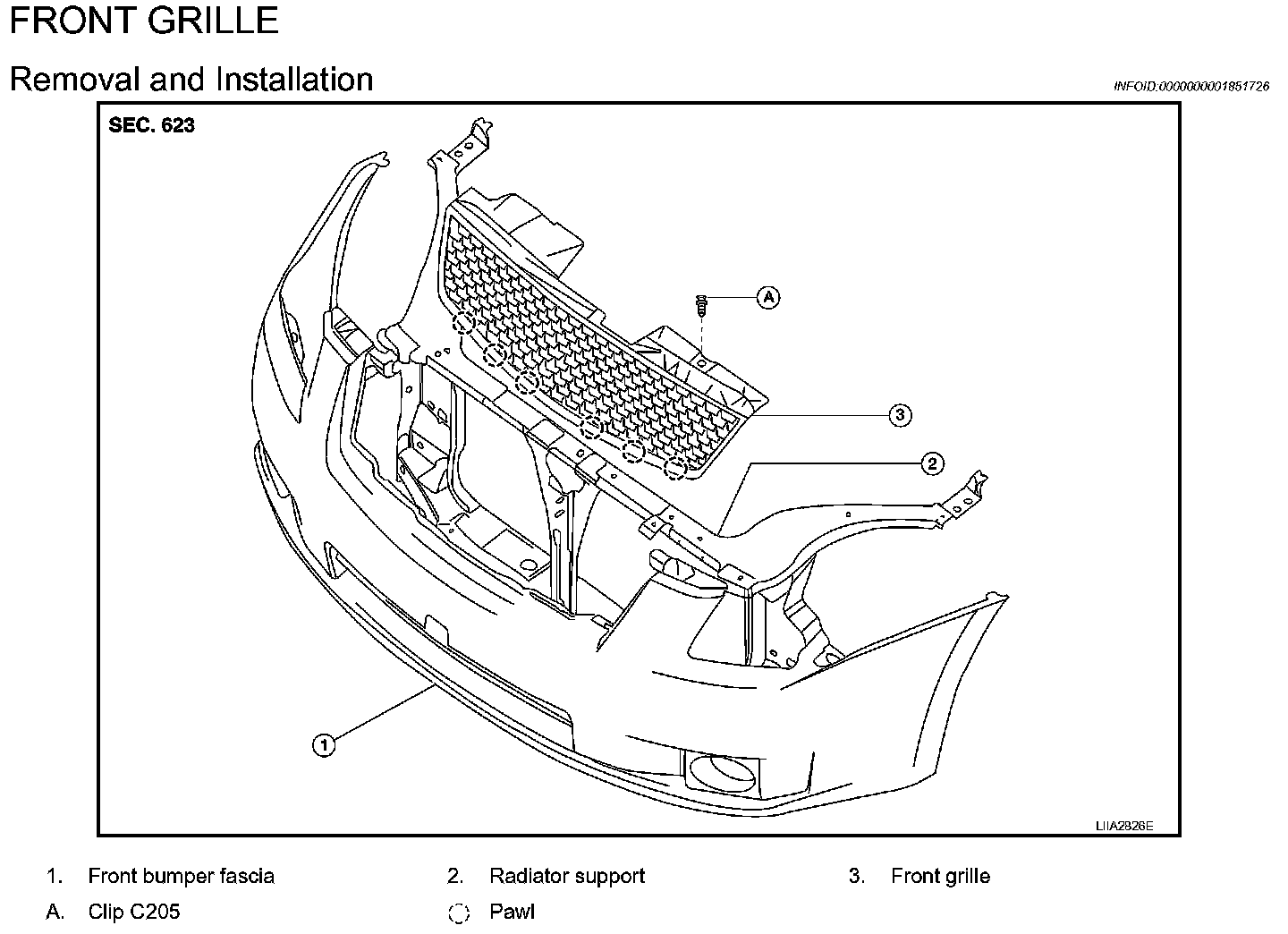

FRONT GRILLE

Removal and Installation






REMOVAL
1. Open hood.
2. Remove the upper clips and release the lower pawls, then pull front grille outward to remove from front bumper fascia and radiator support.

INSTALLATION
Installation is in the reverse order of removal.
