Sunroof / Moonroof

SUNROOF

Wiring Diagram - SROOF -

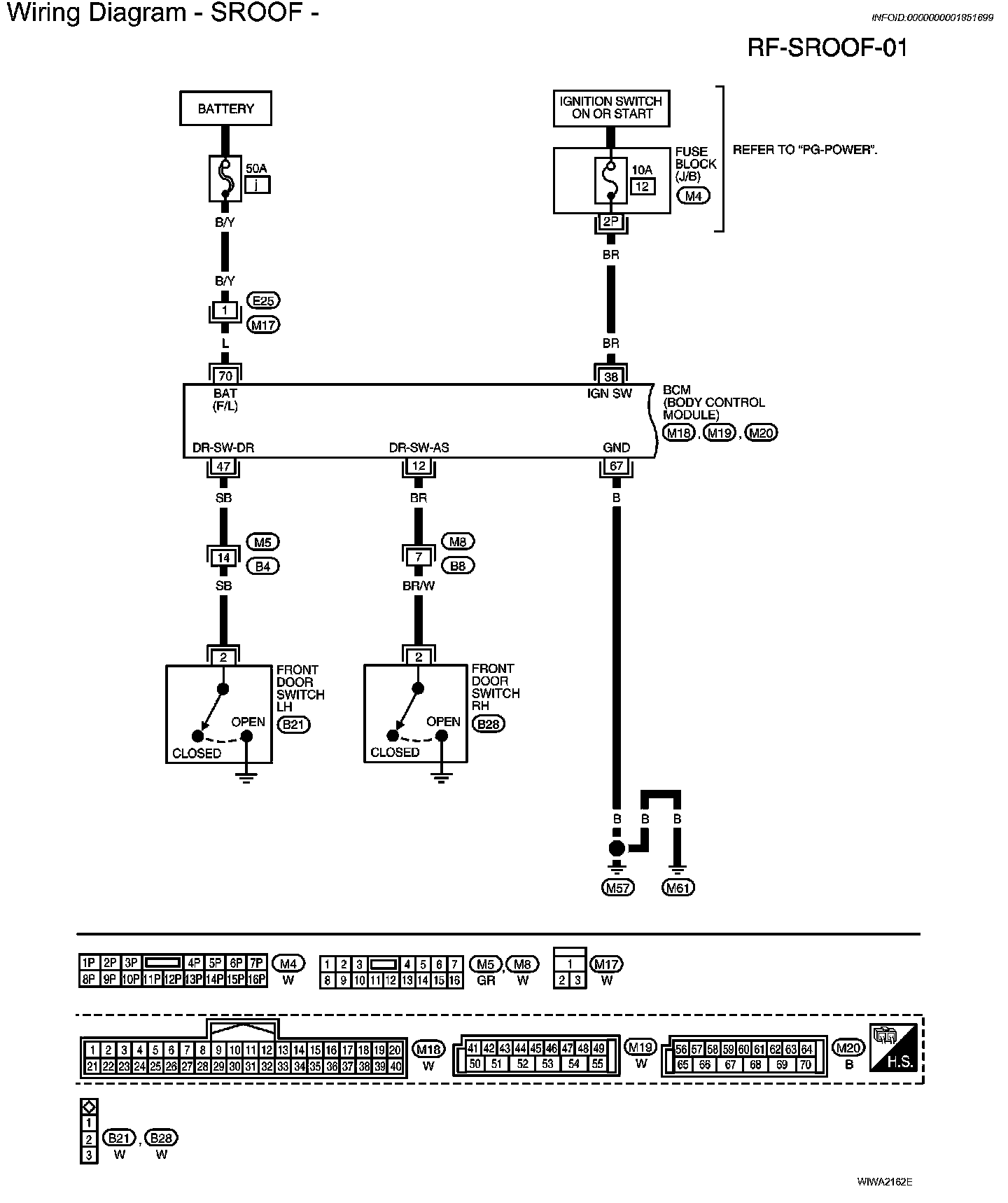

Wiring Diagram - SROOF - Part 1:

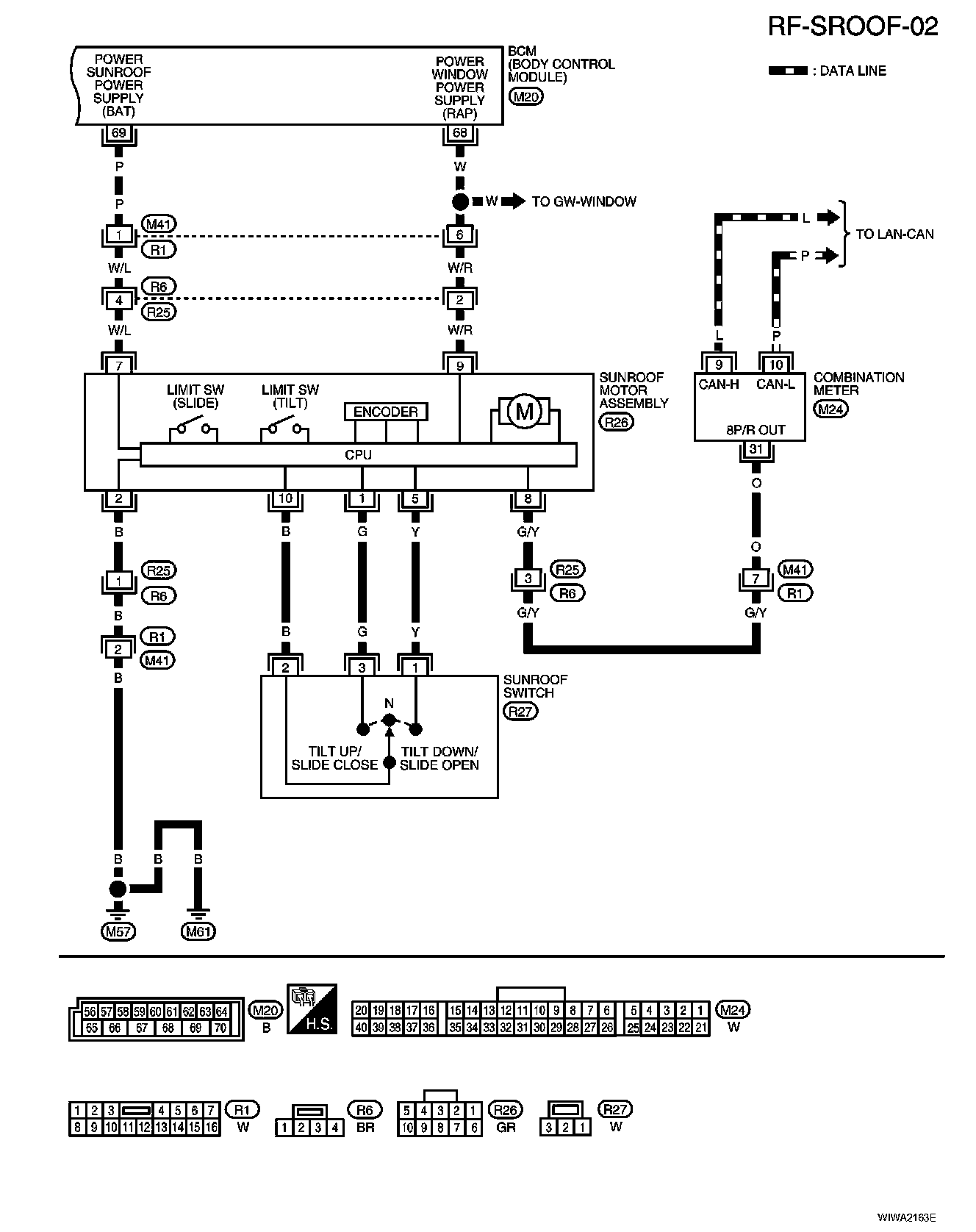

Wiring Diagram - SROOF - Part 2:
