Heater Core: Service and Repair

HEATER CORE

Removal and Installation

REMOVAL
1. Remove the heater and cooling unit assembly. Service and Repair

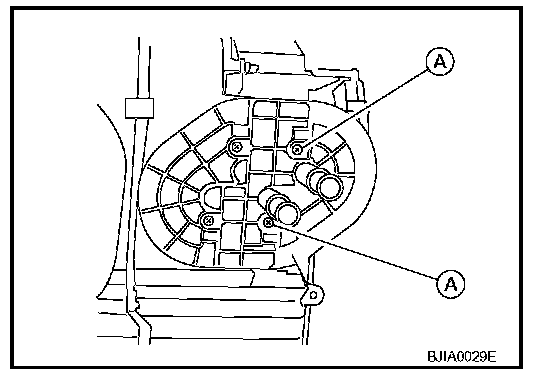

2. Remove the heater core pipe support screws (A) and then remove it.




3. Remove the heater core (1) from the heater and cooling unit assembly (2).

INSTALLATION
Installation is in the reverse order of removal.
