Interior - Dash Foam Covering VIN Plate

Classification: BT07-038

Reference: NTB07-076

Date: October 22, 2007

I/P FOAM MOVEMENT OVER VIN PLATE

APPLIED VEHICLES:
2007-2008 Sentra (B16)

APPLIED VIN:
Vehicles built before: 3N1(*)B61E(*)8L609770

APPLIED DATE:
Vehicles built before: 03-August-2007

IF YOU CONFIRM:





The dashboard VIN has become obscured by I/P foam.

ACTION:





Using a finesse stick or similar tool, push the foam back into position at the base of the windshield.

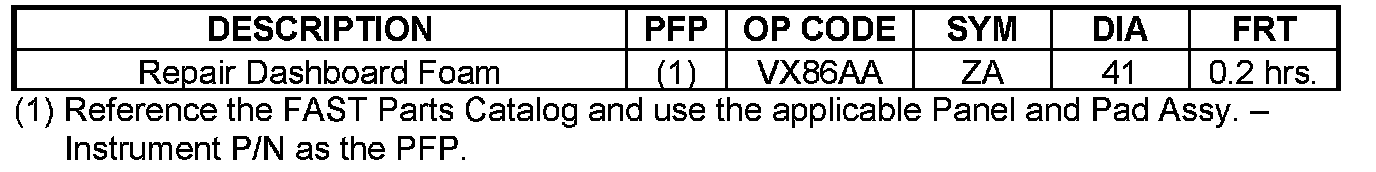

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding table.
