Windshield Washer Motor: Service and Repair

Removal and Installation of Front Washer Motor

REMOVAL
1. Remove the front fender protector RH.

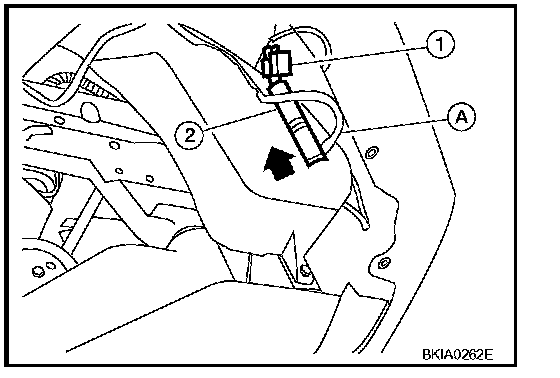

2. Disconnect washer motor connector (1) and detach the washer tube (A).
3. Pull out washer motor (2) in the direction shown. Remove the washer motor (2) from washer fluid reservoir.

INSTALLATION
Installation is in the reverse order of removal.

CAUTION: When installing washer motor, there should be no hose twists.
