Windshield Washer Spray Nozzle: Service and Repair

Removal and Installation of Front Washer Nozzle

REMOVAL
1. Remove cowl top cover.
2. Remove washer tube.

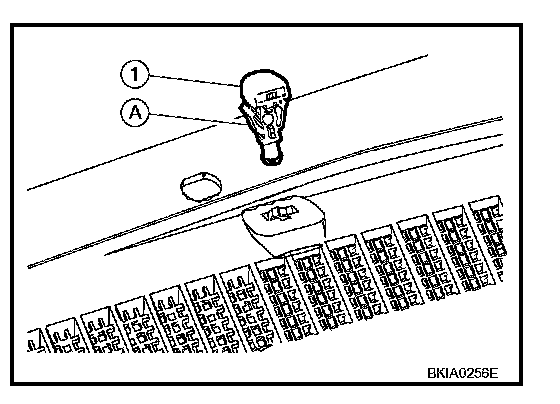

3. While pressing pawl (A) on the reverse side of front washer nozzle (1), remove front washer nozzle (1) from cowl top cover.

INSTALLATION
Installation is in the reverse order of removal.
