Home >> Nissan-Datsun >> 2008 >> Sentra L4-2.5L (QR25DE) >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams

Electrical Diagrams

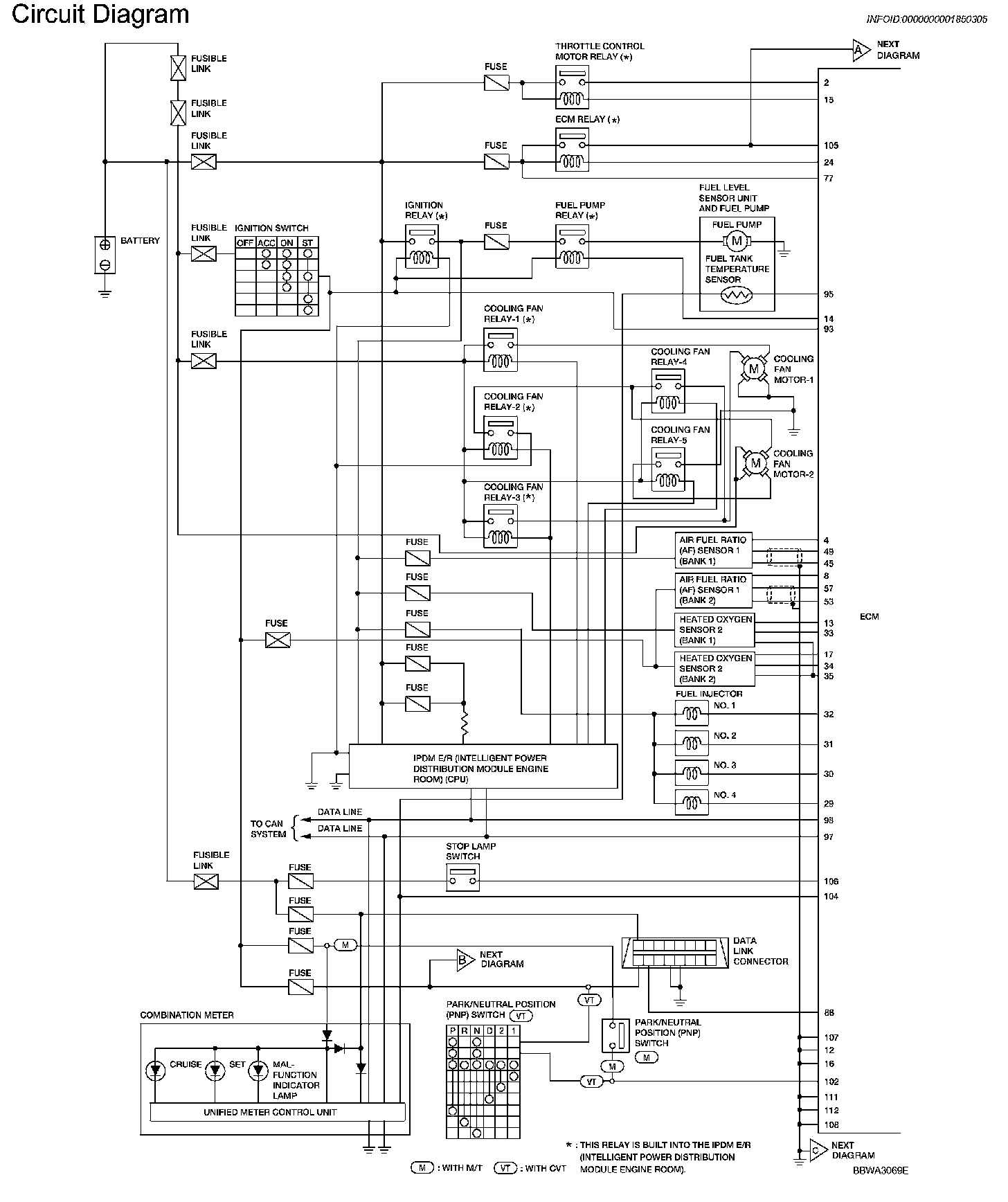

Engine Control System Diagram (Part 1):

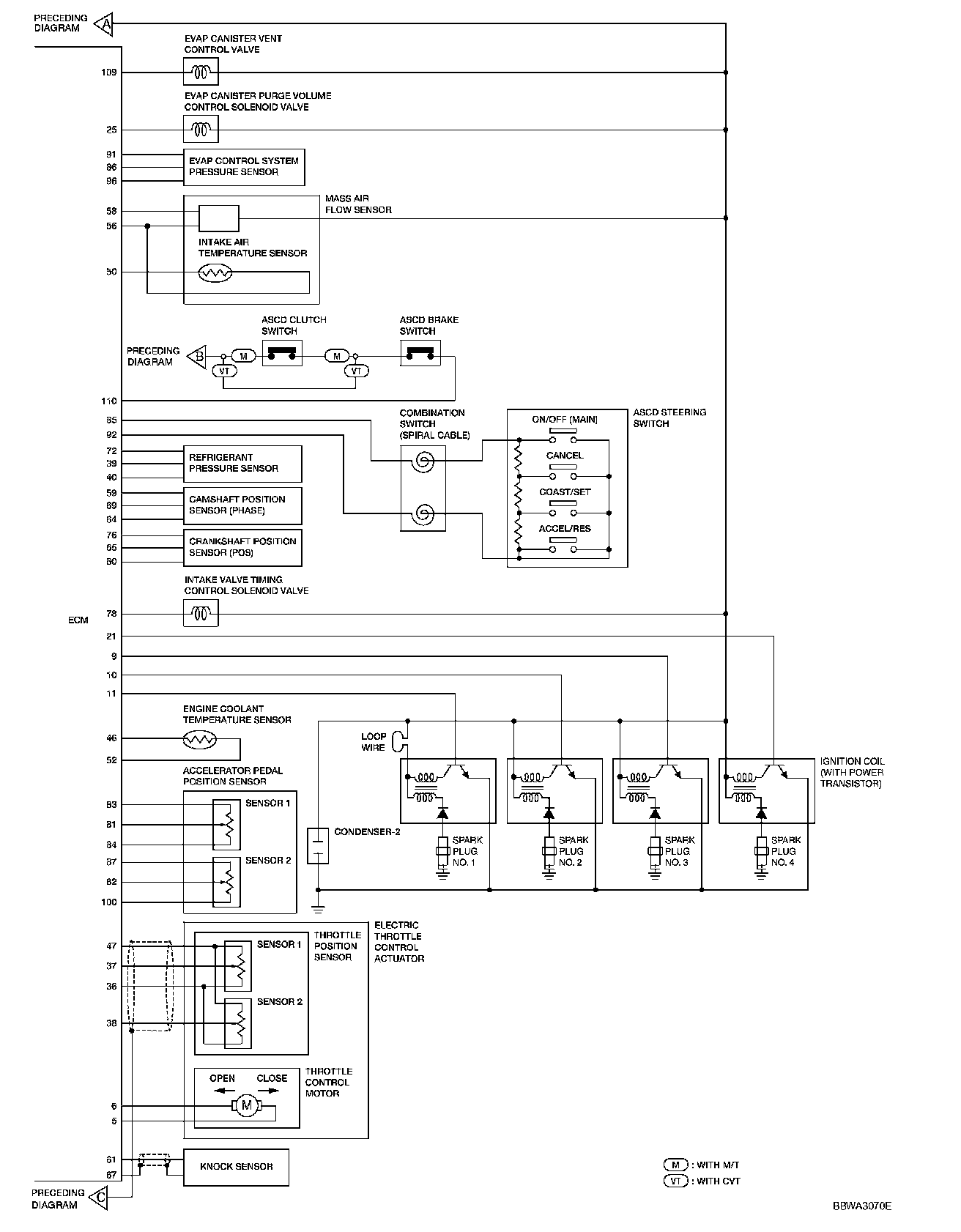

Engine Control System Diagram (Part 2):
