Cellular Phone: Service and Repair

Removal and Installation

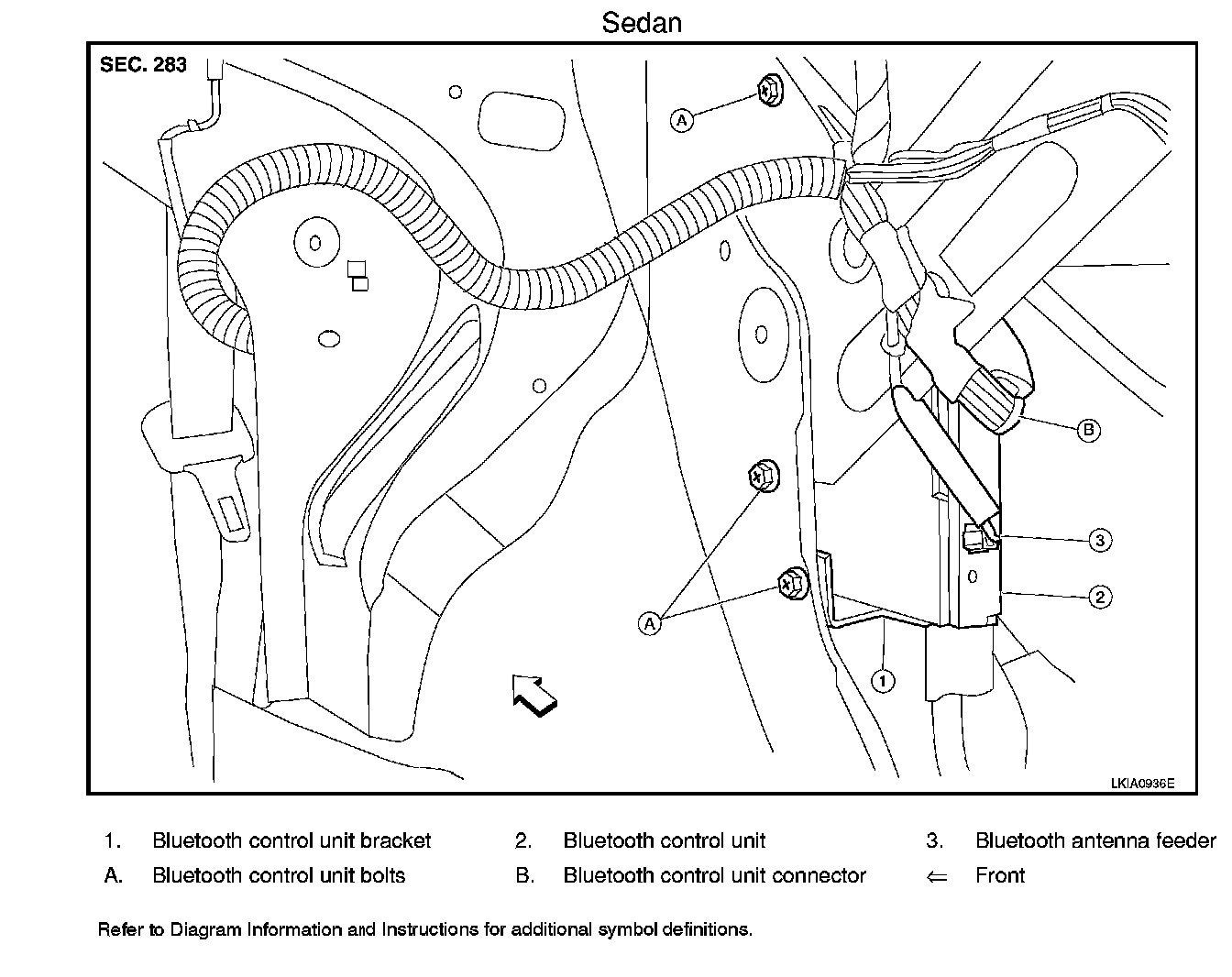

Exploded View AV-55:

BLUETOOTH CONTROL UNIT

Removal
1. For hatchback, remove luggage side lower finish (RH).
- Disconnect Bluetooth antenna harness clip.

2. For sedan, remove the trunk room side finisher (RH).
- Disconnect the Bluetooth antenna harness connector.

3. Disconnect the Bluetooth control unit harness connector.
4. Remove the Bluetooth control unit upper and lower bracket bolts.
5. Unhook the Bluetooth control unit upper and lower brackets and remove Bluetooth control unit.
6. Remove Bluetooth control unit bracket screws and remove the upper and lower brackets from unit.

Installation
Installation is in the reverse order of removal.
