Audio Unit

Removal and Installation

AUDIO UNIT

Removal
1. Remove cluster lid C.

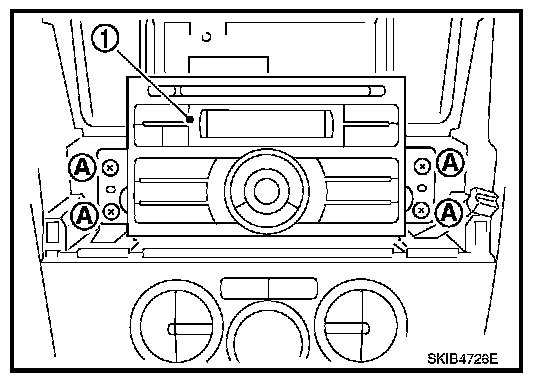

2. Remove the audio unit screws (A), disconnect the connectors and remove the audio unit (1).
3. Remove the audio unit bracket.

Installation
Installation is in the reverse order of removal.
