Grille: Service and Repair

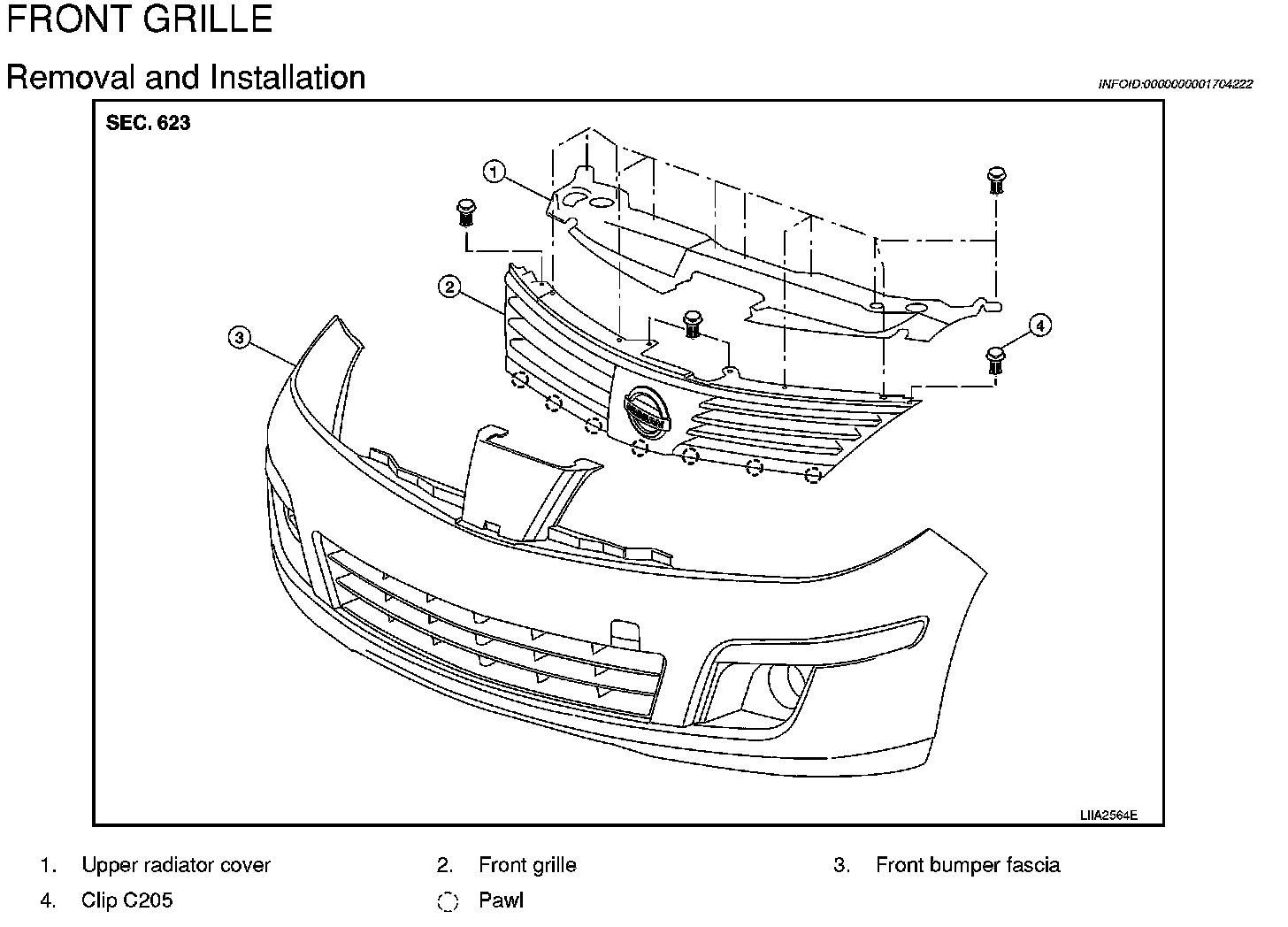

FRONT GRILLE

Removal and Installation






REMOVAL
1. Open hood assembly.
2. Remove the clips, then remove upper radiator cover.
3. Remove the upper clips and release the lower pawls, then pull outward to remove the front grille.

INSTALLATION
Installation is in the reverse order of removal.
