Blower Motor Resistor: Service and Repair

BLOWER FAN RESISTOR

Removal and Installation

REMOVAL
1. Remove the instrument lower finisher.
2. Remove the console side cover.
3. Remove the brake pedal assembly.
4. Disconnect the blower fan resistor connector.

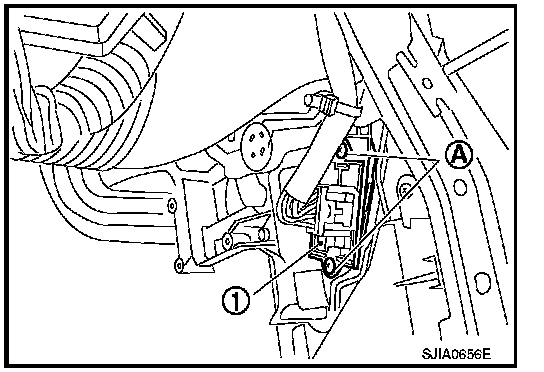

5. Remove the blower fan resistor screws (A), then remove the blower fan resistor (1).

INSTALLATION
Installation is in the reverse order of removal.
