Heater Core: Service and Repair

HEATER CORE

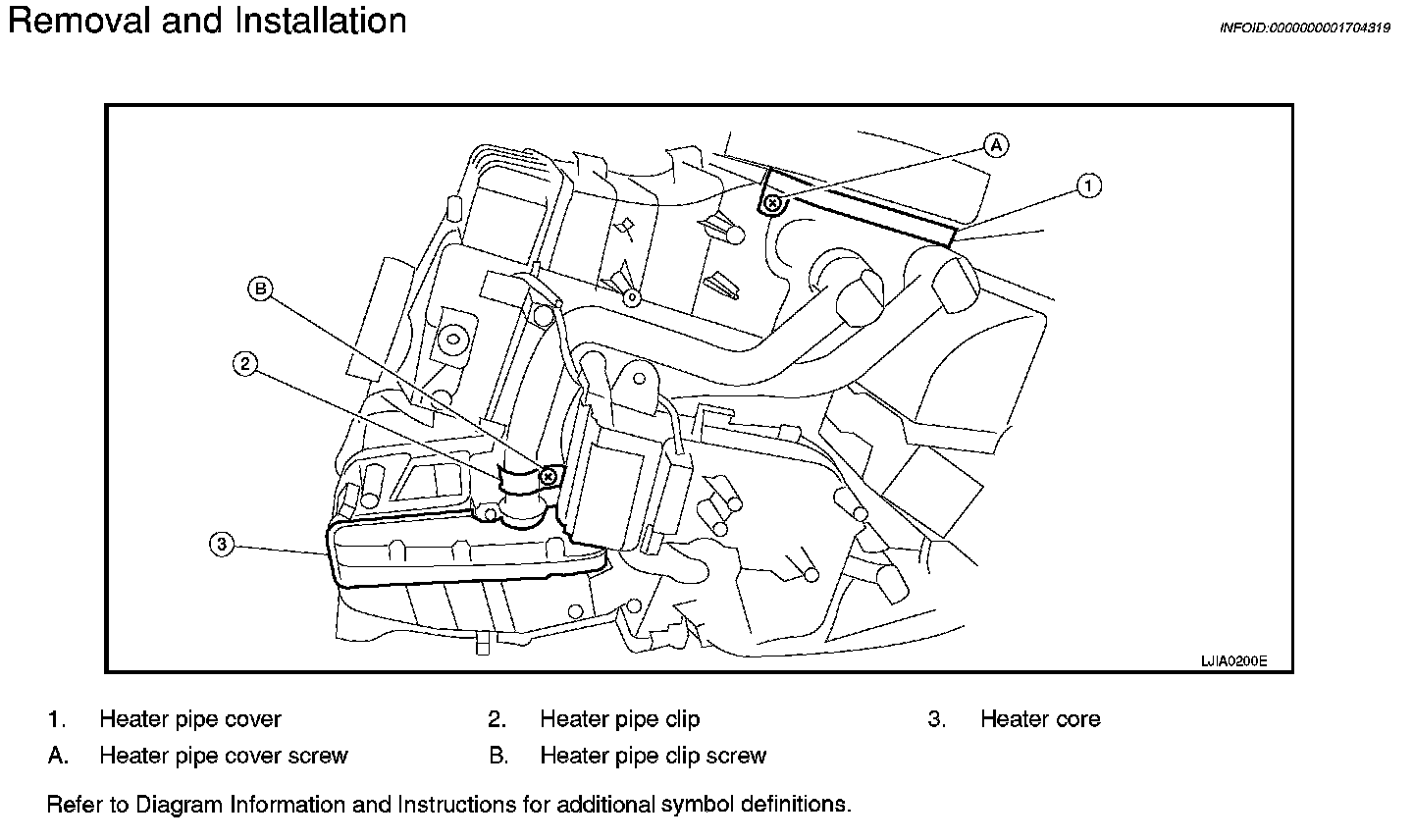

Exploded View MTC-67:

Removal and Installation

REMOVAL
1. Remove the A/C unit assembly. Service and Repair
2. Remove the foot duct (left).
3. Remove the heater pipe cover screw, then remove the heater pipe cover.
4. Remove the heater pipe clip screw, then remove the heater pipe clip.
5. Slide the heater core out of the A/C unit assembly.

INSTALLATION
Installation is in the reverse order of removal.
