Vehicle Speed Signal Inspection

Vehicle Speed Signal Inspection

Symptom:
- Improper speedometer and odo/trip meter indication.
- Display VEHICLE SPEED CIRC [B2205] at the result of self-diagnosis for combination meter.

Step 1-2:

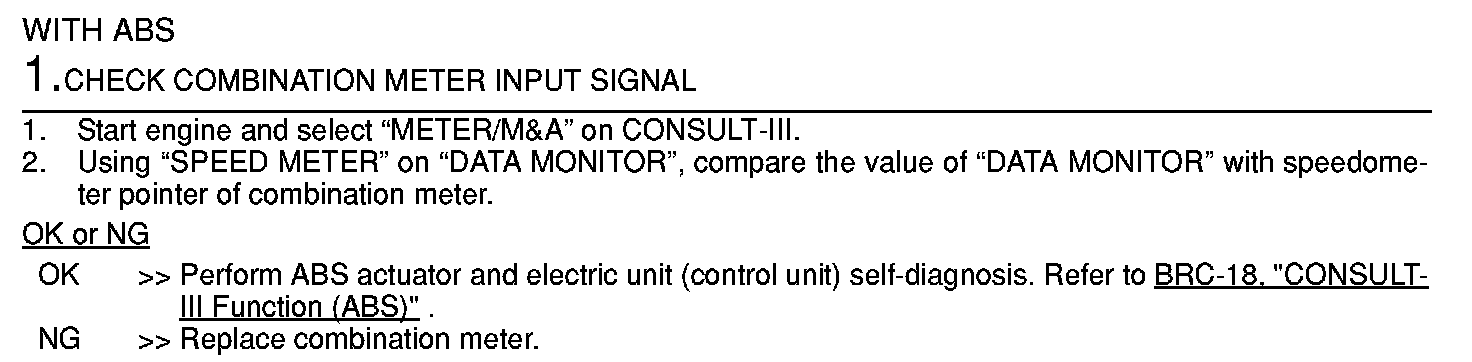

WITH ABS

Step 1-2:

Step 2 (Continued):

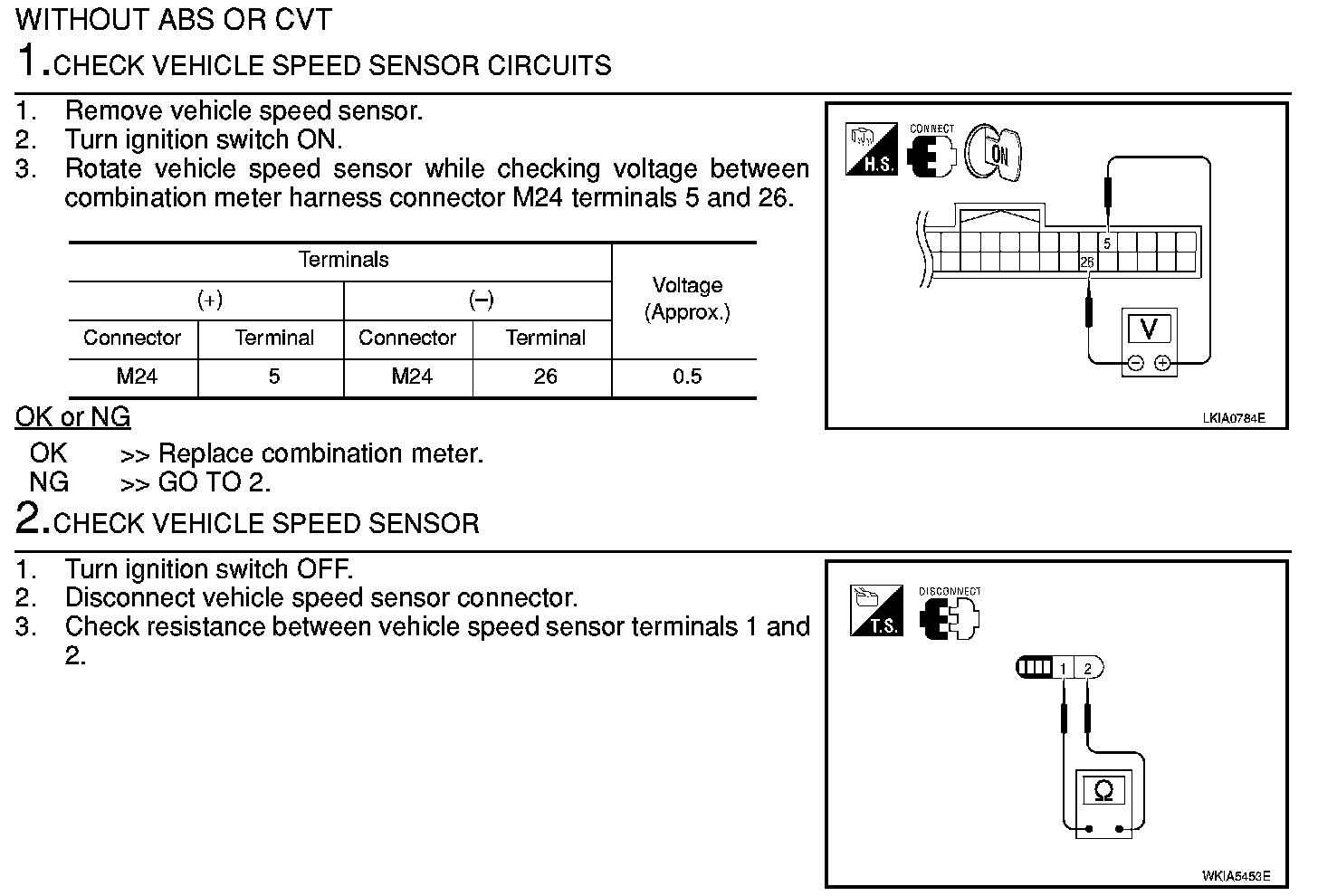

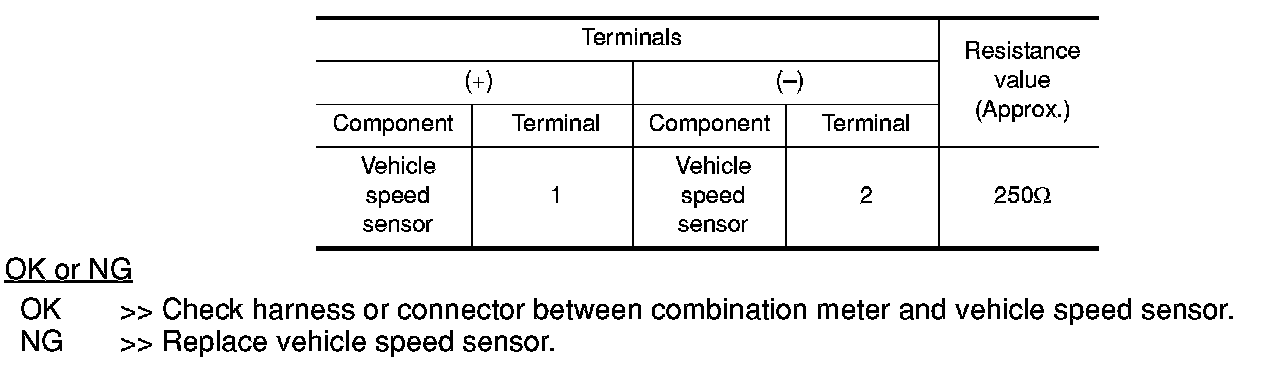

WITHOUT ABS OR CVT

Step 1:

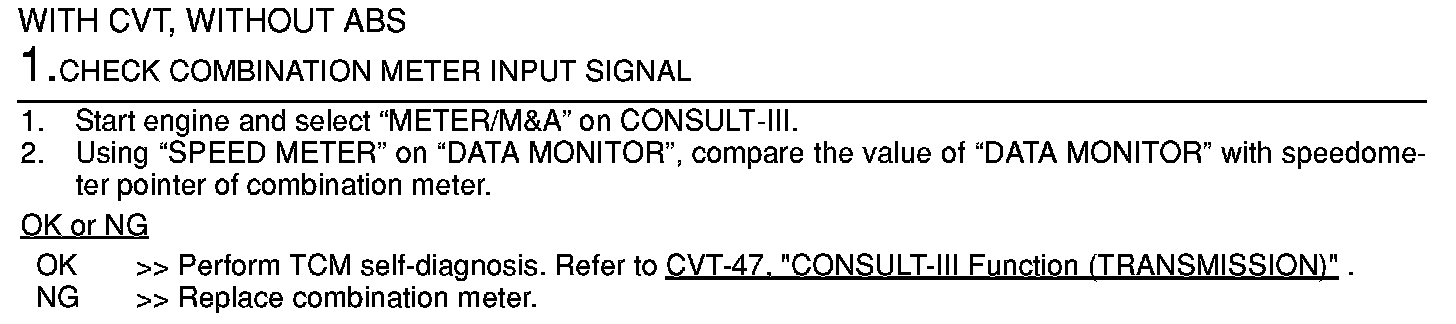

WITH CVT, WITHOUT ABS
