Body - The Fuel Lid/Hood Will Not Open

Classification: BT07-022

Reference: NTB07-071

Date: October 3, 2007

2007-2008 VERSA; THE FUEL LID AND/OR HOOD WILL NOT OPEN

APPLIED VEHICLES: 2007-2008 Versa (C11X Hatchback and SC11X Sedan)

IF YOU CONFIRM

You are unable to open the fuel lid and/or hood because the cable detaches from the cable bracket.

ACTIONS

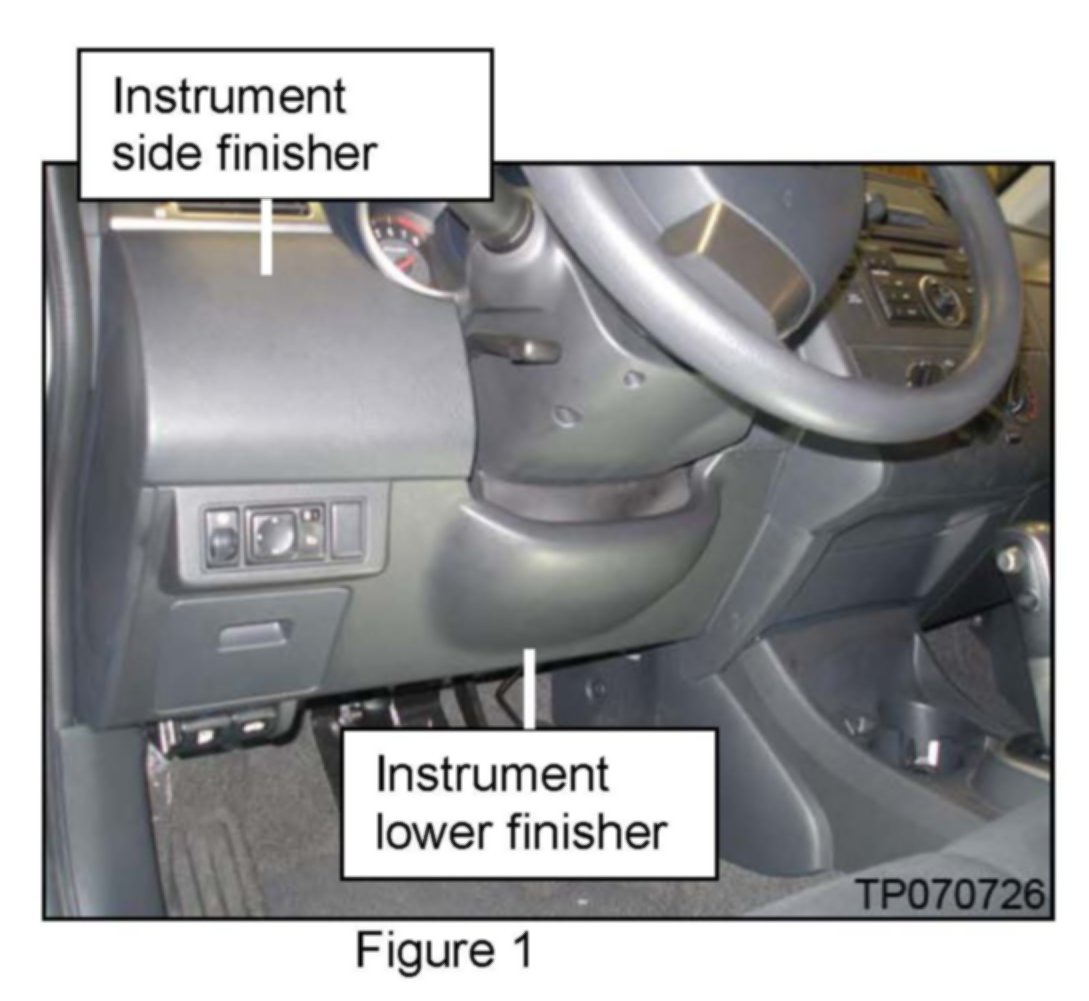

^ Remove the instrument side finisher and instrument lower finisher. Refer to section IP for removal and installation procedures.

^ Put the cables back in place.

^ Use plastic tie straps to hold the fuel lid release cable and the hood release cable in place.

IMPORTANT:
The purpose of "ACTIONS" (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing the repair.

SERVICE PROCEDURE

NOTE:
The plastic tie straps are considered a shop supply.





1. Wrap a tie strap around the cable and metal bracket to hold the fuel lid cable in place. See Figure 2.

2. Wrap a tie strap around the cable and both plastic and metal brackets to hold the hood cable in place. See Figure 2.

^ Make sure to wrap the tie strap around and behind the bracket.

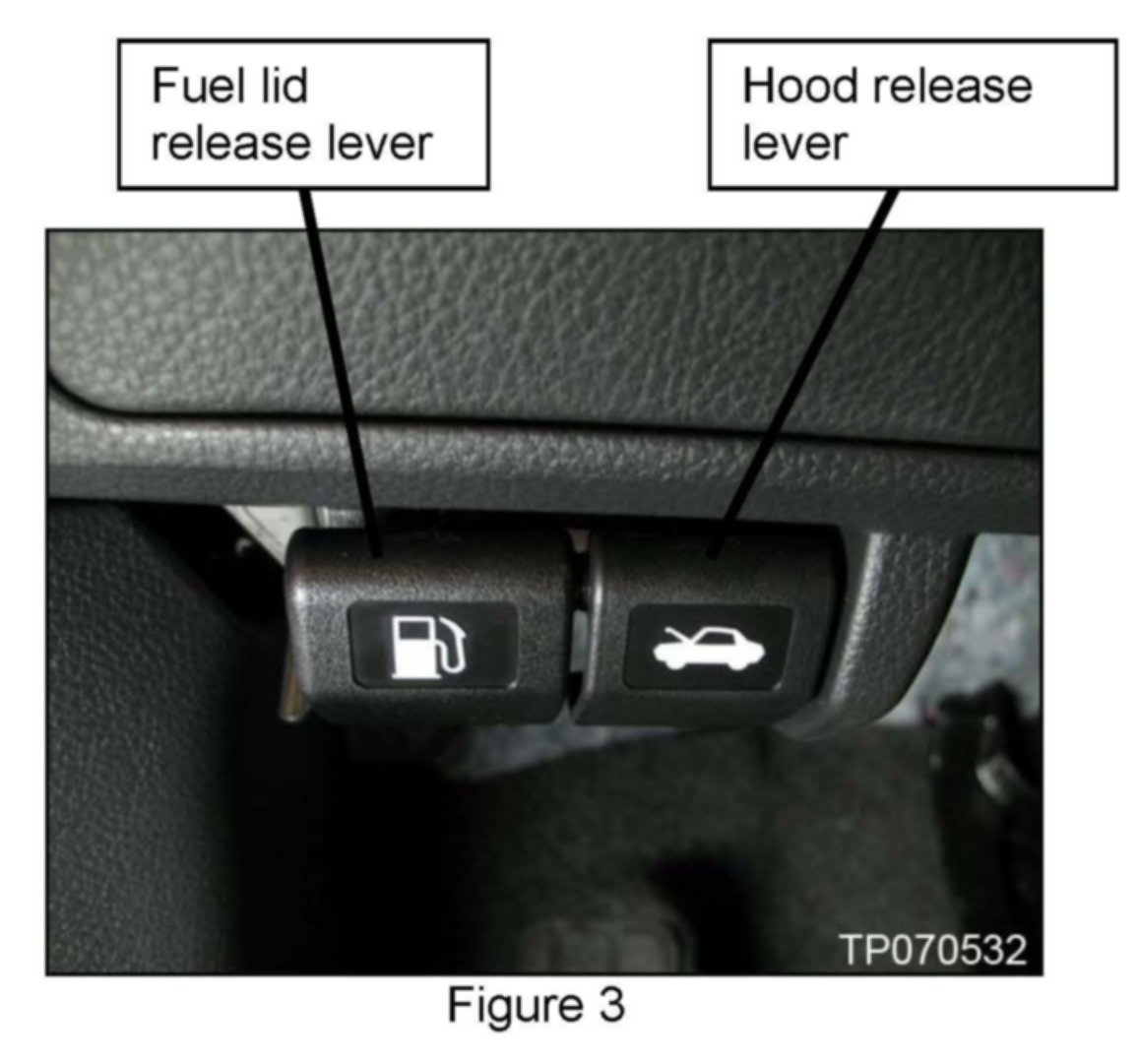

3. Release the fuel lid lever and hood lever to make sure the issue has been resolved.





CLAIMS INFORMATION
