Restraints - Difficult to Install Child Seat

Classification: BT08-003

Reference: NTB08-016

Date: January 22, 2008

2007-2008 VERSA; CHILD SEAT INSTALLATION ISSUES

APPLIED VEHICLE:
2007-2008 Versa Sedan S-grade (SC11X) only

APPLIED DATE:
Vehicles built before October 1, 2007

IF YOU CONFIRM:

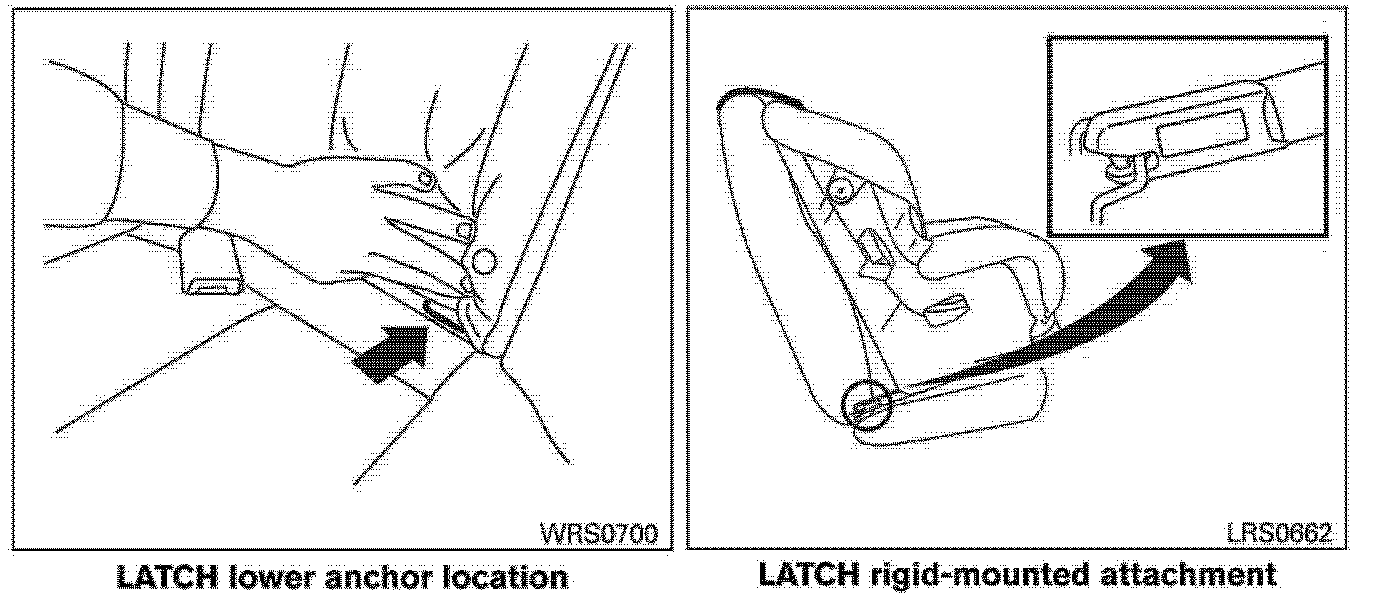

A lower portion of the fixed seat back makes it difficult to install a child restraint system (CRS) into the LATCH system in accordance with Vehicle Owner's Manual and CRS instructions.

NOTE:
See 1-17 of the Owner's Manual.





ACTION

Replace the fixed rear seat back with the applicable one from the Parts Information section of this bulletin.





PARTS INFORMATION

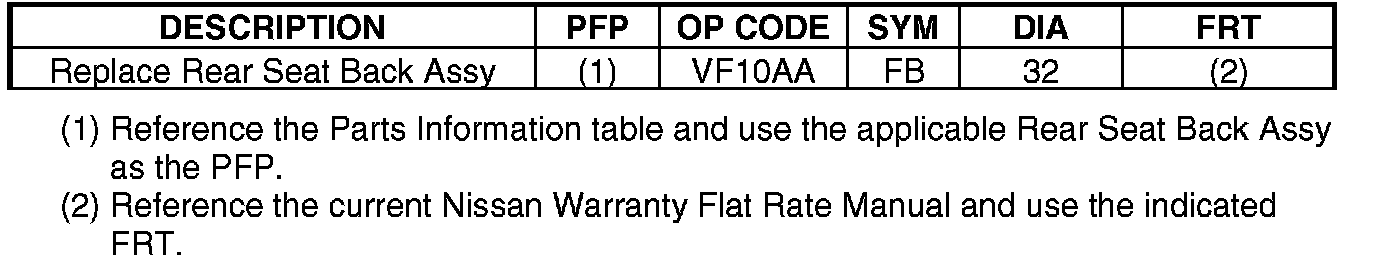

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding table.

SERVICE PROCEDURE

For direction on how to replace the Rear Seat Back Assy:

> Reference Section SE, REAR SEAT, Removal and Installation, FIXED BACK SEAT in the applicable Electronic Service Manual.
