Removal And Installation - Sedan





BLUETOOTH CONTROL UNIT


Removal and Installation - Sedan


REMOVAL
1. Remove the rear parcel shelf. Refer to Sedan.

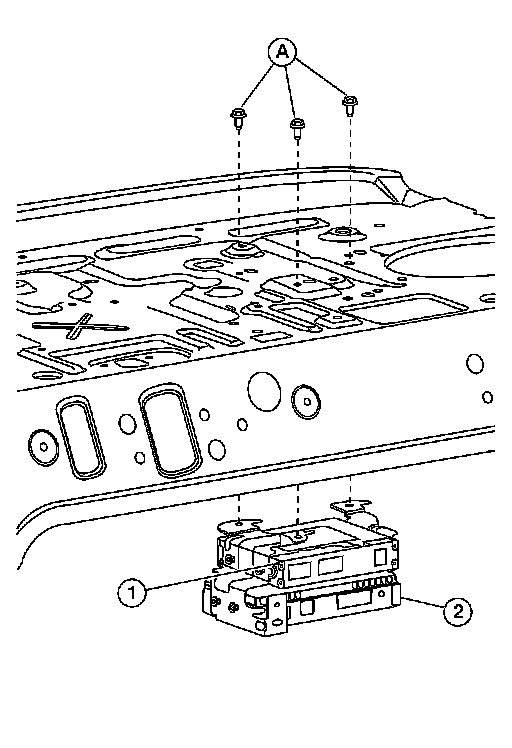

2. Remove the Bluetooth control unit screws (A), disconnect the
Bluetooth control unit connectors and remove the Bluetooth control unit (2).
- Satellite radio tuner (1)






INSTALLATION
Installation is in the reverse order of removal.
