Sedan





HARNESS


Harness Layout


HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate connectors on the drawings:





- Main Harness, Console Sub-harness and Console Switch Subharness
- Engine Room Harness
- Engine Room Harness (Passenger Compartment)
- Front End Module Harness
- Engine Control Harness (VQ35DE) and Knock Sensor Sub-harness
- Engine Control Harness (QR25DE)
- Body Harness
- Body No. 2 Harness
- Room Lamp Harness

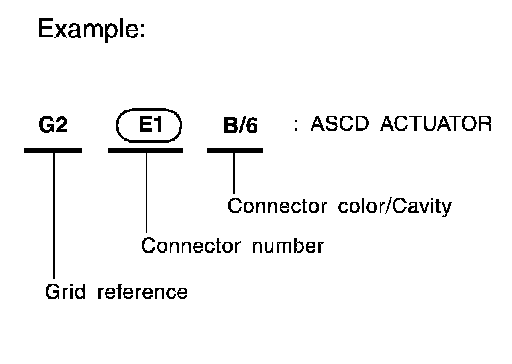

To use the grid reference

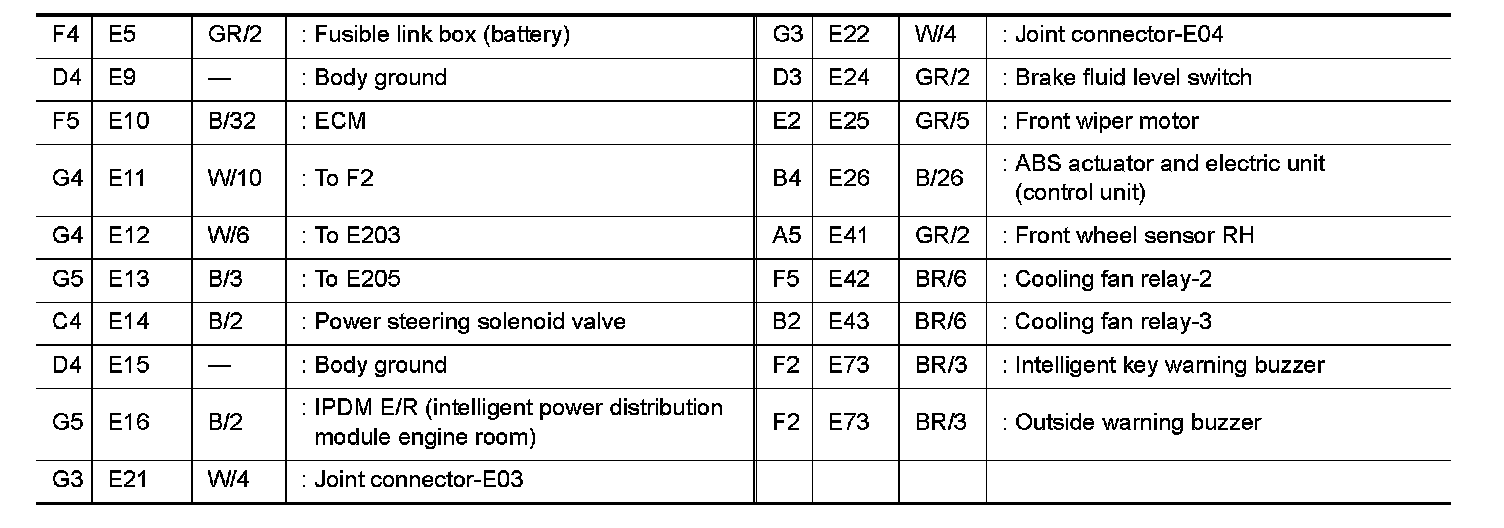

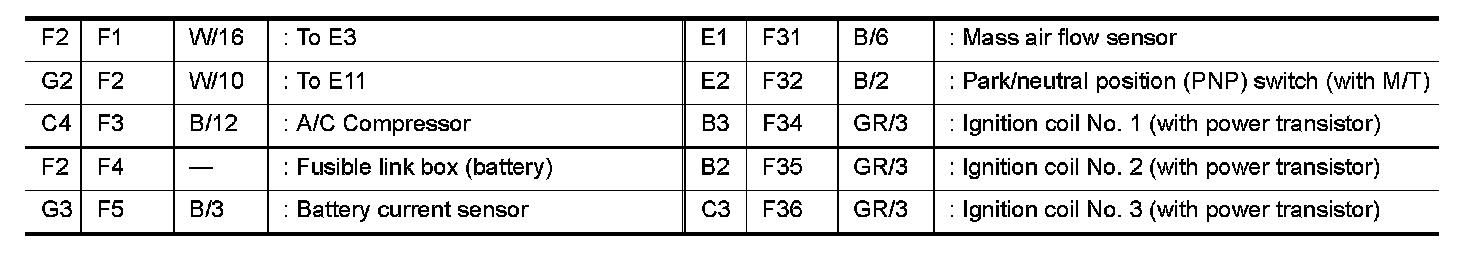

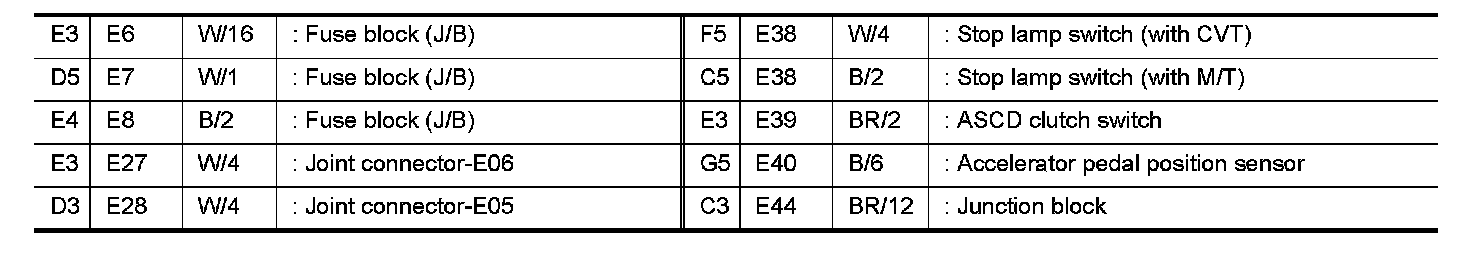

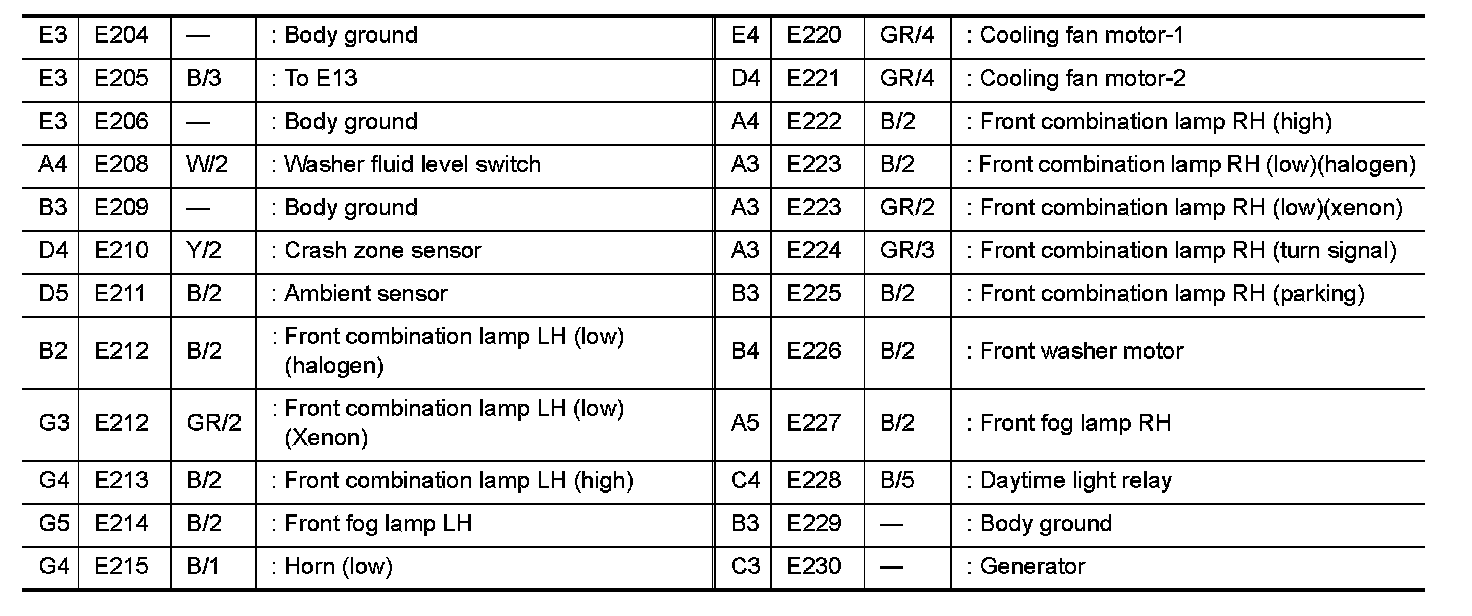

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

OUTLINE

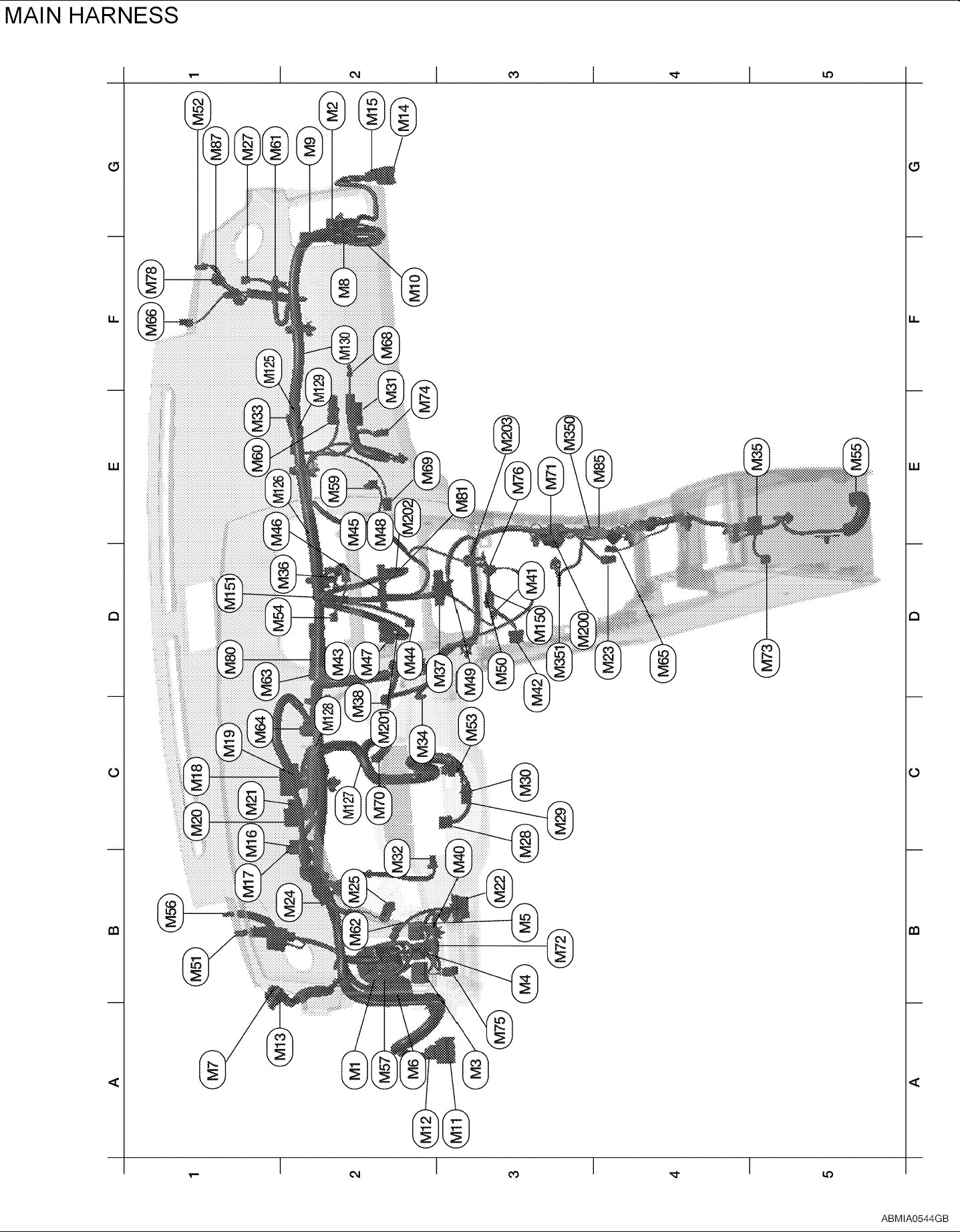

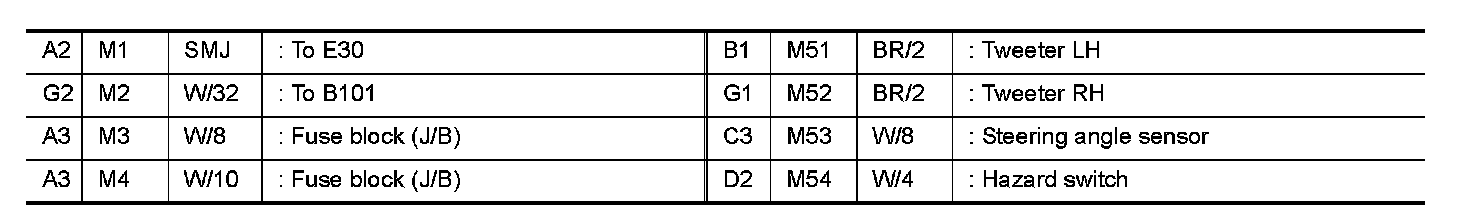

MAIN HARNESS

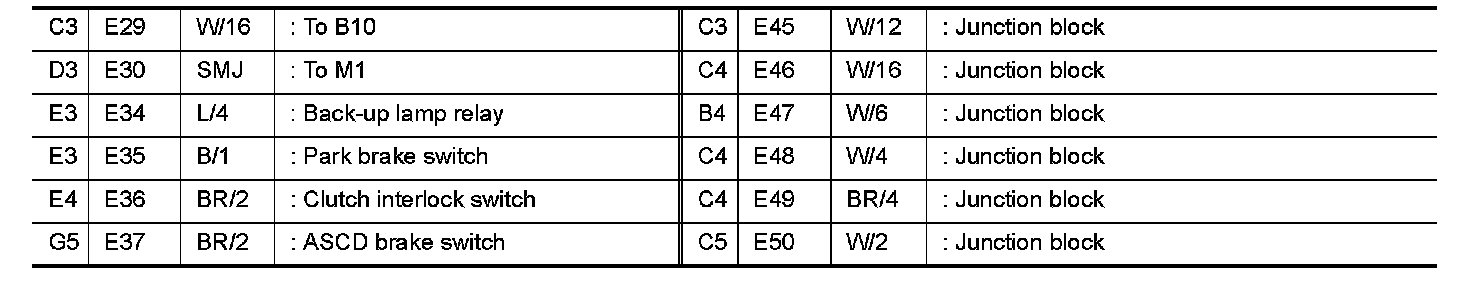

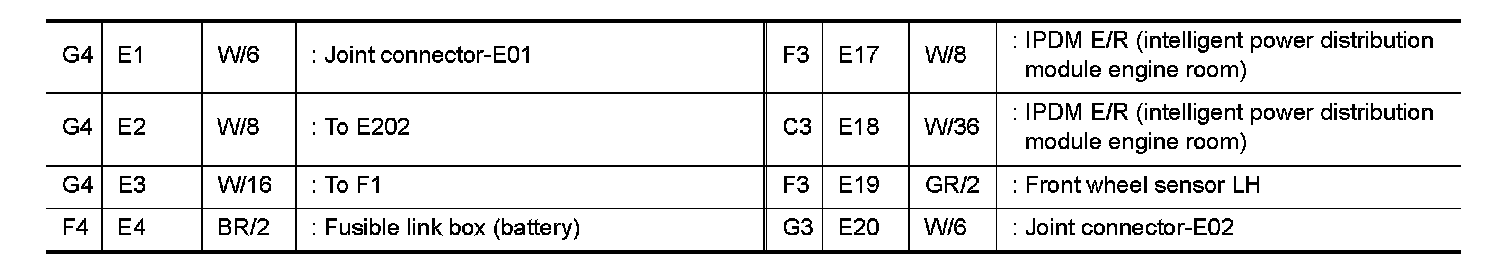

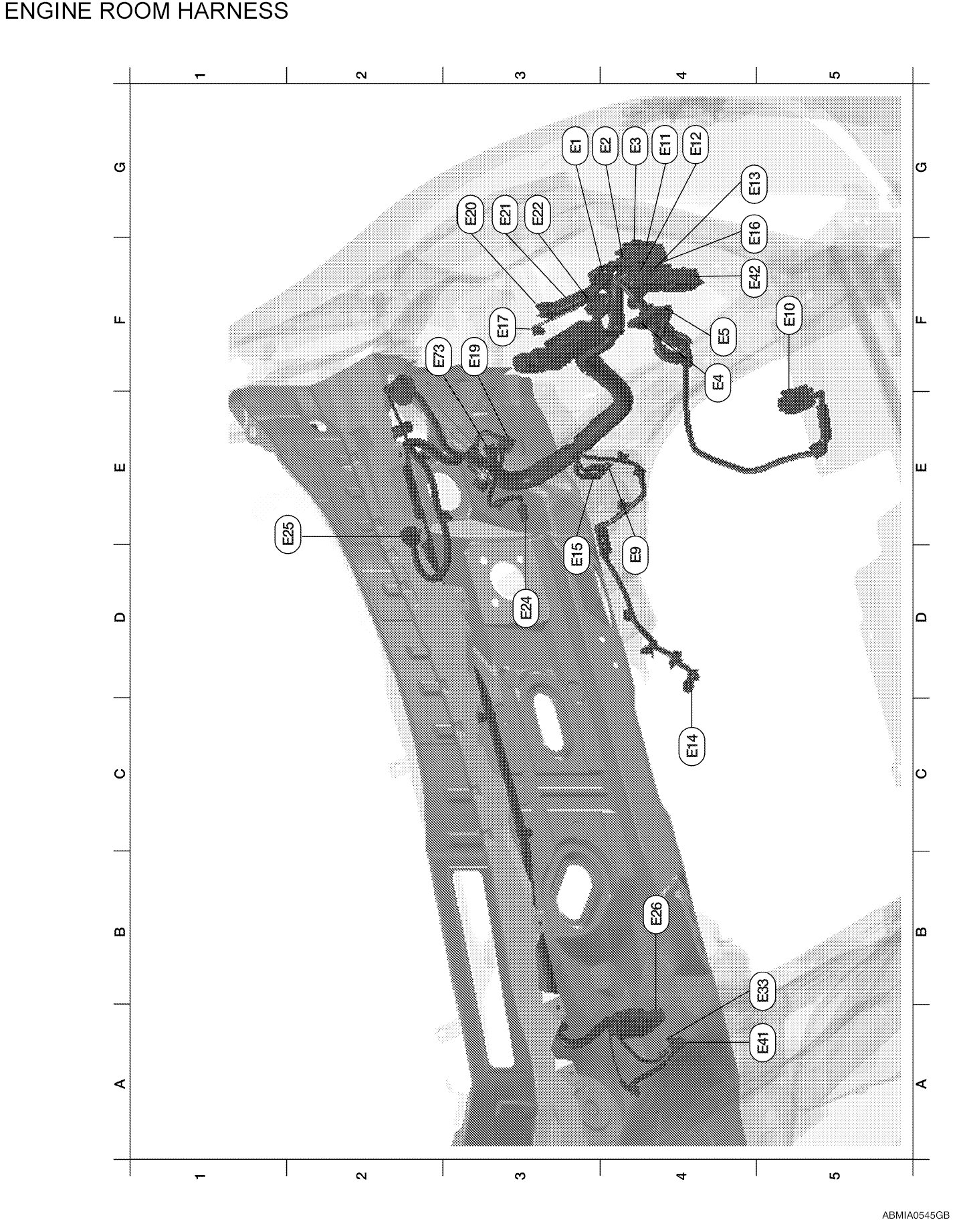

ENGINE ROOM HARNESS

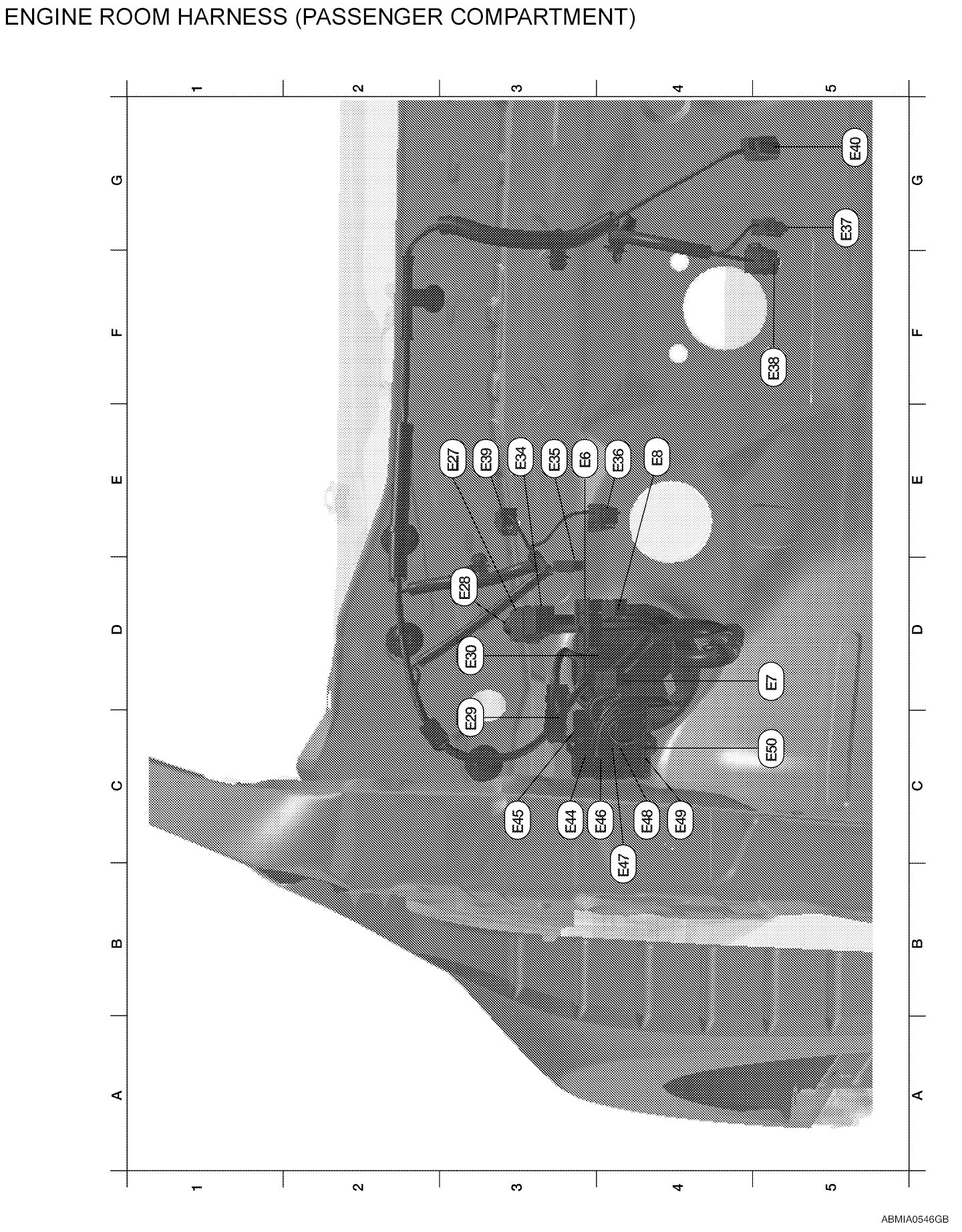

ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

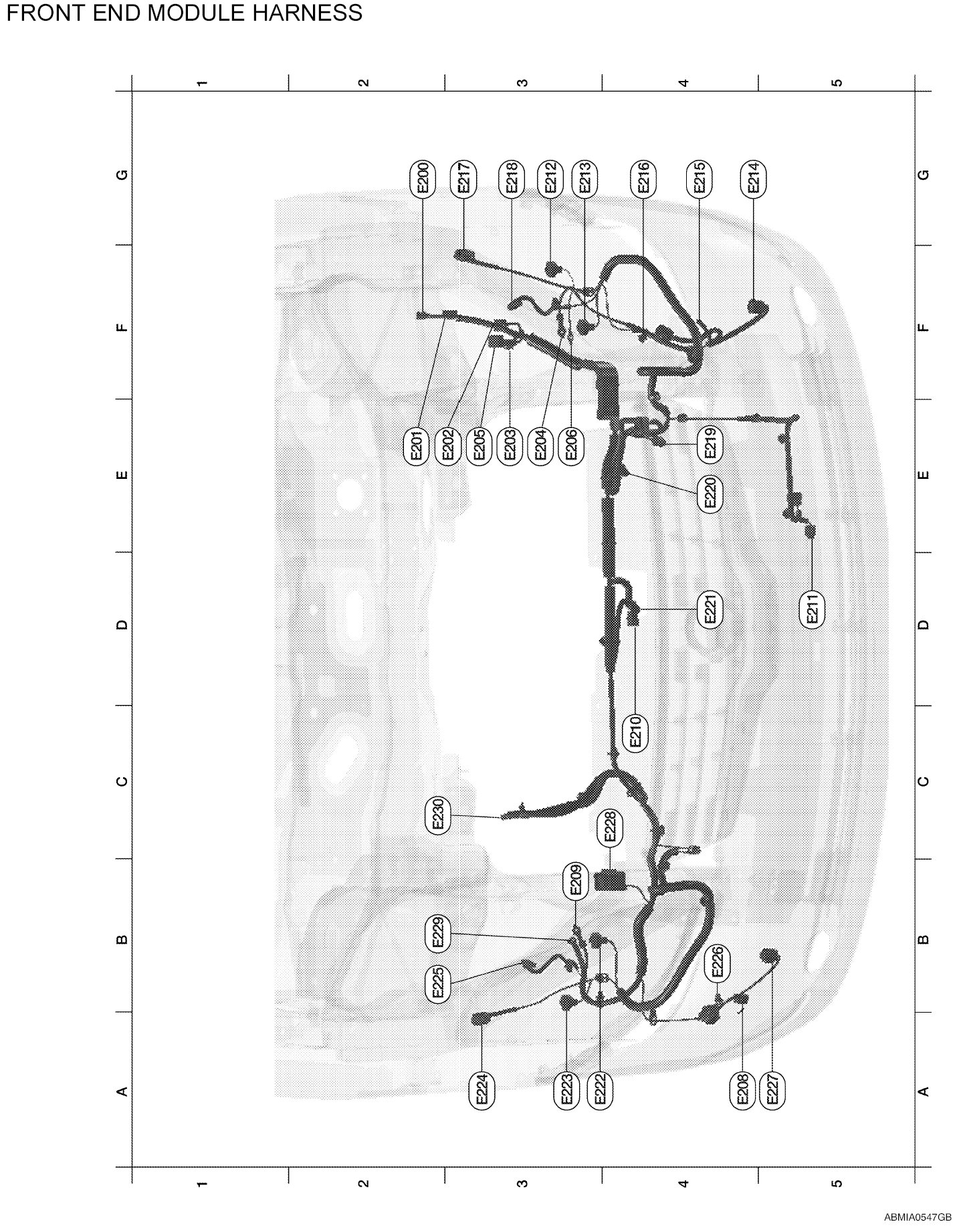

FRONT END MODULE HARNESS

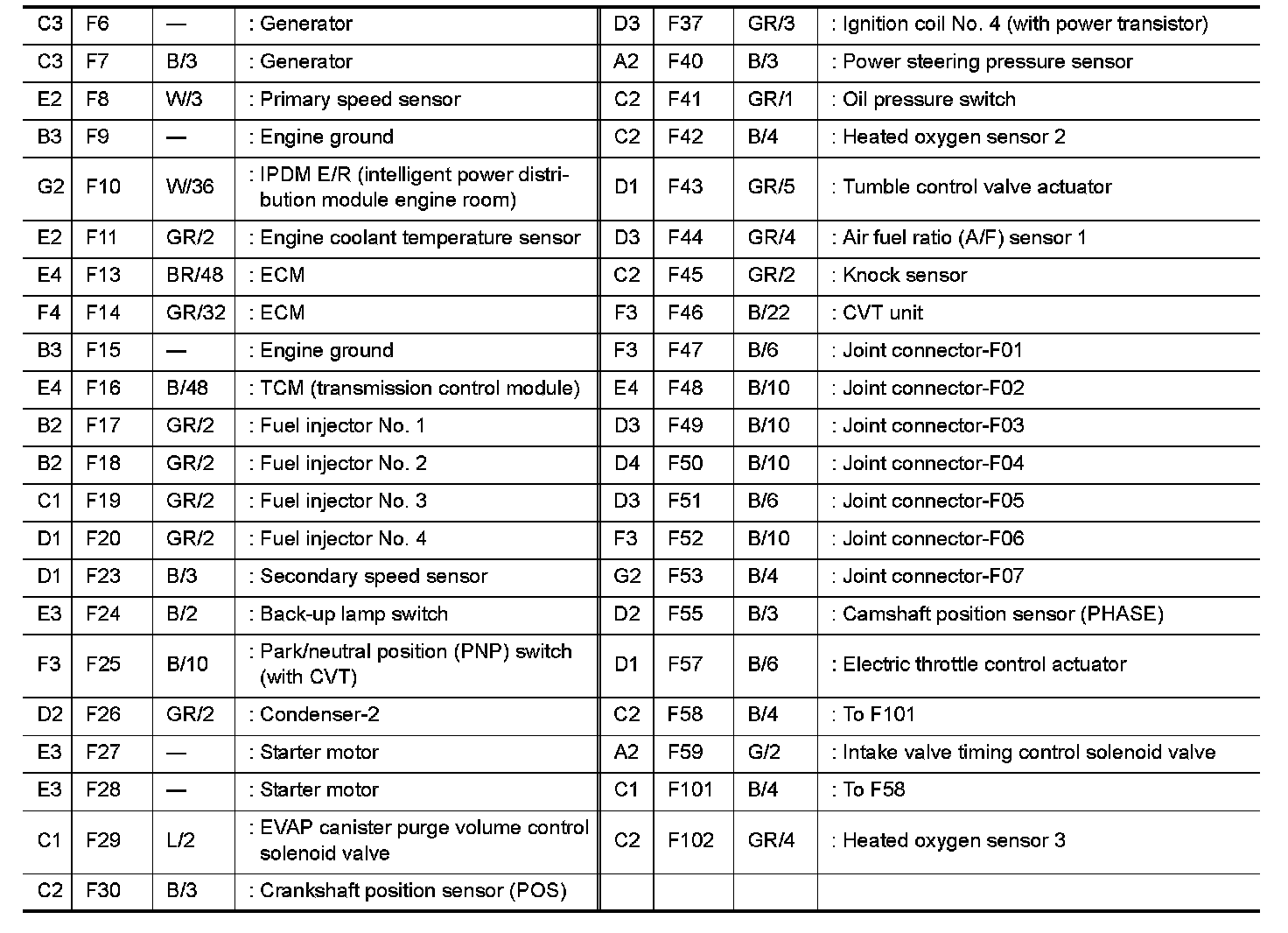

ENGINE CONTROL HARNESS (QR25DE)

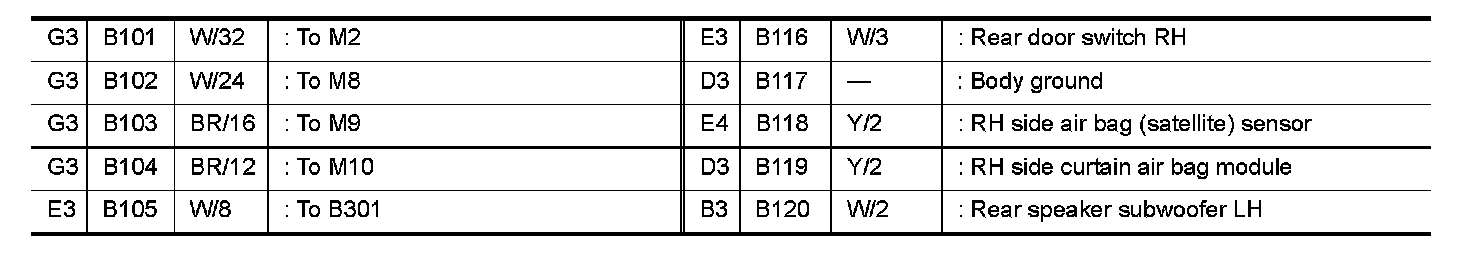

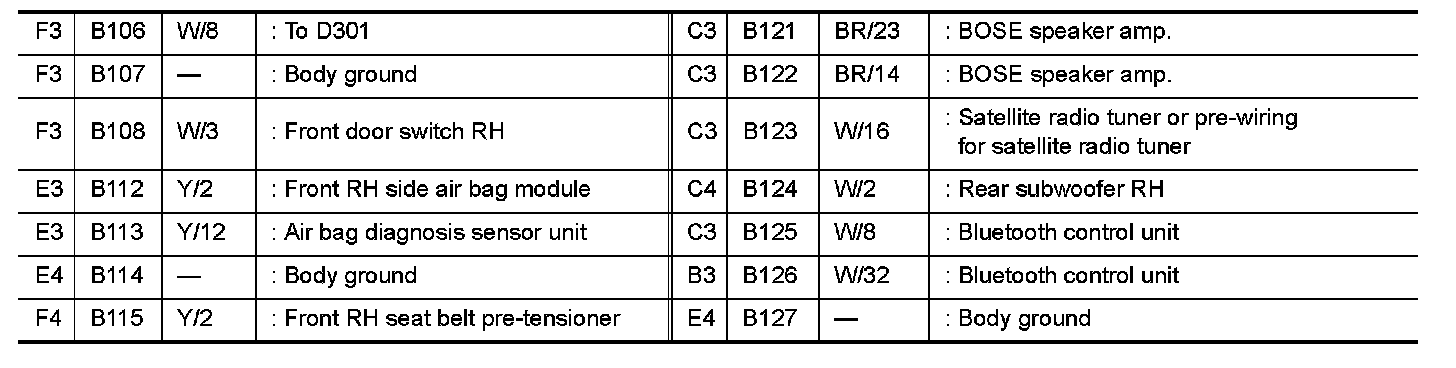

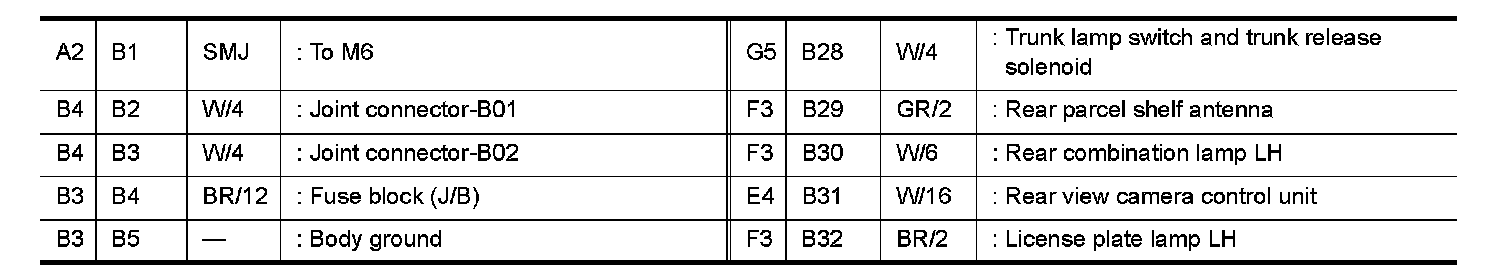

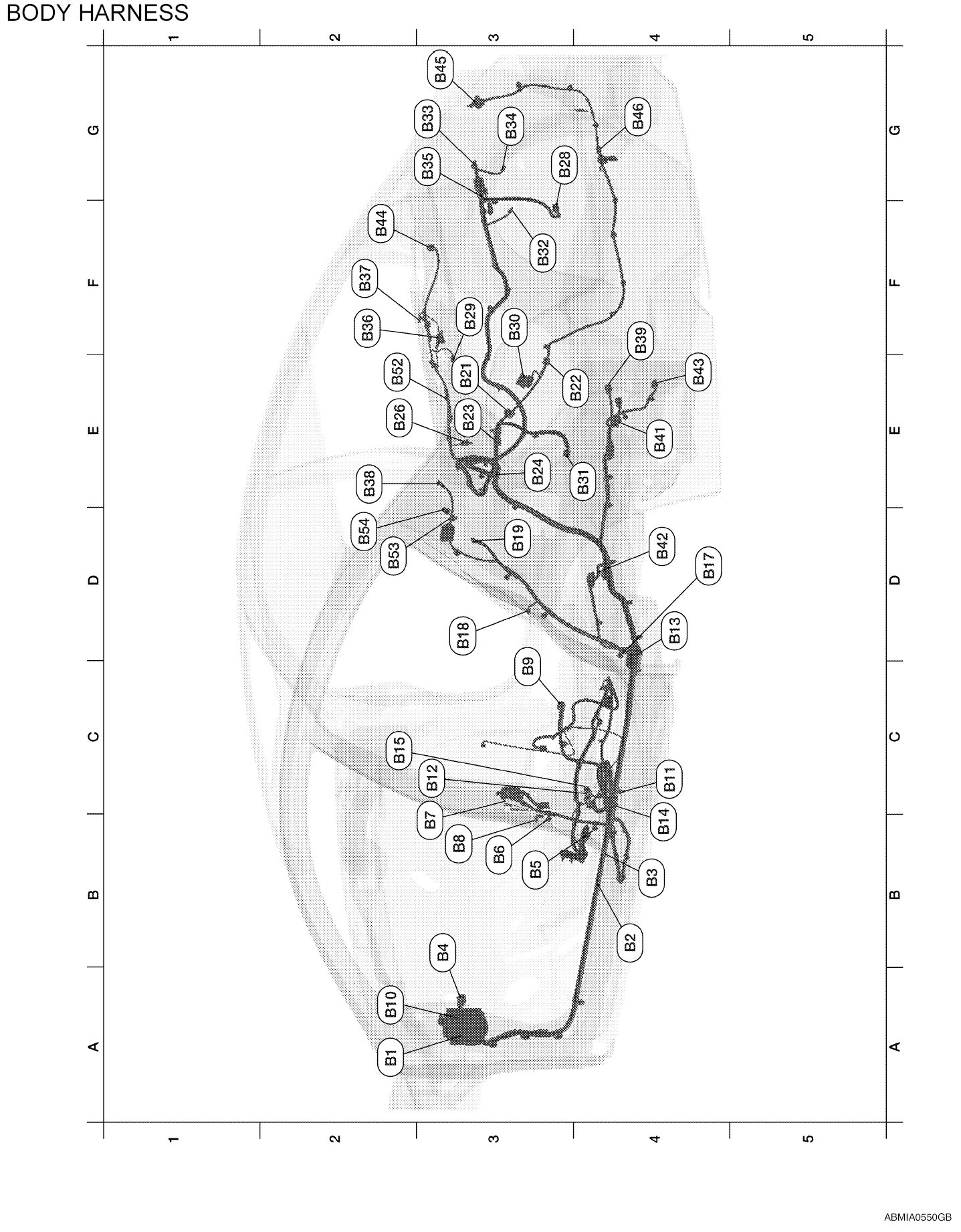

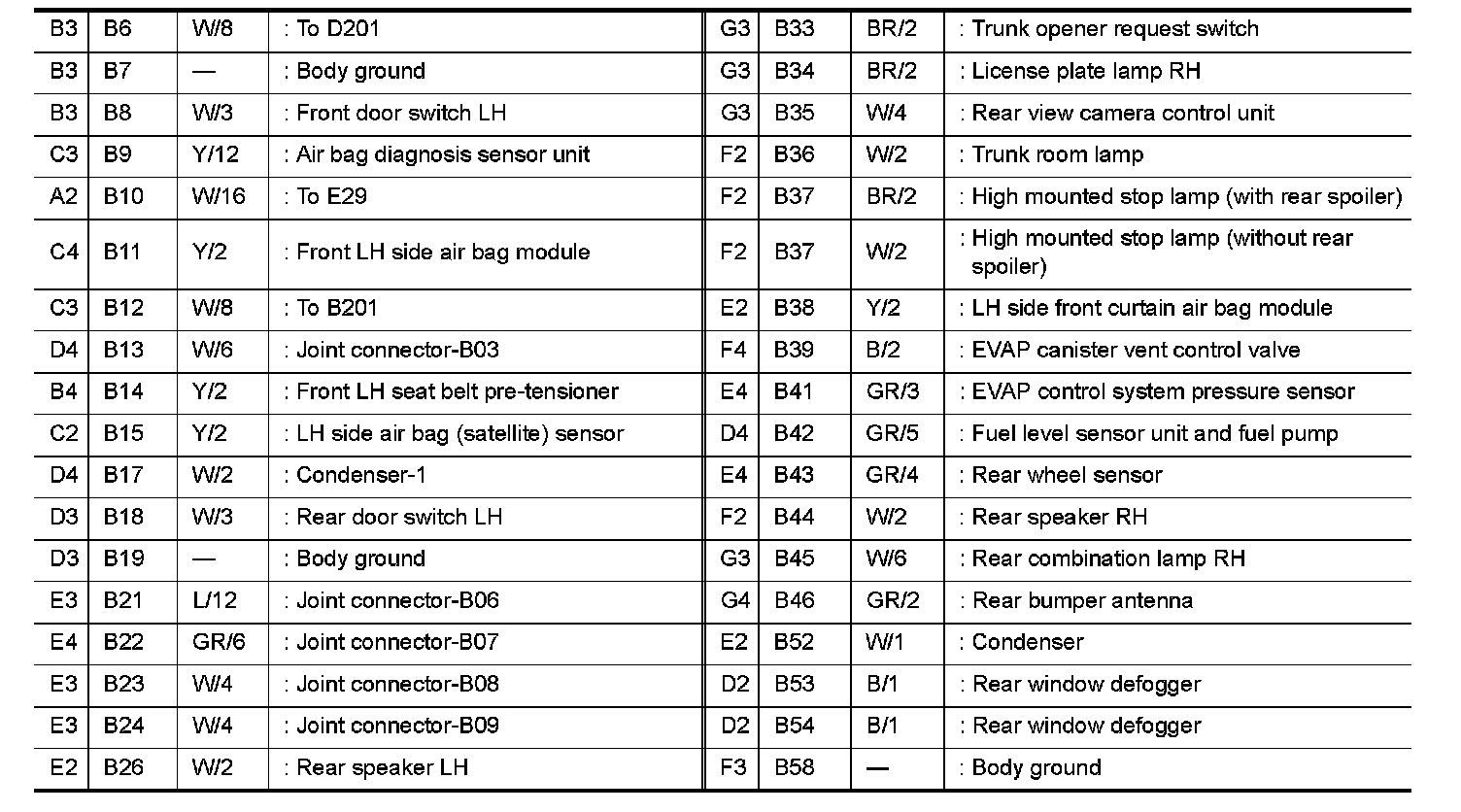

BODY HARNESS
















BODY NO. 2 HARNESS

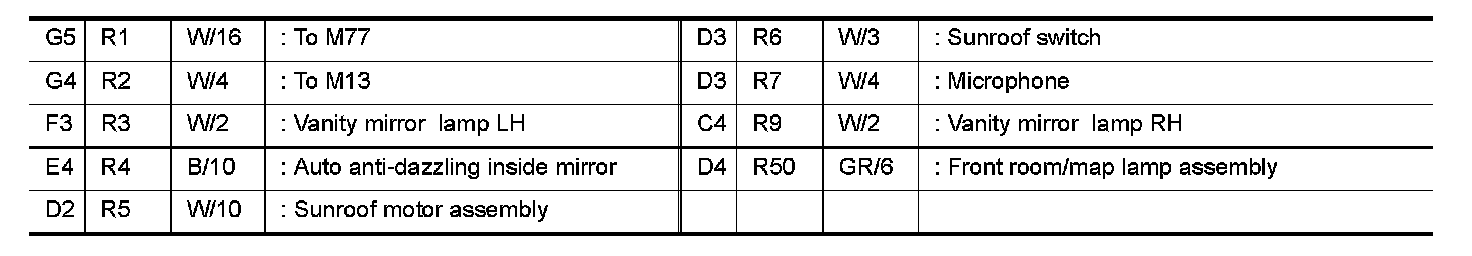

ROOM LAMP HARNESS

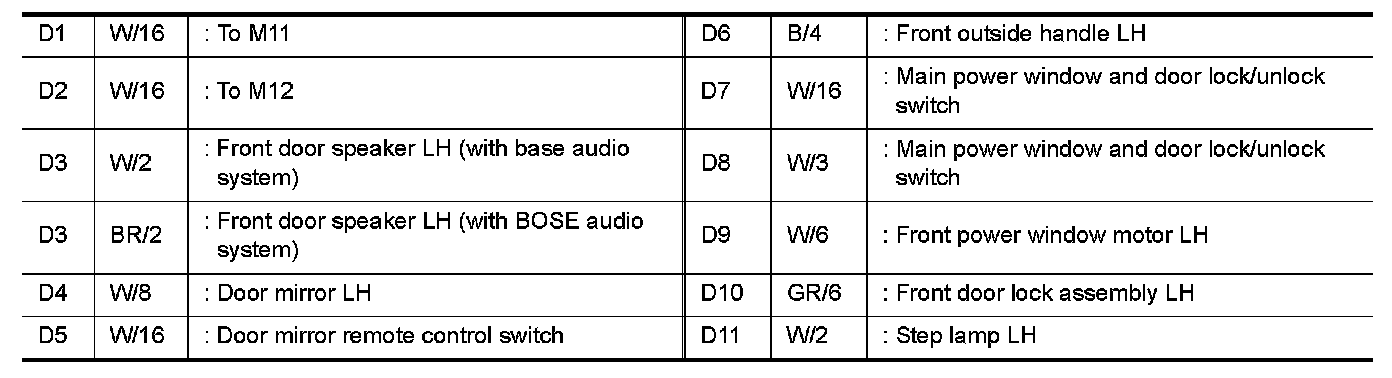

FRONT DOOR LH HARNESS

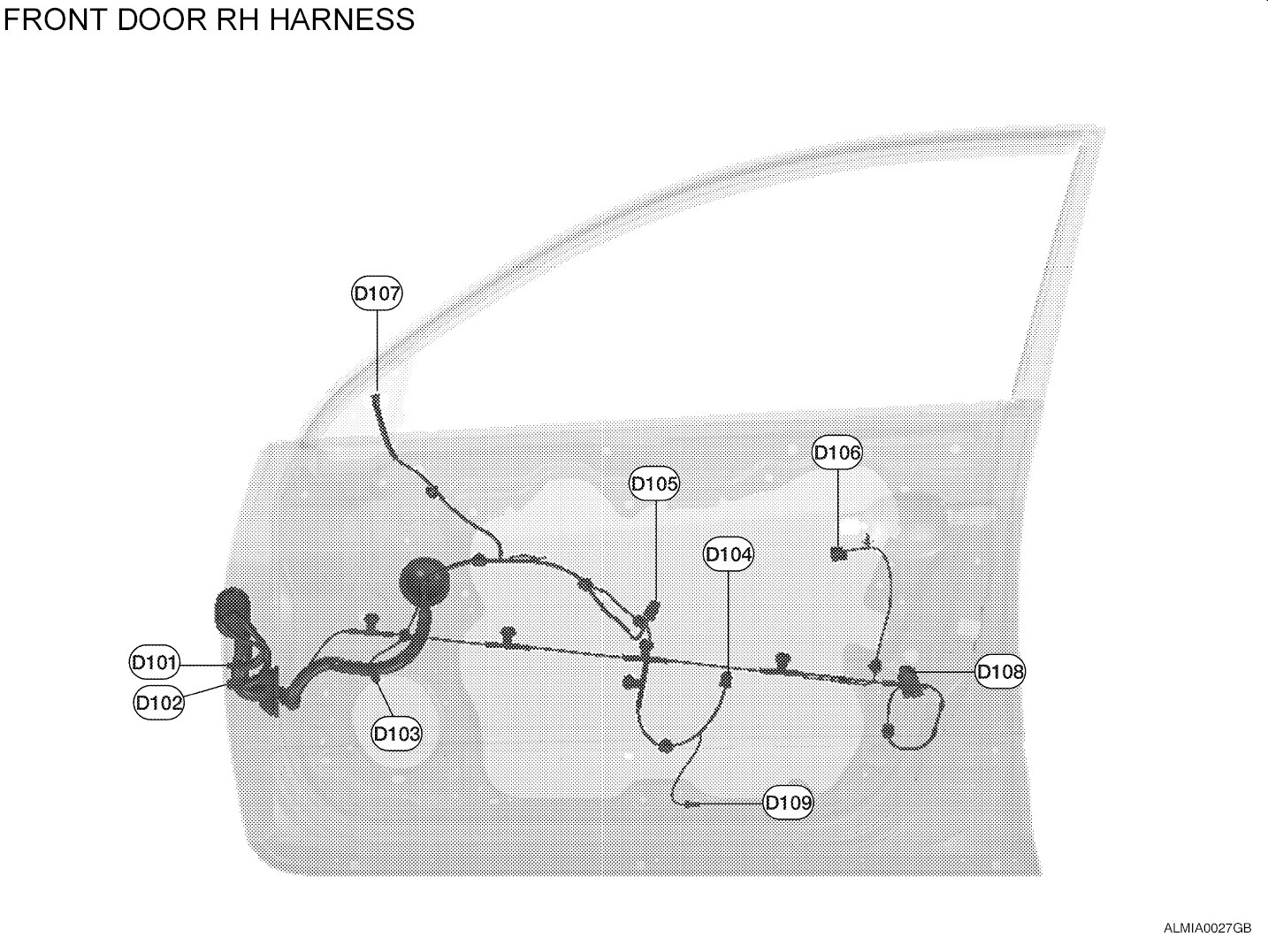

FRONT DOOR RH HARNESS

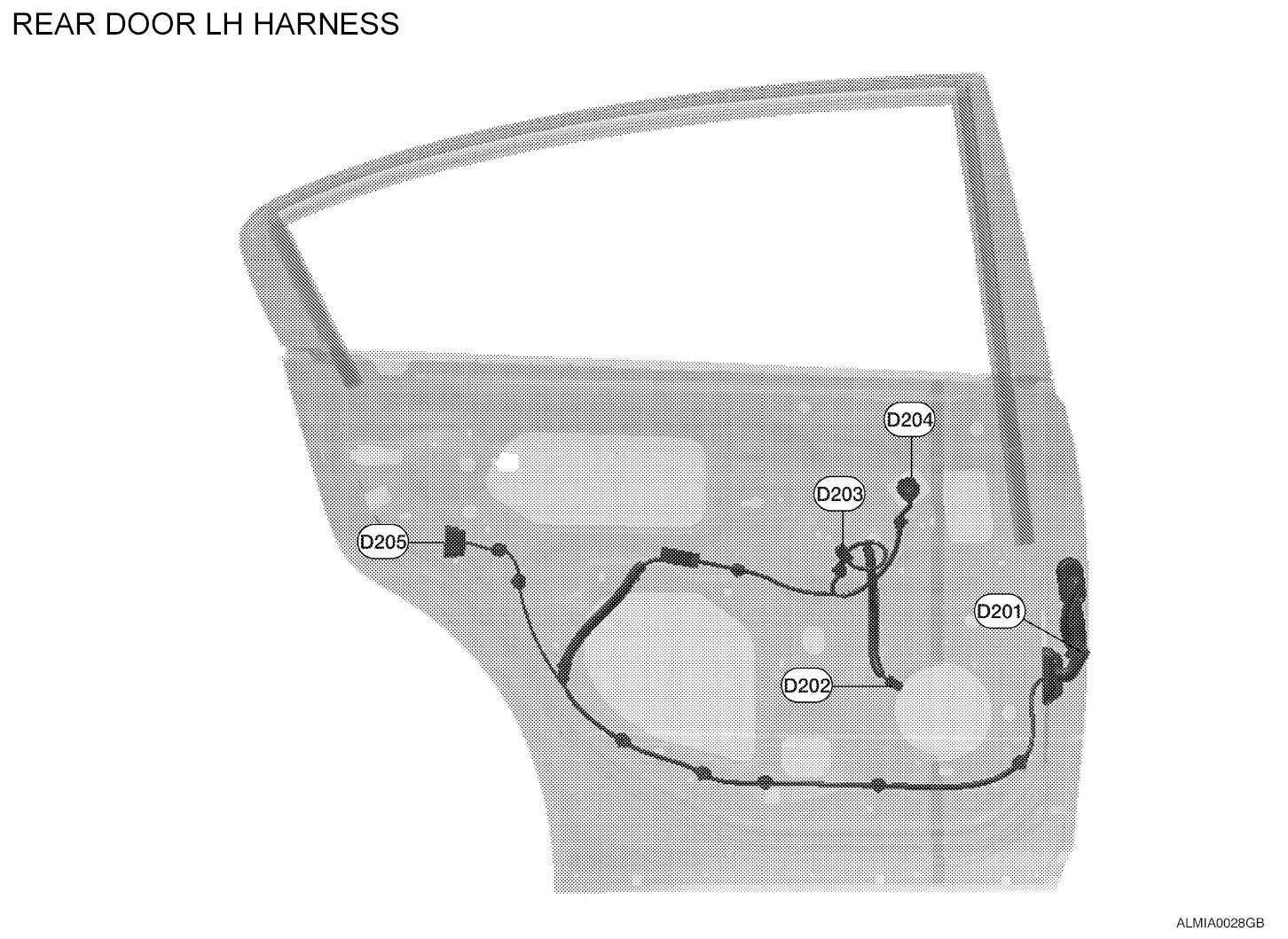

REAR DOOR LH HARNESS

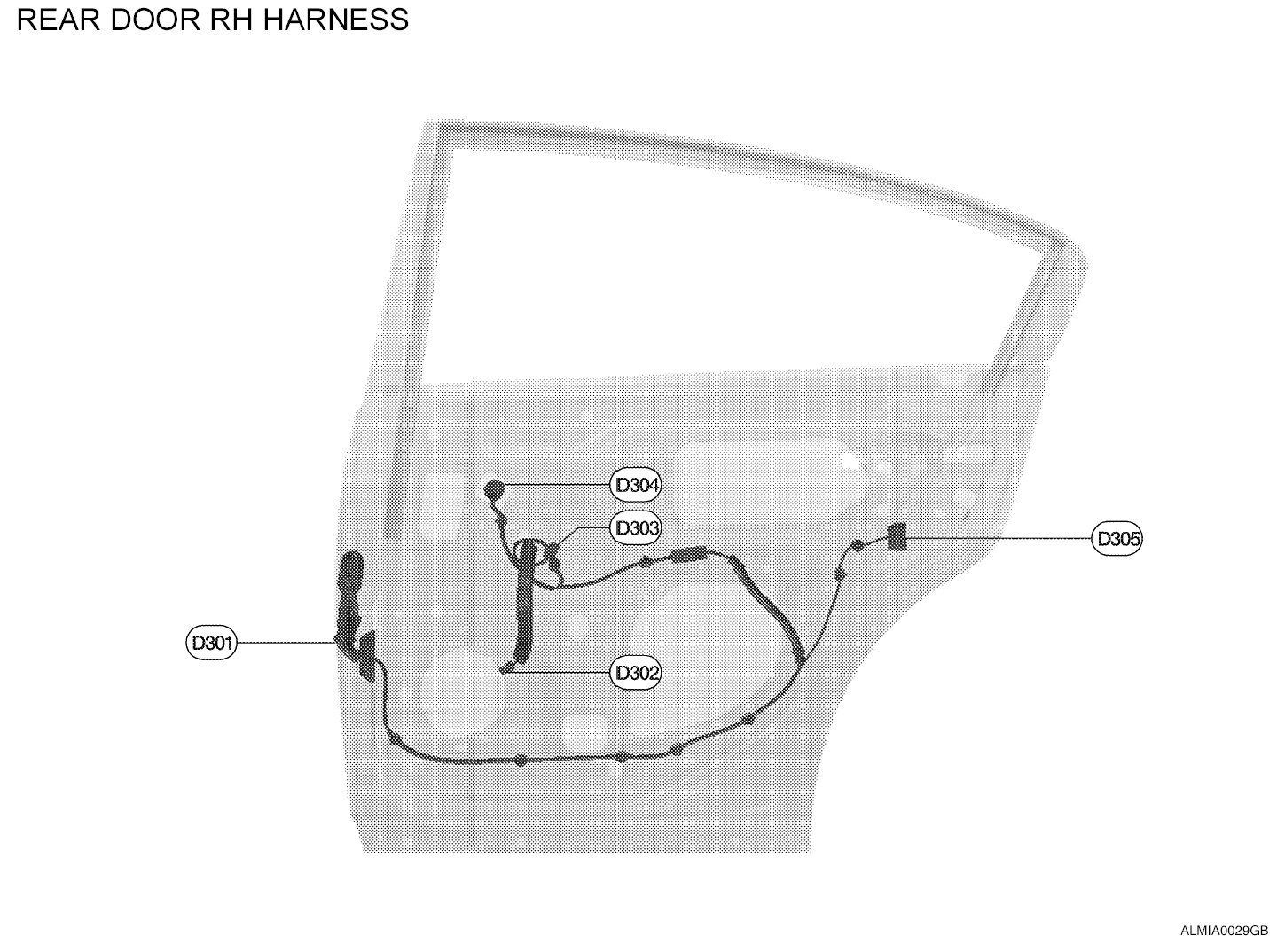

REAR DOOR RH HARNESS
