CHARGING SYSTEM
Wiring Diagram - Sedan

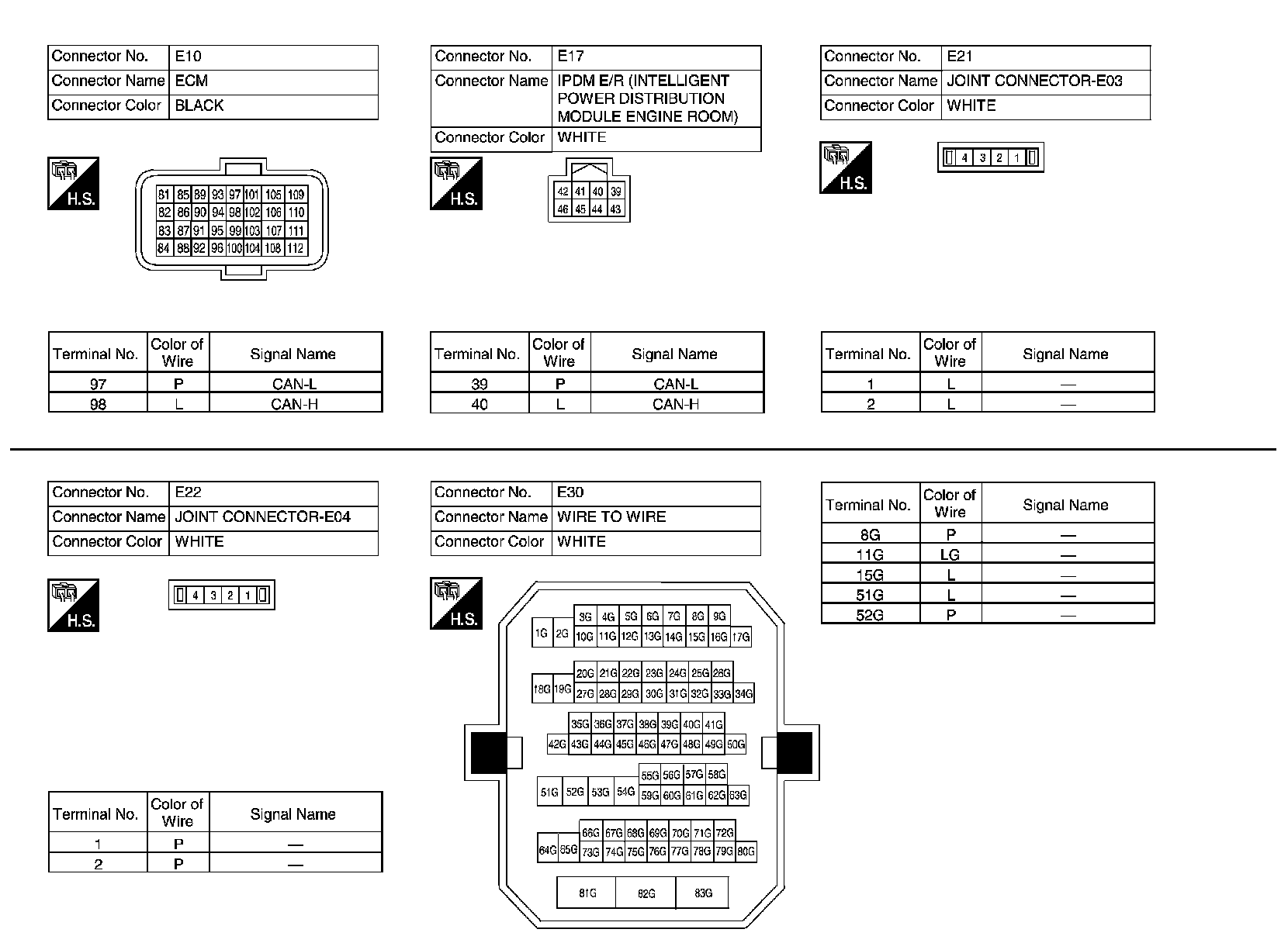

Charging System - Part 1:

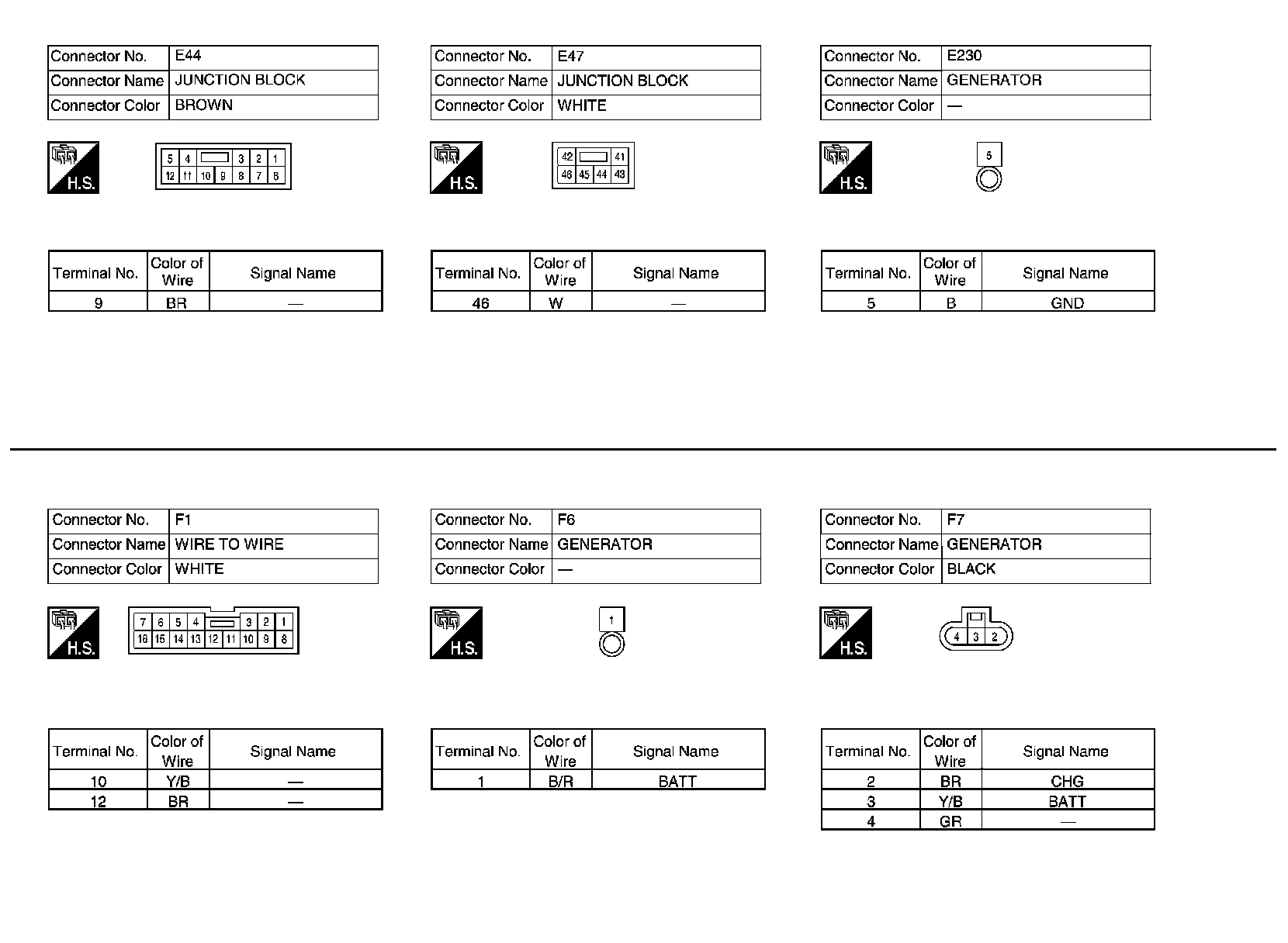

Charging System - Part 2:

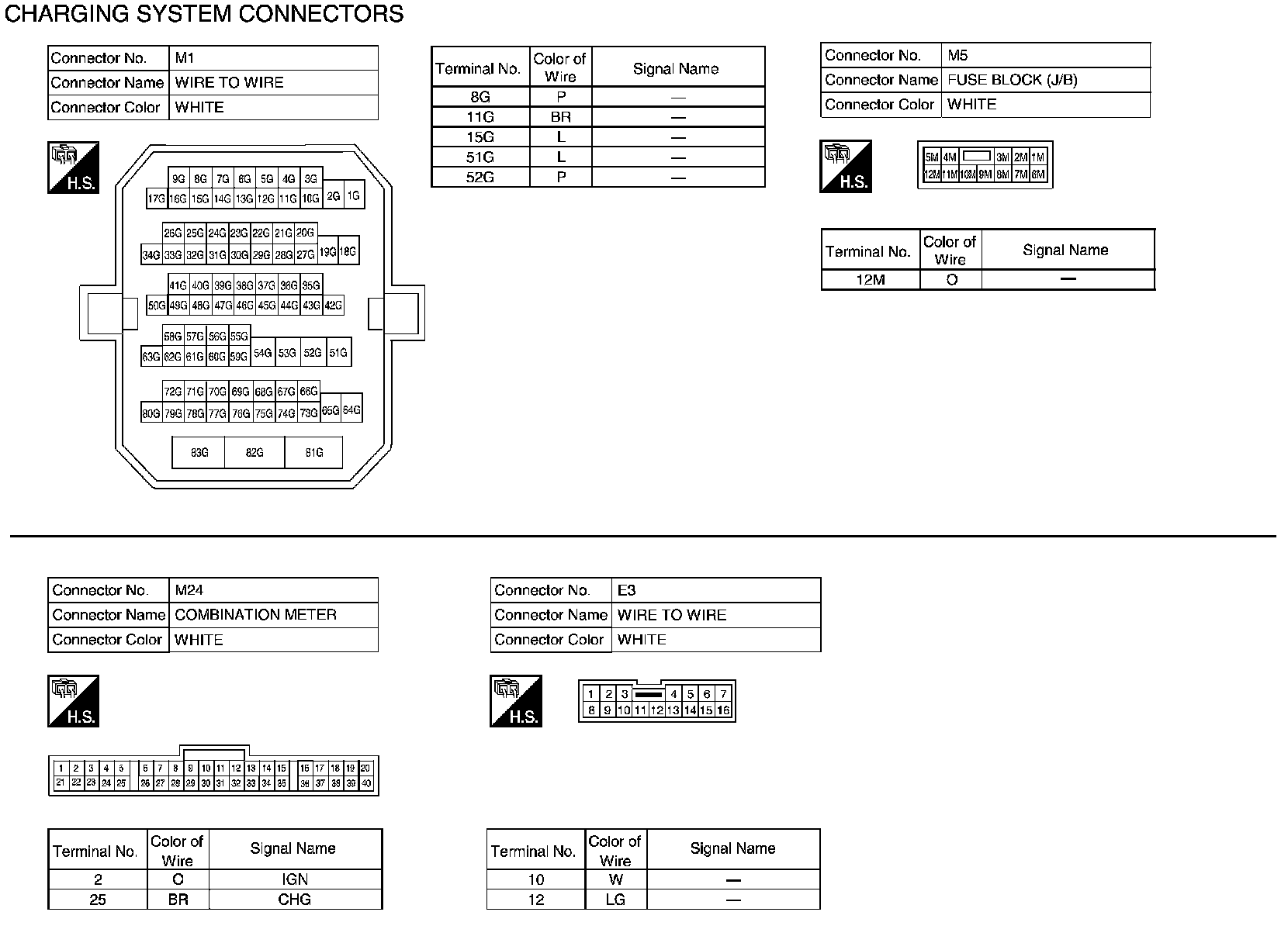

Charging System - Part 3:
Charging System - Part 4:
Charging System - Part 5:
